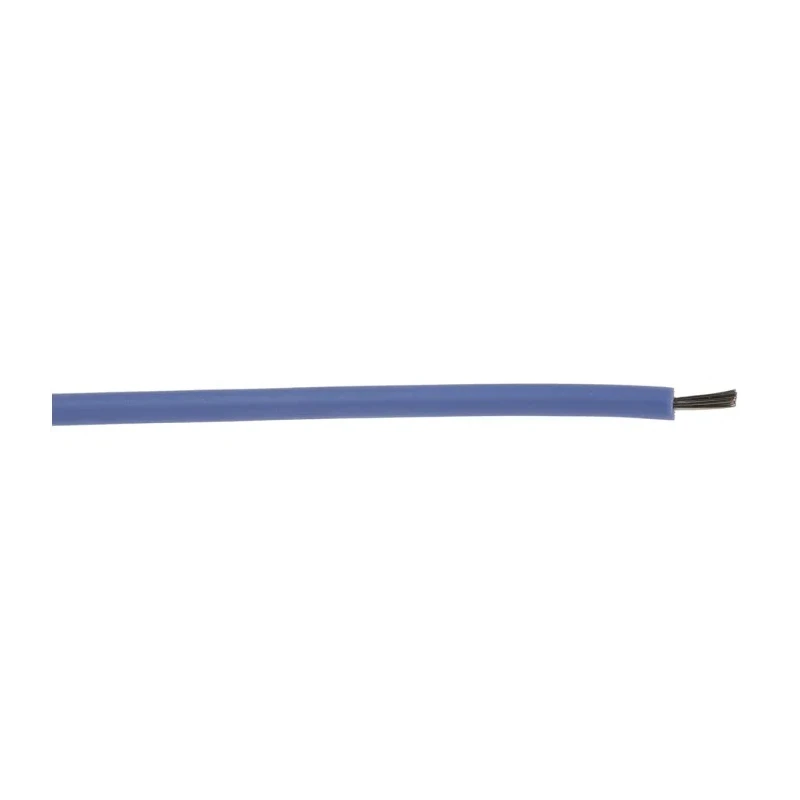

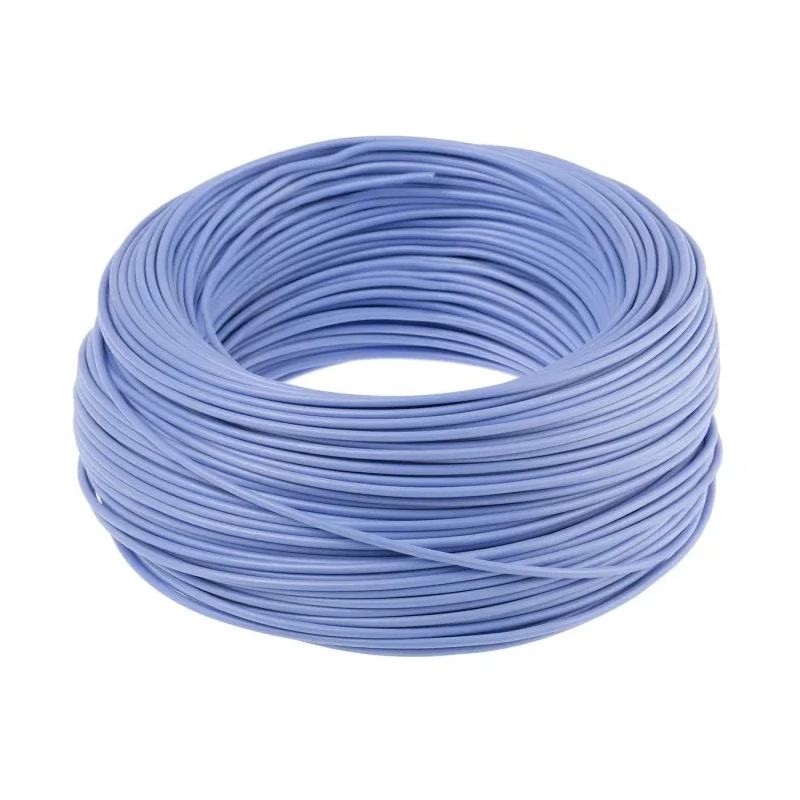

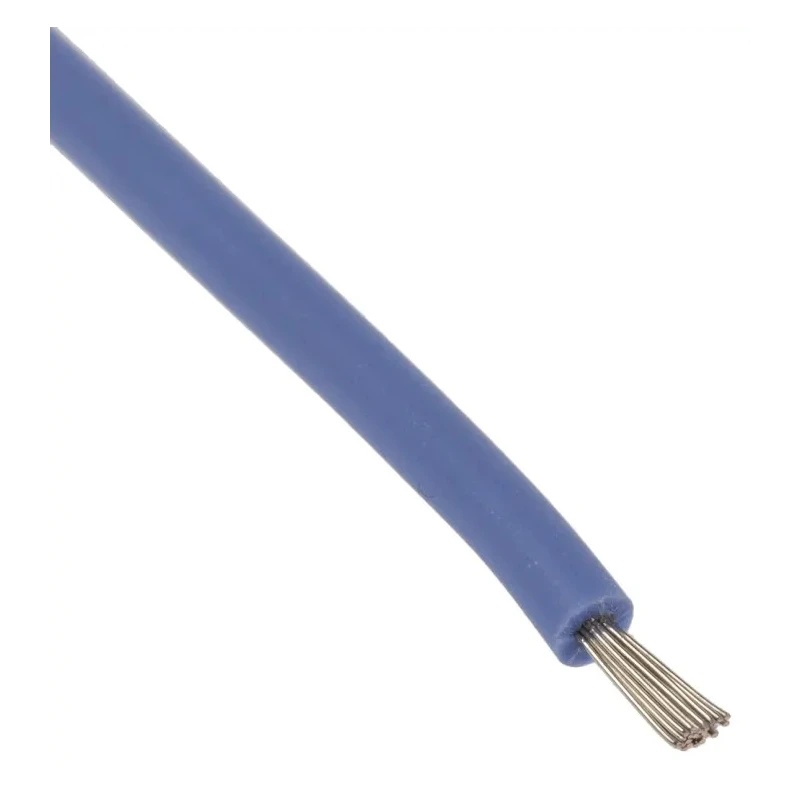

Lapp OLFLEX HEAT 180 SiF Series Blue 0.75 mm² Hook Up Wire, 19 x 0.25 mm, 100 m, Silicone Rubber, 49002
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 49002 |
| Cable Length | 100m |
| Series | OLFLEX HEAT 180 SiF |
| Outside diameter | 2.4mm |
| Maximum Operating Temperature | 180°C |
| Conductor Material | Tin Copper Wire |
| Sub Type | Silicone Wire |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Silicone Rubber |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-4490Brand: LappManufacturers Part No.: 49002Distrelec Article No.: 30158390 |
| Jacket Colour | Blue |
| Number of Strands | 19 |
| Core Strands | 19 x 0.25mm |
| Size of Strands | 0.25mm |
Key Features
- The cable has a cross sectional area of 0.75 mm² with 19 strands of 0.25 mm each.
- It features silicone rubber jacket making it flame retardant and halogen-free.
- Suitable for operating temperatures ranging from -50°C to 180°C.
- Designed with tin copper conductor wire ensuring good conductivity and corrosion resistance.
- The cable diameter measures 2.4 mm, with a minimum bending radius of 6 times the cable diameter for fixed installations.
- It is resistant to oils, fats and various chemical substances for industrial use.
- Ideal for HVAC systems, furnace construction, thermal heating elements, lighting technology, and transformer manufacturing.
- The product conforms to IEC 60754, IEC 60332 fire retardant standards for safety and performance.
Product Description
Lapp 49002 Hook Up Wire is part of the OLFLEX HEAT 180 SiF Series, featuring a blue silicone rubber jacket and 0.75 mm² cross sectional area. It is constructed with 19 strands of 0.25 mm tin copper wire, providing excellent flexibility and strength, suitable for rigorous industrial environments.
This hook up wire is designed specifically for high temperature applications up to 180°C, withstanding minimum temperatures down to -50°C, making it highly suitable for use in HVAC systems, furnace construction, thermal heating elements, lighting technologies, and manufacturing of transformers and generators.
The silicone rubber insulation is halogen-free according to IEC 60754-1 and flame retardant as per IEC 60332-1-2 standards, ensuring enhanced safety by reducing harmful gases and fire propagation. The cable is also resistant to various oils and chemical substances, providing durability in harsh industrial conditions. It supports voltage ranges of 300 to 500 volts and has an outside diameter of 2.4 mm.
The cable’s minimum bending radius is six times its diameter when fixed, enabling easy installation in compact spaces. It comes coiled and shrink wrapped without a reel for easier handling and storage.
The cable possesses excellent temperature resistance for thermal stability. Designed with cold resistance for low temperature durability. Resistant to oils and chemical substances commonly found in industrial environments.
Halogen-free construction supports safer installations adhering to recognized standards. Flame retardant properties meet stringent fire safety requirements. Flexible stranded conductor provides strength and ease of installation.
Wide voltage rating from 300 V to 500 V. Ideal for use in HVAC, furnace construction, lighting, and transformer manufacturing. Complies with IEC and EN standards for corrosivity and fire behaviour. Convenient packaging with shrink wrap eliminates the need for reels.
This OLFLEX HEAT 180 SiF Hook Up Wire by Lapp is engineered for demanding industrial and electrical applications, ensuring reliable performance in high temperature and chemically challenging environments. For more industrial wire and cable solutions, browse our extensive electrical cables collection at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 180°C.
The cross-sectional area of this hook up wire is 0.75 mm².
The minimum bending radius for fixed installations is six times the cable diameter, which is 2.4 mm.
It is constructed with tin copper wire, providing good conductivity and corrosion resistance.
This model supports voltage ranges of 300 to 500 volts.
The length of this hook up wire is 100 meters.
The silicone rubber jacket makes it resistant to oils, fats, and various chemical substances, suitable for industrial use.
Yes, the silicone rubber insulation is halogen-free according to IEC 60754-1 standards.
The outside diameter of this hook up wire is 2.4 mm.
This model is ideal for use in HVAC systems, furnace construction, thermal heating elements, lighting technology, and transformer manufacturing.
It conforms to IEC 60754 and IEC 60332 fire retardant standards for safety and performance.
The country of origin for this wire is Germany.
