Lapp OLFLEX HEAT 180 SiF Series Blue 0.5 mm² Hook Up Wire, 19 x 0.25 mm, 100 m, Silicone Rubber, 300/500V, 180°C 48002

Lapp 48002 OLFLEX HEAT 180 SiF Series Blue 0.5 mm² Hook Up Wire is a single core cable engineered for environments requiring high temperature tolerance and electrical reliability. Its silicone rubber insulation provides exceptional resistance to heat up to 180°C, making it ideal for harsh industrial applications.

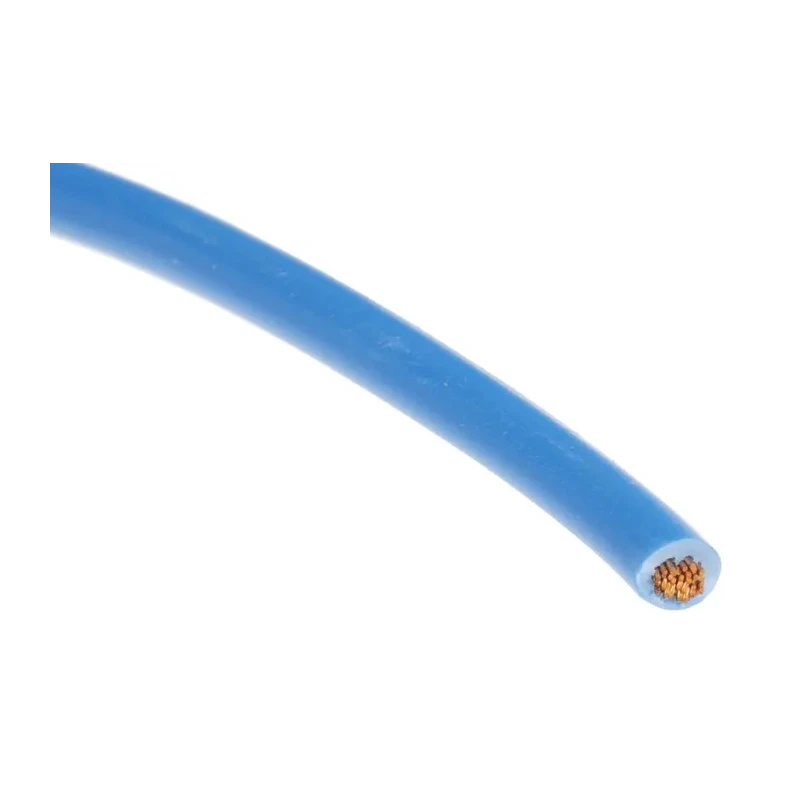

The wire comprises 19 strands of 0.25 mm tin copper conductors, offering high flexibility and resistance to bending fatigue. The 0.5 mm² cross sectional area and rated voltage of 300 to 500 volts support efficient power transmission in various electrical circuits.

Designed to be halogen free and flame retardant according to IEC 60754 and IEC 60332 standards, it ensures low toxicity and smoke generation in case of fire. The cable’s blue silicone rubber jacket further resists oils, fats, and chemical substances, extending durability in demanding settings.

The operating temperature range of -50°C to +180°C with a minimum bending radius of 6 times the cable diameter allows versatility in installation including fixed mountings and thermal equipment wiring.

Applications include HVAC systems, thermal and heating elements, furnace construction, generator and transformer manufacturing, and lighting technology. The flexibility of stranded construction provides ease of handling and installation compared to solid wires.

High temperature resistant silicone insulation supports continuous operation at 180°C. Stranded conductor construction ensures superior mechanical flexibility. Flame retardant and halogen free as per relevant IEC and EN standards for safety compliance.

Corrosion resistant tin copper conductor material improves longevity in harsh environments. Suitable for industrial and automation wiring, lighting, and heating system installations. Blue jacket color for easy identification in wiring assemblies.

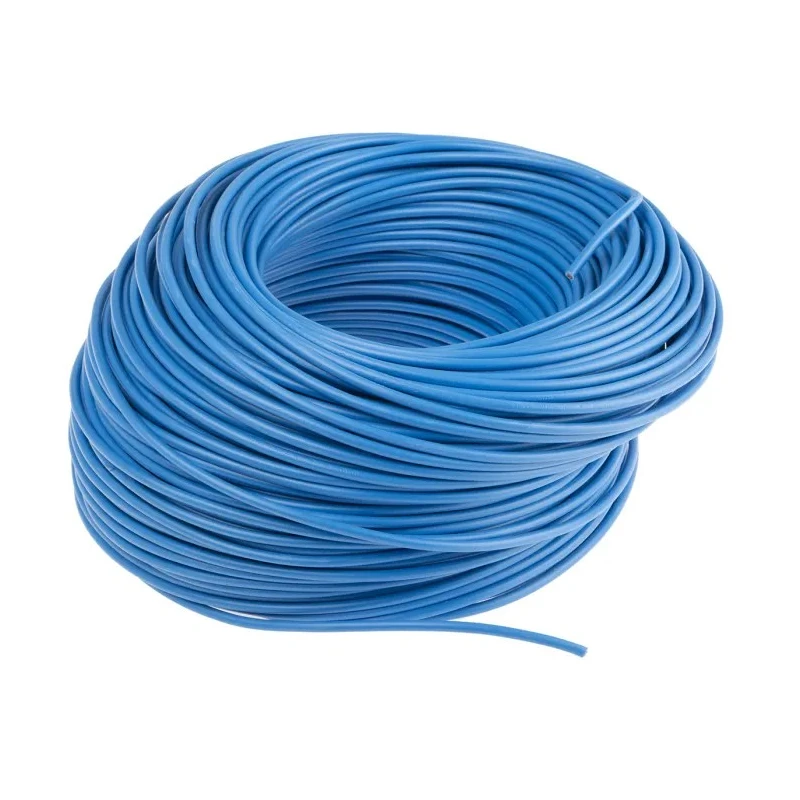

100 meter length per coil, supplied shrink wrapped for protection during transport and storage. Minimum bending radius suitable for curved or confined installations without conductor damage. Halogen-free construction reduces corrosive gas emission in fire situations.

This cable is an excellent choice for specialists requiring reliable, high temperature cables for industrial automation, HVAC, furnace manufacturing, and transformer applications. Browse our extensive range of wires and cables for complementary products to support your electrical installations.
