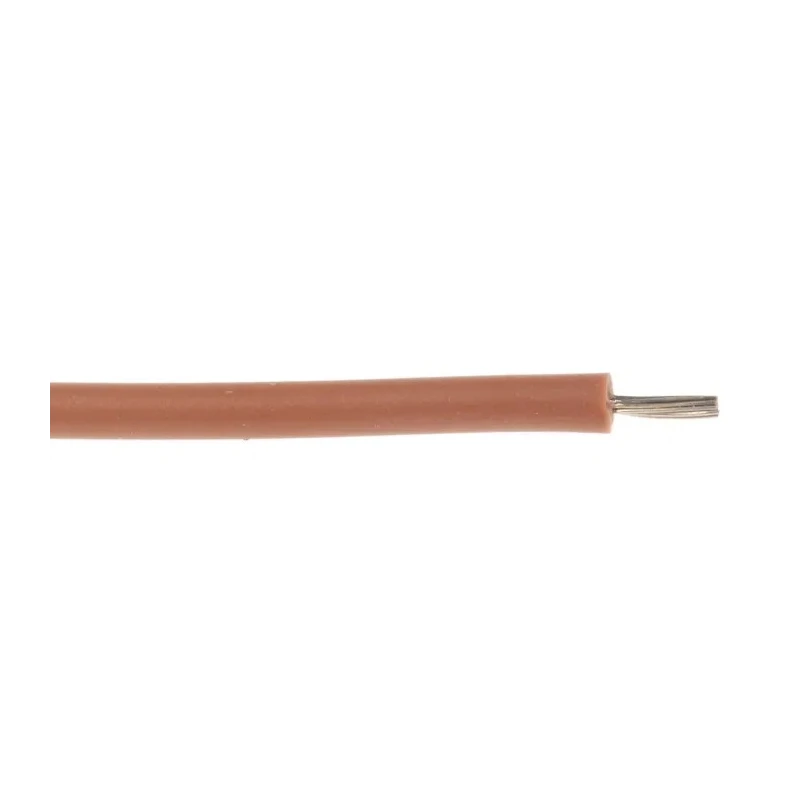

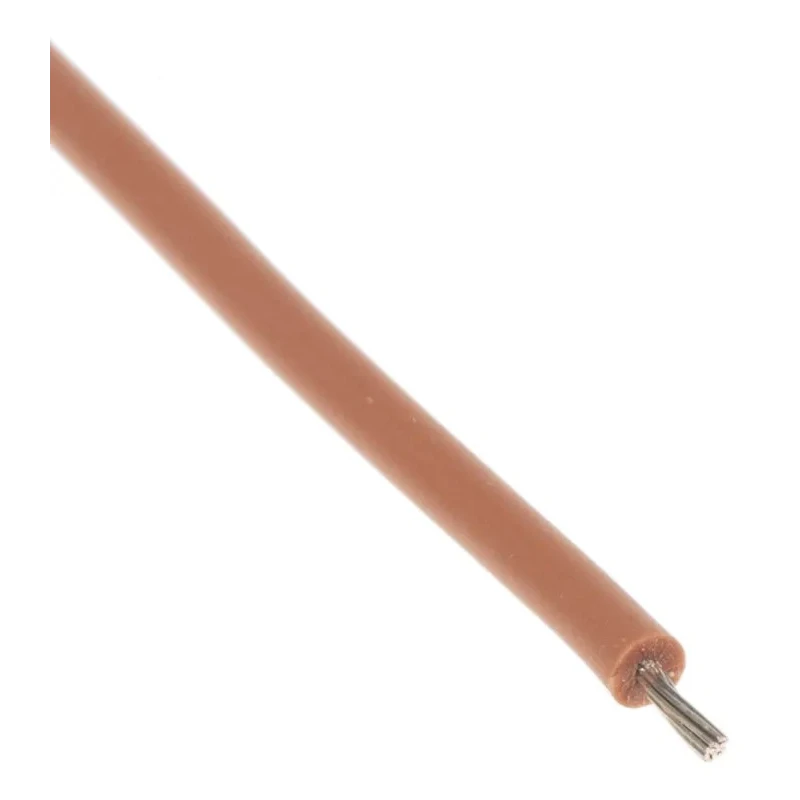

Lapp OLFLEX HEAT 180 SiF Series Brown 0.25 mm² Hook Up Wire 14 x 0.15 mm Conductor 100 m 300/500 V Silicone Rubber 47003

Lapp 47003 OLFLEX HEAT 180 SiF Series Brown 0.25 mm² Hook Up Wire is a high-performance single core cable featuring silicone rubber insulation that withstands maximum operating temperatures of 180°C and minimum temperatures of -50°C. This silicone wire ensures durability and flexibility in demanding temperature-extreme environments.

The conductor is composed of 14 fine tin copper strands each measuring 0.15 mm, which enhance the cable's flexibility and electrical conductivity. The cable length of 100 meters with an outer diameter of 1.9 mm enables versatile electrical installation options.

This hook up wire meets industrial safety standards by being halogen-free to IEC 60754-1 and exhibiting flame retardancy as per IEC 60332-1-2, making it ideal for applications requiring enhanced fire safety and low corrosivity from combustion gases.

The cable operates safely under voltages of 300 V and 500 V, and the silicone rubber jacket protects against exposure to oils, fats, and chemicals common in industrial and manufacturing environments. The recommended minimum bending radius is 6 times the cable diameter for fixed applications to ensure longevity.

Applications extend across HVAC systems, thermal and heating element wiring, furnace constructions, as well as generator and transformer manufacturing. The product is also widely used in lighting technologies benefiting from its material and temperature resistances.

Excellent temperature resistance from -50°C to 180°C. Flexible 14 x 0.15 mm tin copper conductor strands. Halogen-free and flame retardant according to IEC standards. Suitable for 300 V and 500 V electrical systems. Durable silicone rubber jacket resists oils and chemicals.

Minimum bending radius 6 x cable diameter for fixed installations. Ideal for HVAC, furnace, generator, transformer, and lighting.

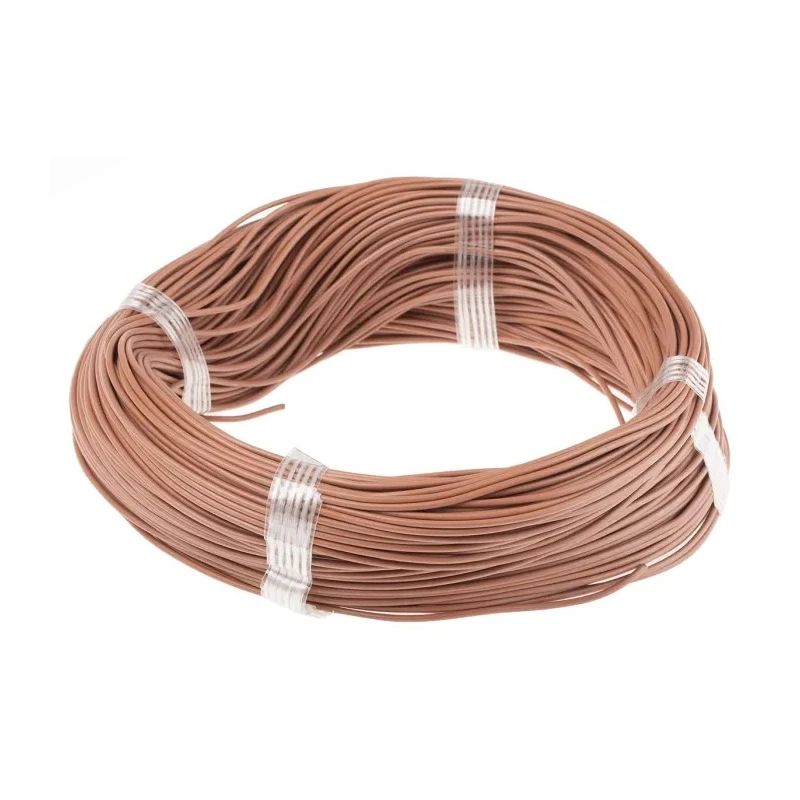

This high-quality Lapp Hook Up Wire, model 47003, ensures safety and reliability in harsh operating conditions. It is supplied coiled and shrink wrapped for ease of handling and storage, but not on a reel.
