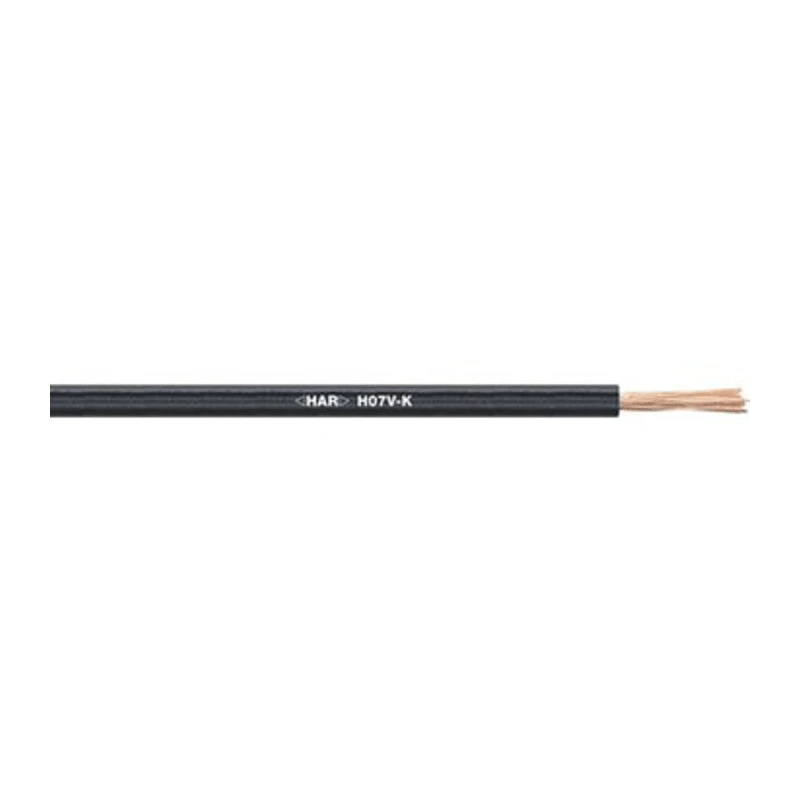

Lapp H07V-K Series Black 2.5 mm² Hook Up Wire, 50/30 AWG Strands, 100 m Length, 450/750V, Polyvinyl Chloride Jacket, 4520012
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 450, 750V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 2.5mm² |
| Model | 4520012 |
| Cable Length | 100m |
| Series | H07V-K |
| Outside diameter | 3.7mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper |
| Sub Type | Single Core |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE marked, HAR acc. to EN 50525-2-31 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-4418Brand: LappManufacturers Part No.: 4520012Distrelec Article No.: 30049629 |
| Jacket Colour | Black |
| Number of Strands | 50 |
| Core Strands | 50 x 30AWG |
| Size of Strands | 30AWG |
Key Features
- The wire features a single core with bare copper conductor strands for high conductivity.
- The jacket material is flame retardant polyvinyl chloride providing electrical insulation and fire safety.
- It supports an operating temperature range from -40°C minimum to 70°C maximum.
- The wire has an outside diameter of 3.7 mm, enabling easy installation in compact spaces.
- The black color sheath follows standard color coding conventions for easy identification.
- Certified to CE and HAR standards according to EN 50525-2-31 for electrical safety compliance.
- Suitable for demanding industrial, medical, transport, and electric motor wiring applications.
- Comes on a 100 m reel, facilitating cut-to-length usage as required.
Product Description
Lapp 4520012 H07V-K Series Black Hook Up Wire is a premium single core cable designed for reliable electrical connections in industrial and commercial environments. This 2.5 mm² CSA wire consists of 50 strands of 30 AWG bare copper conductor, offering excellent flexibility and electrical conductivity.
The cable features a flame retardant polyvinyl chloride jacket, rated for voltages of 450 and 750 volts, making it suitable for a wide range of electrical installations in equipment and machinery.
It supports a wide temperature range from -40°C to 70°C maximum operating temperature, ensuring durability in varying ambient conditions. The compact 3.7 mm outside diameter allows installation in tight or complex wiring configurations.
The black jacket follows industry color-coding standards for easy electrical phase identification. This cable complies with CE marking and HAR certification, conforming to EN 50525-2-31 and IEC 60332-1-2 flame retardancy standards, ensuring safety in fire hazard conditions.
Ideal for medical and dental equipment wiring, transport and logistics applications, as well as electric motor connections, this hook-up wire offers versatility and high performance.
The product is supplied on a reel of 100 meters, allowing users to cut the wire to required lengths using standard wire cutting tools, simplifying installation and minimizing waste.
The wire features a single core with bare copper conductor strands for high conductivity. The jacket material is flame retardant polyvinyl chloride providing electrical insulation and fire safety. It supports an operating temperature range from -40°C minimum to 70°C maximum.
The wire has an outside diameter of 3.7 mm, enabling easy installation in compact spaces. The black color sheath follows standard color coding conventions for easy identification. Certified to CE and HAR standards according to EN 50525-2-31 for electrical safety compliance.
Suitable for demanding industrial, medical, transport, and electric motor wiring applications. Comes on a 100 m reel, facilitating cut-to-length usage as required.
Explore more wires and cables in the Wires & Cables category available on EnvMart, where industrial-grade electrical solutions are provided with detailed specifications and professional support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire is rated for voltages of 450 and 750 volts, making it suitable for various electrical installations.
This model has a cross-sectional area of 2.5 mm², which is suitable for a range of electrical applications.
The maximum operating temperature for this wire is 70°C, allowing it to function effectively in high-temperature environments.
The minimum operating temperature is -40°C, ensuring performance in low-temperature conditions.
The outside diameter of the wire is 3.7 mm, which facilitates installation in compact spaces.
This hook up wire consists of 50 strands of 30 AWG bare copper conductor, providing flexibility and conductivity.
The jacket is made from flame retardant polyvinyl chloride, providing electrical insulation and fire safety.
It is CE marked and HAR certified according to EN 50525-2-31, ensuring compliance with electrical safety standards.
The wire comes in a length of 100 meters, allowing for cut-to-length usage as required.
This model is suitable for demanding industrial, medical, transport, and electric motor wiring applications.
The conductor material is bare copper, which ensures high conductivity and flexibility.
The wire is manufactured in Germany, adhering to high production standards.
