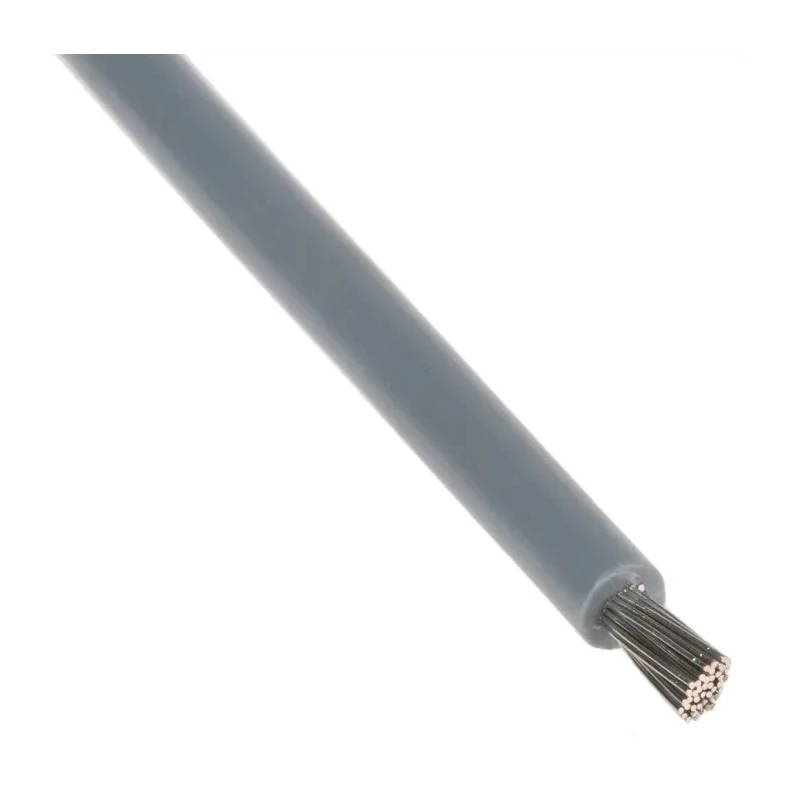

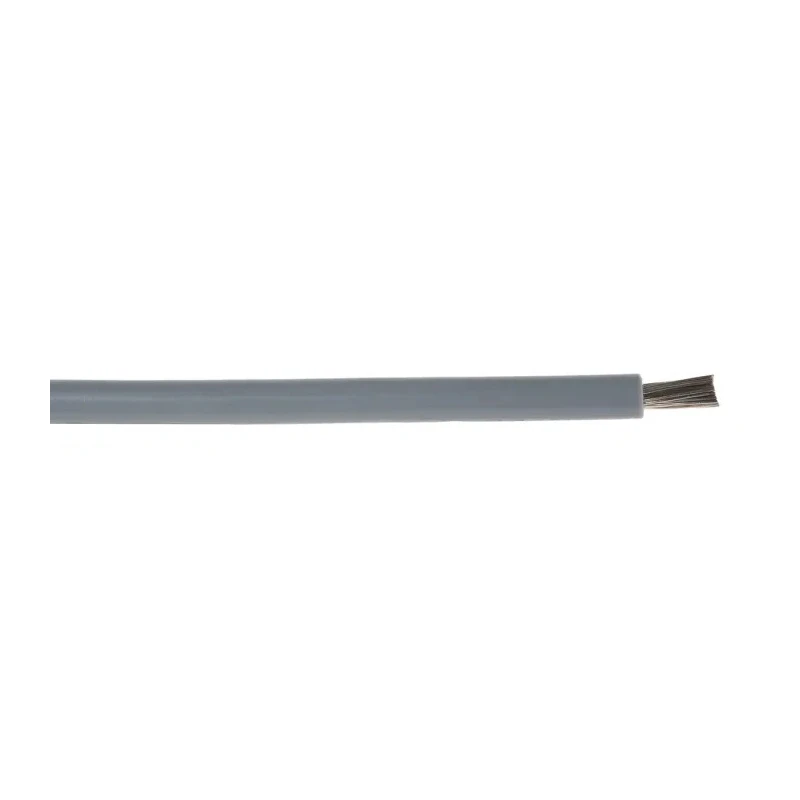

Lapp MULTI-STANDARD SC 2.1 Series Grey 2.5 mm² Hook Up Wire 100m PVC Jacket 450/600/750V 4160506
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450, 600, 750V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 2.5mm² |
| Model | 4160506 |
| Cable Length | 100m |
| Series | MULTI-STANDARD SC 2.1 |
| Outside diameter | 3.7mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Tin Plated Copper |
| Sub Type | UL1015 |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-4298Brand: LappManufacturers Part No.: 4160506 |
| Jacket Colour | Grey |
Key Features
- Features a flexible, flame-retardant grey PVC jacket for reliable insulation.
- Conductor made from tin plated copper strands for excellent conductivity and corrosion resistance.
- Suitable for industrial machine wiring and control cabinet installations.
- Flame retardant according to IEC 60332-1-2 and UL VW-1, CSA FT1 standards.
- Withstands operating temperatures from -40°C to 70°C for safe use in varied conditions.
- Complies with UL1015, HAR, CSA, and other international standards.
- Designed for use in automation, process control, and internal device wiring.
- Offers oil resistance for extended durability in industrial environments.
Product Description
Lapp 4160506 MULTI-STANDARD SC 2.1 Series Grey 2.5 mm² Hook Up Wire is a high-quality single core cable designed for power and control applications rated at 450, 600, and 750 volts. It features a flexible, tin plated copper conductor with a flame retardant polyvinyl chloride (PVC) jacket ensuring reliable performance in industrial environments.
This cable is suitable for wiring inside control cabinets, industrial machines, and equipment in accordance with NFPA 79 standards. It exhibits excellent oil resistance and operates safely within a temperature range of -40°C to 70°C, with a maximum continuous operating temperature of 90°C and thermal endurance of 105°C for 15,000 hours.
The MULTI-STANDARD SC 2.1 series cable meets various recognized standards including UL1015, HAR (VDE), CSA TEW, and UL MTW, making it approved for use in North America and Europe. Its grey PVC jacket provides flame retardant properties according to IEC 60332-1-2 and UL VW-1 certifications.
This hook up wire is ideal for industrial automation, process control, field wiring, and internal device connections. It can be installed in suitable conduits and trunking systems, enhancing safety and organization in electrical installations.
Flexible and flame-retardant PVC jacket for protection and safety. Tin plated copper conductor offers durability and excellent conductivity. Certified to international standards for broad application range. Oil resistant and suitable for industrial machine wiring.
Operating temperature range from -40°C to 70°C ensures reliability. Available in 100 meter reels for efficient deployment. Compatible with SKINTOP CLICK cable glands for easy termination.

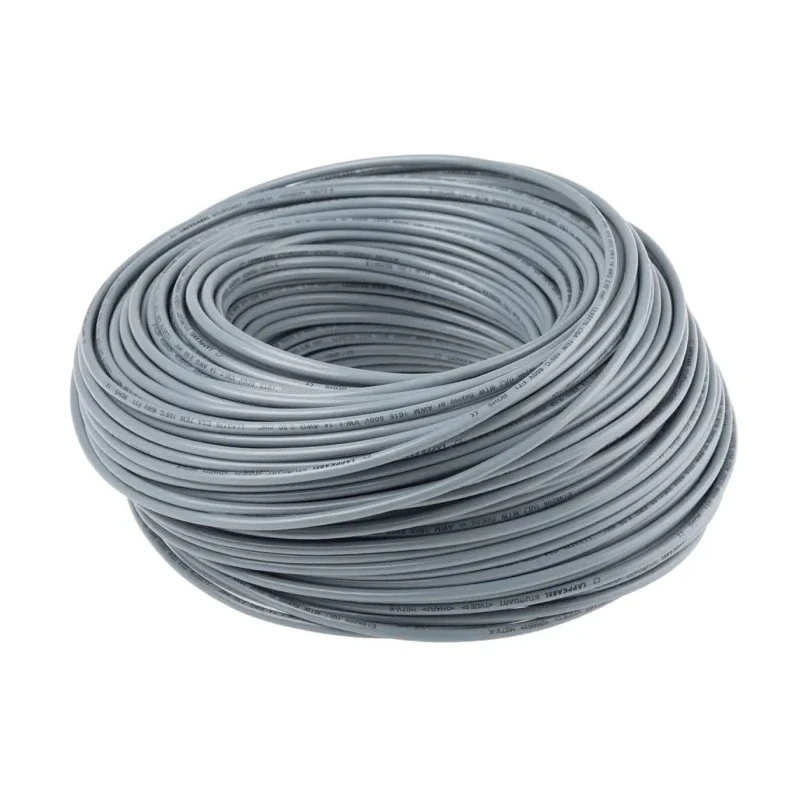

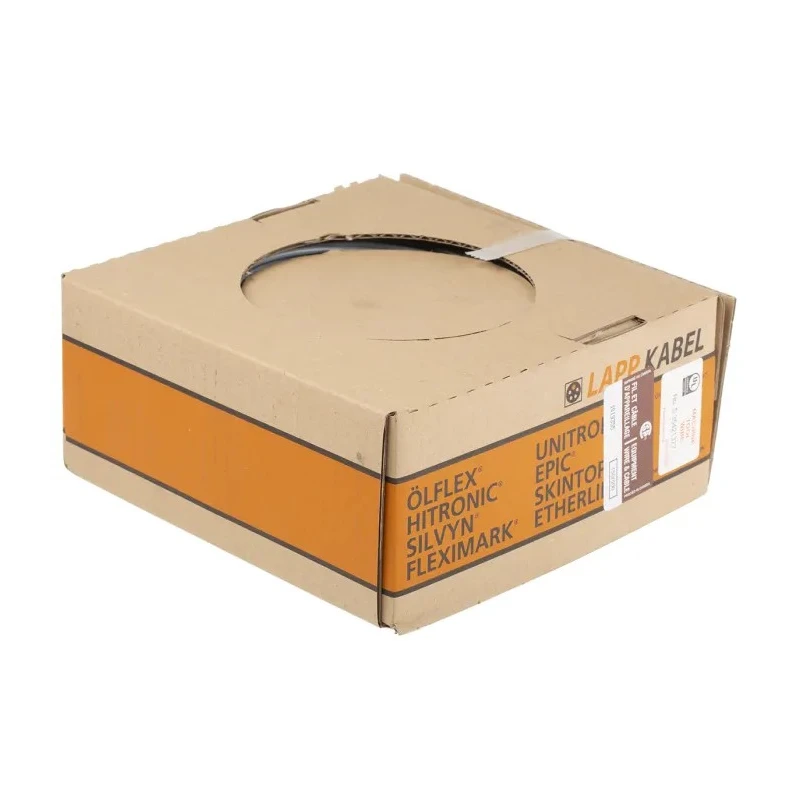

Set contains 1 reel of 100 meters of 2.5 mm² MULTI-STANDARD SC 2.1 grey Hook Up Wire with PVC jacket. Recommended for use in electrical panels, automation systems, and industrial equipment wiring.
Explore EnvMart's comprehensive range of electrical wires and cables for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for voltages of 450V, 600V, and 750V, making it suitable for various industrial applications.
The conductor is made from tin plated copper, which provides excellent conductivity and corrosion resistance.
The maximum operating temperature for this hook up wire is 70°C, with a thermal endurance of 90°C for continuous use.
This wire can operate safely at temperatures as low as -40°C, making it suitable for a wide range of environments.
The wire is available in a length of 100 meters, providing ample material for various installations.
It complies with several international standards including UL1015, HAR (VDE), CSA TEW, and UL MTW, ensuring broad application approval.
The wire features a grey polyvinyl chloride (PVC) jacket that is flexible and flame-retardant, providing reliable insulation.
The outside diameter of this hook up wire is 3.7 mm, which is important for installation considerations.
Yes, this model is designed for use in automation, process control, and internal device wiring, making it versatile for industrial applications.
The cross-sectional area of this hook up wire is 2.5 mm², which is relevant for determining current-carrying capacity.
Yes, it exhibits excellent oil resistance, enhancing its durability in industrial environments.
This hook up wire is manufactured in India, which is relevant for sourcing and compliance considerations.
