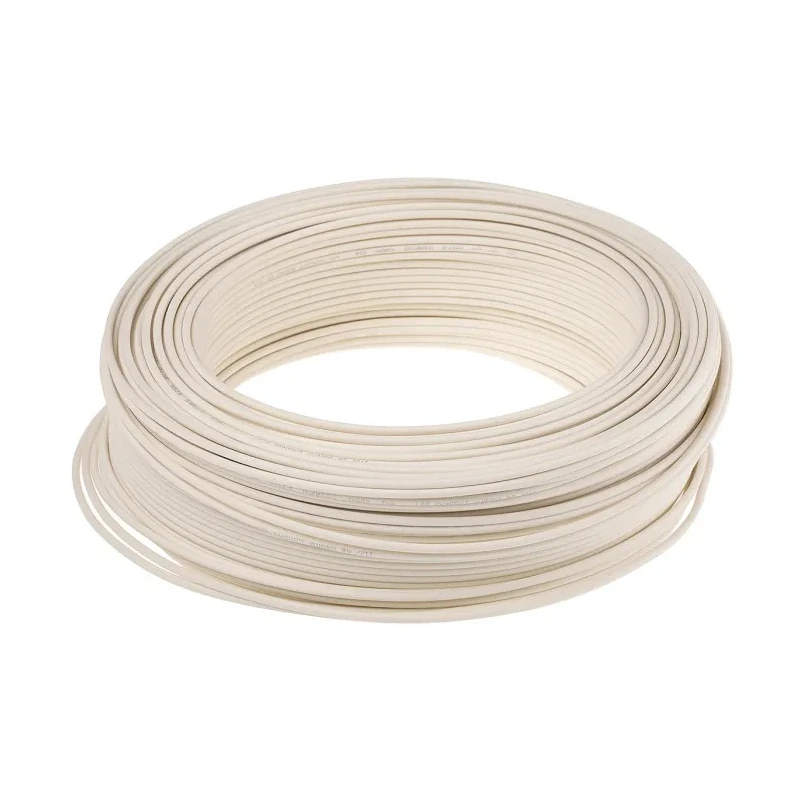

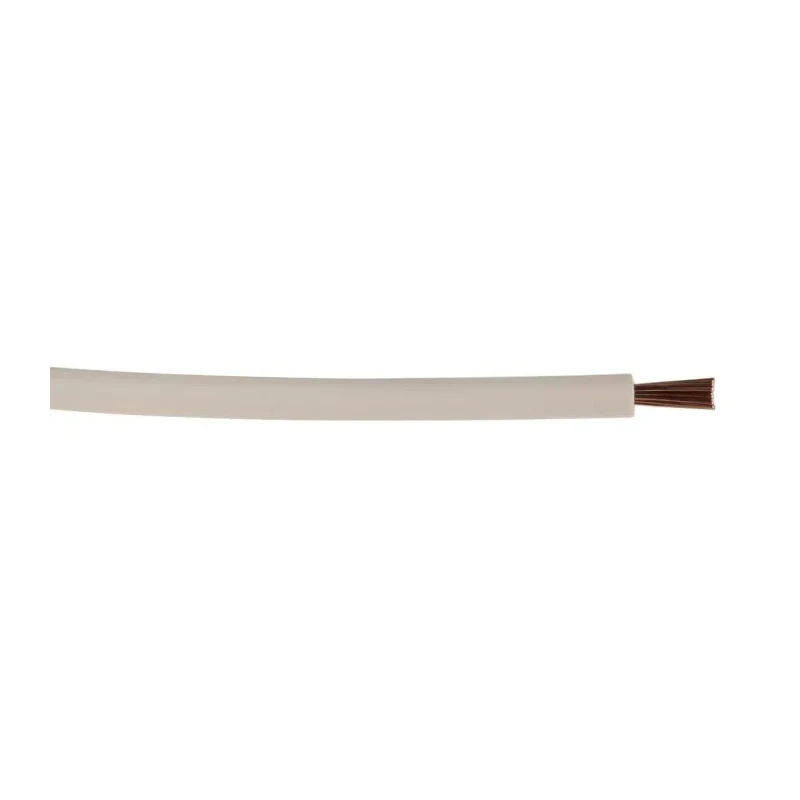

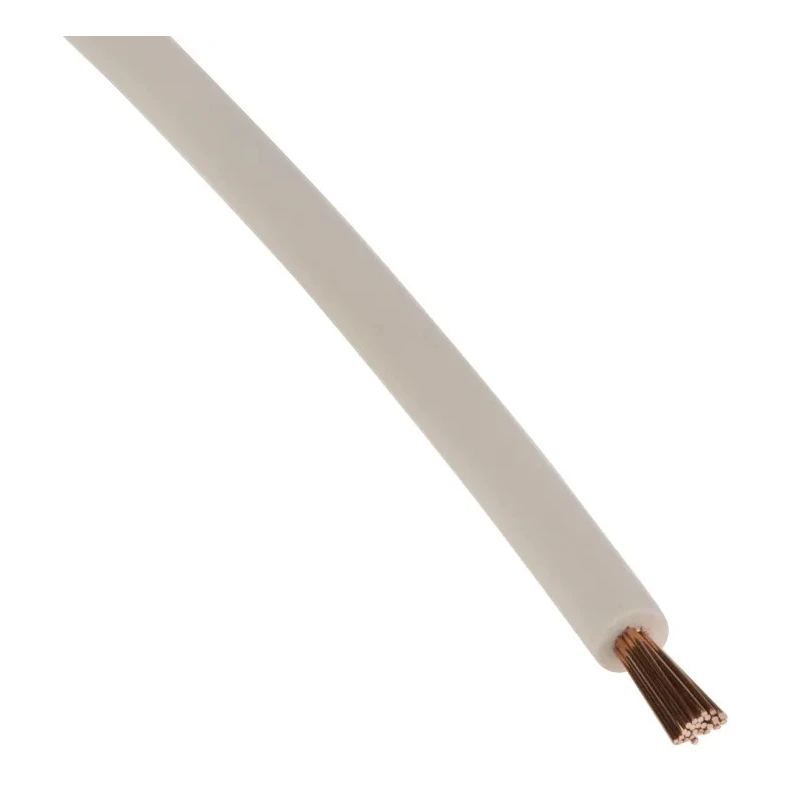

Lapp H05Z-K Series White 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked Insulation 4725053

Free Delivery in India | Lowest Global Shipping Charges

Lapp H05Z-K Series White 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked Insulation 4725053

Name: Lapp H05Z-K Series White 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked Insulation 4725053
Brand: Lapp
SKU: 359334
Price: 148.16 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	India
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	1mm²
Model	4725053
Cable Length	100m
Series	H05Z-K
Outside diameter	2.9mm
Maximum Operating Temperature	90°C
Conductor Material	Bare Copper
Sub Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Low Smoke Zero Halogen (LSZH) Cross Linked Insulation
Standards/Approvals	EAC, EN 50525-3-41, CE
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	763-7606Brand: RS PRO
Jacket Colour	White

Key Features

This wire features low smoke zero halogen (LSZH) insulation that reduces toxic gas emission during combustion.
Designed to operate safely at temperatures up to 90°C with voltage ratings of 300 and 500 volts.
Constructed with bare copper conductor for excellent electrical conductivity and flexibility.
The white jacket is flame retardant according to IEC 60332-1-2 and supports harsh industrial safety standards.
Ideal for installations in dry rooms, conduits, and sealed trunking, ensuring compliance with European harmonized standards.
The cable has an outside diameter of 2.9 mm and a cross-sectional area of 1 mm² for precise electrical capacity.
Suitable for industrial, railway, marine, power plant, and nuclear facility wiring applications.
Complies with EN 50525-3-41 and EAC certification standards, backed by CE markings.

Product Description

Lapp 4725053 Hook Up Wire is a high-quality electrical wire featuring 1 mm² cross-sectional bare copper conductor encased in white Low Smoke Zero Halogen (LSZH) cross linked insulation. This design ensures minimal hazardous emissions in case of fire, making it suitable for sensitive environments where safety is paramount.

The wire supports a voltage rating of 300 and 500 volts, with a maximum operating temperature of 90°C and a minimum operating temperature of -40°C. Its flame retardant jacket complies with IEC 60332-1-2 and EN 60332-1-2 fire behaviour standards.

Engineered as part of the H05Z-K series, this harmonized cable is ideal for wiring appliances and fittings and can be safely installed in dry rooms, conduits, and sealed trunking. The cable’s outside diameter of 2.9 mm allows for compact installation without sacrificing performance.

Typical applications include underground railways, ships, power plants, and nuclear facilities that require low smoke and halogen-free wiring solutions. It is certified under CE and EAC standards and meets stringent European harmonization requirements (HAR).

Low Smoke Zero Halogen cables like this one are essential for environments with limited ventilation or where fire safety is critical, as they emit less smoke and no halogen acids if burning, protecting people and equipment alike.

Low Smoke Zero Halogen (LSZH) jacket reduces toxic gas emission. Temperature range: -40°C to 90°C ensures wide operational conditions. Complies with flame retardant standards IEC 60332-1-2 and EN 60332-1-2. Voltage ratings of 300 V and 500 V for versatile industrial use.

Suitable for use in control cabinets, distribution boxes, and switchgear cabinetry. Certified for safe use in hazardous and sensitive industrial installations. Explore more electrical wiring and cable solutions through our Electronics & Electricals category for safe and reliable automation and wiring installations.
