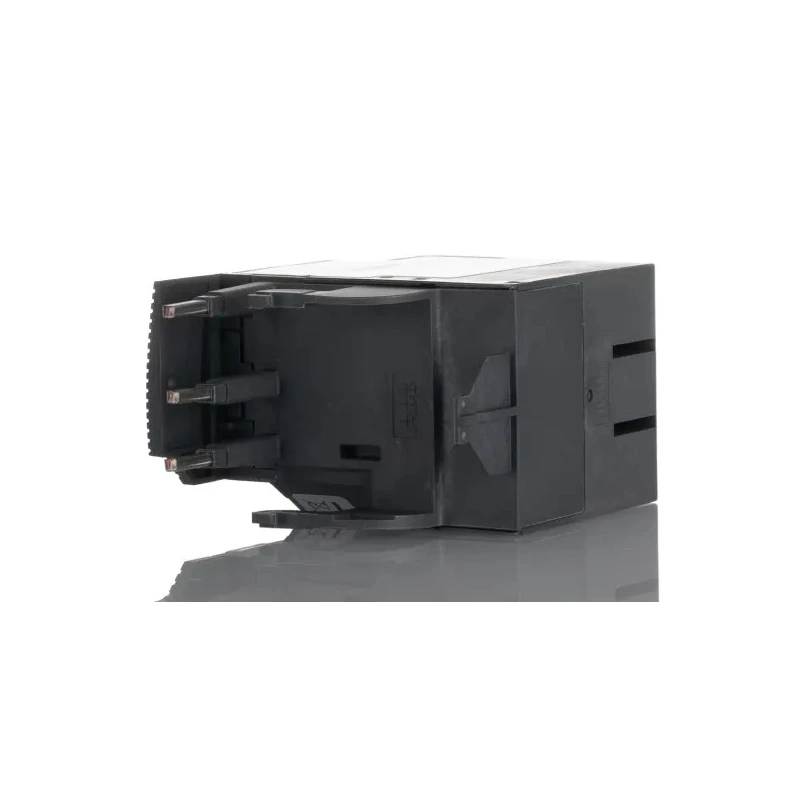

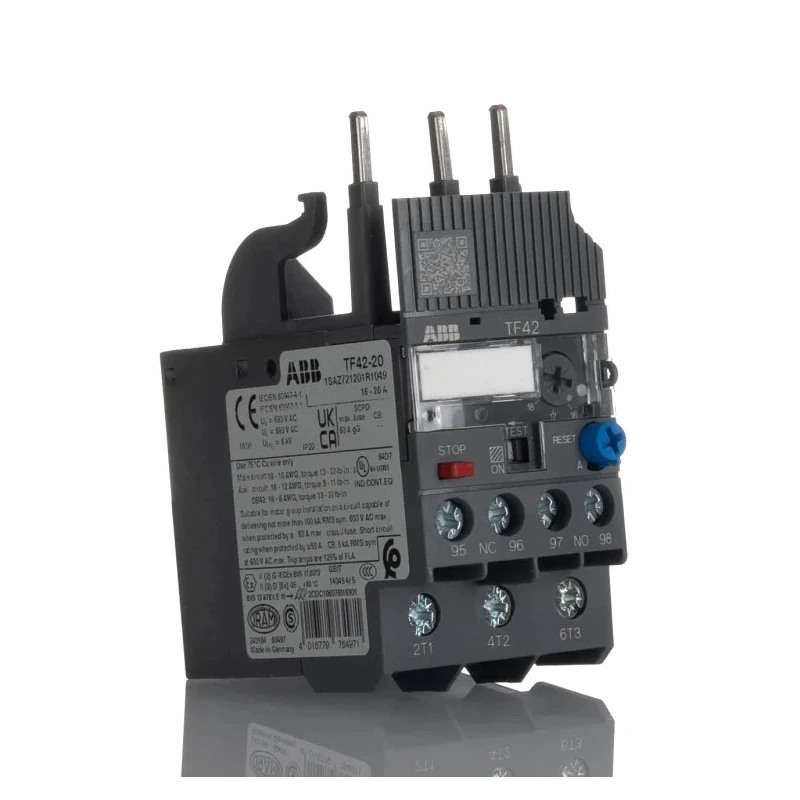

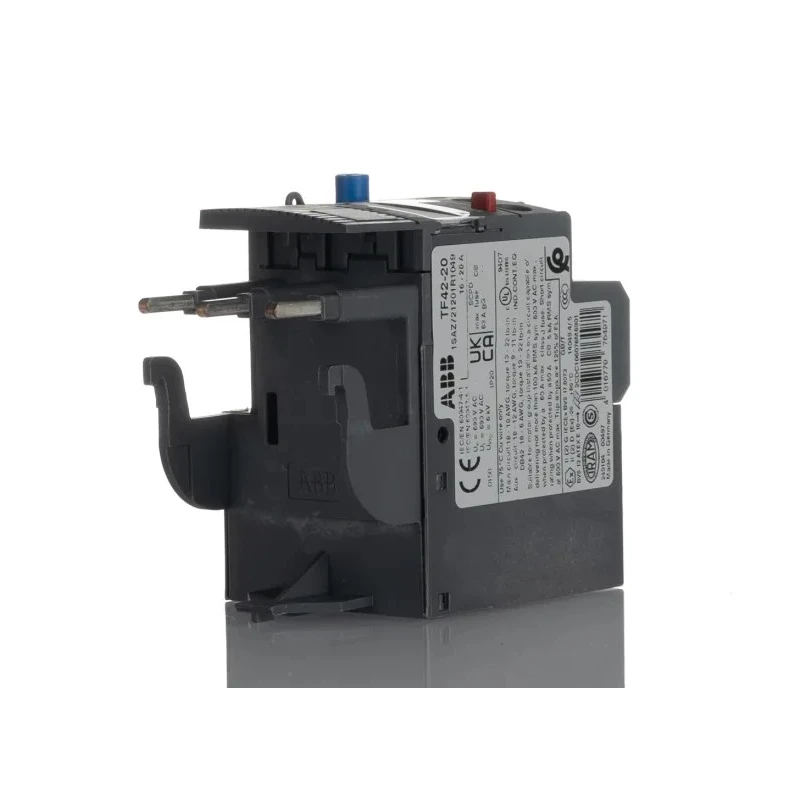

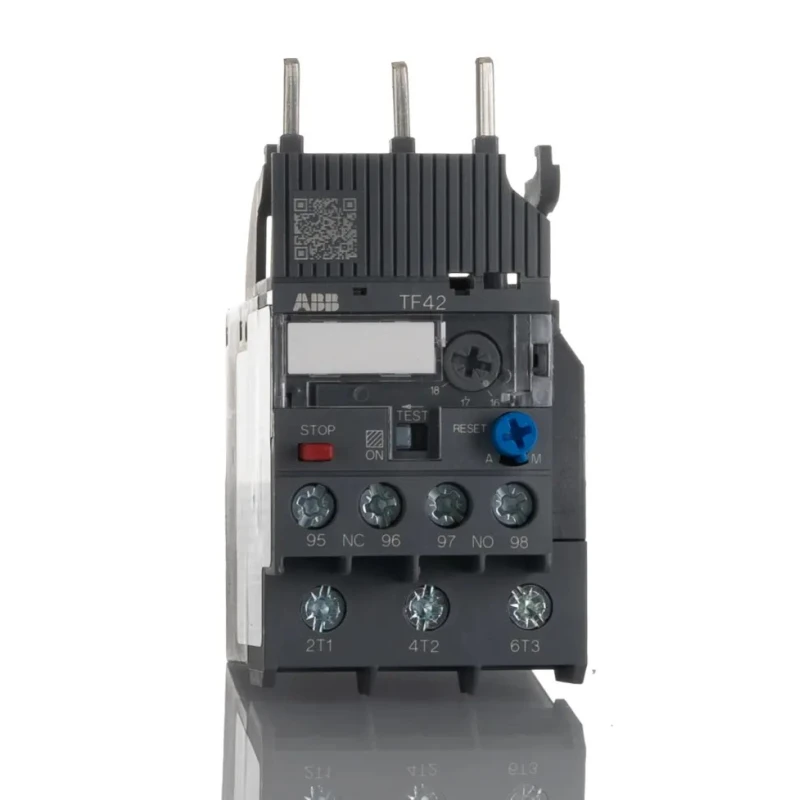

ABB Thermal Overload Relay 1 NO/1 NC 16A, 20 A F.L.C, 20A Contact Rating, 2.6W TF42



Category Thermal Overload Relay Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Length	88.3mm
Model	TF42
Depth	70.5mm
IP Rating	IP20
Width	45mm
Mount Type	Direct
Series	TF42
Power Rating	2.6W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	600V
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	711-6657Brand: ABBManufacturers Part No.: 1SAZ721201R1049 TF42-20
Contact Voltage	690V ac/dc
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	20A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	16, 20A
Adjustable Current Range	16 → 20 A

Key Features

Equipped with trip class 10 for reliable overload protection.
Detects phase loss to prevent motor damage.
Temperature compensated for operation between -25°C and 60°C.
Adjustable current range from 16 to 20 A for tailored motor protection.
Features automatic and manual reset methods for versatile use.
Trip-free mechanism ensures operational safety during critical conditions.
Status indication for clear operational visibility.
Direct mounting compatible with block contactors for easy installation.

Product Description

ABB TF42 Thermal Overload Relay model offers essential motor overload protection with a power rating of 2.6W and a flexible adjustable current range from 16 to 20 amperes. It is designed with 1 normally open and 1 normally closed contact to safeguard motors in industrial, manufacturing, and automation systems against overload and phase failure conditions.

This relay includes a trip class 10 for timely motor protection and features phase loss sensitivity to detect and respond to phase failures. The product operates reliably within a temperature range of -25°C to 60°C thanks to its temperature compensation capabilities. Users benefit from selectable automatic or manual reset functions, allowing flexible operation depending on application needs.

Included is a trip-free mechanism which ensures the device consistently interrupts the circuit under fault conditions to prevent motor damage. The relay offers clear status indication on its operational state, and its direct mounting design allows seamless integration with block contactors. Security is enhanced through sealable operating elements that deter tampering.

Ideal for inclusion in motor starter combinations used in electrical panels within industrial automation, manufacturing plants, and HVAC systems, the ABB TF42 relay is widely applicable for both indoor and outdoor installations. It meets multiple international standards including UL 508, IEC/EN 60947 series, and RoHS compliance.

Provides reliable overload and phase failure protection for motors. Adjustable current settings from 16 to 20 amperes to match motor specifications. Robust design suitable for varied industrial and commercial environments.

Complies with multiple global safety and performance standards. Seamless compatibility with AF range of contactors for integrated control solutions. Explore our range for more ABB Thermal Overload Relays and accessories, built for industrial and automation applications at EnvMart.
