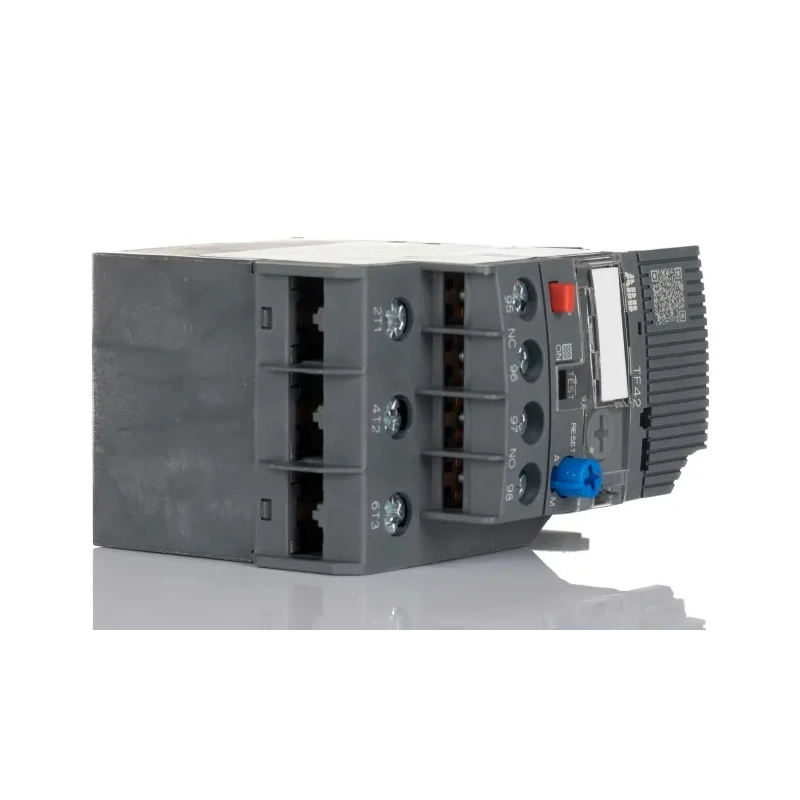

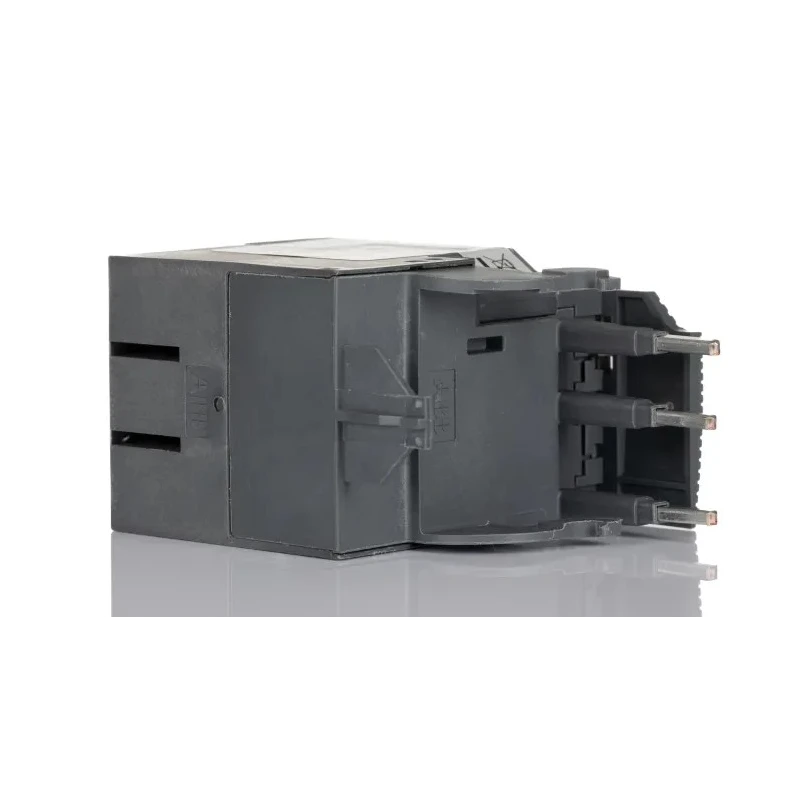

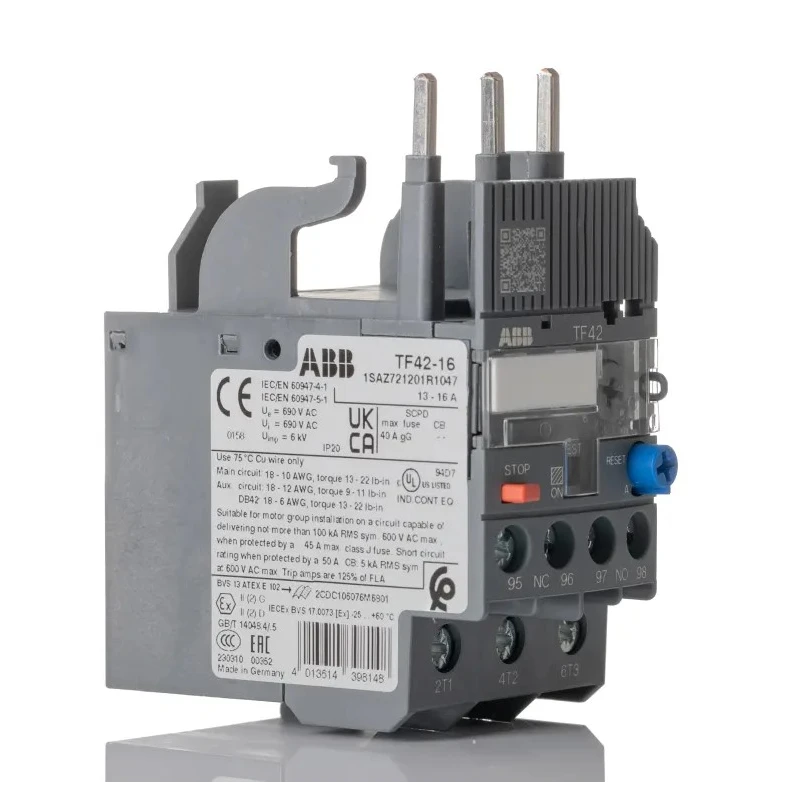

ABB Thermal Overload Relay 1 NO/1 NC, 13A, 16 A F.L.C, 16A Contact Rating, 2.2 W, Screw Terminal, TF42 Model 1SAZ721201R1047



Category Thermal Overload Relay Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Length	88.3mm
Model	TF42
Depth	70.5mm
IP Rating	IP20
Width	45mm
Mount Type	Direct
Series	TF42
Power Rating	2.2W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	690V
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	711-6648Brand: ABBManufacturers Part No.: 1SAZ721201R1047 TF42-16
Contact Voltage	690V ac/dc
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	16A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	13, 16A
Adjustable Current Range	13 → 16 A

Key Features

This relay offers automatic and manual reset methods for flexible operation.
It features screw terminal connections ensuring secure and quick wiring.
The relay accommodates an adjustable current range from 13 to 16 amperes.
Rated contact current is 16 amperes with 1 normally open and 1 normally closed contact configuration.
Compact design fits in a confined installation space with dimensions 45mm (W) x 70.5mm (D) x 88.3mm (L).
Operates safely within temperatures ranging from -25°C to +60°C.
IP20 rated enclosure for moderate protection against solid objects.
Includes LED indicator for clear status monitoring.

Product Description

ABB TF42 thermal overload relay, model 1SAZ721201R1047, offers reliable protection for 3-phase electric motors by monitoring motor current and preventing damage due to overloads.

Designed for motors with a full load current (FLC) rating between 13 and 16 amperes, the relay provides 16A contact current with a 1 normally open (NO) and 1 normally closed (NC) contact configuration, suitable for direct mount installation.

This device supports both automatic and manual reset methods and features screw terminal connections that facilitate quick and secure wiring. Its compact size of 45mm width, 70.5mm depth, and 88.3mm length ensures it can be installed in tight industrial panels.

Engineered for robustness, it operates effectively within a wide temperature range from -25°C to +60°C and has an IP20 rating, providing basic protection against solid foreign objects. The built-in LED indicator offers clear status updates for maintenance convenience.

The relay meets stringent international standards including UL 508, IEC/EN 60947-1, -4-1, -5-1, CE, RoHS directive, and others, ensuring compliance and durability in demanding industrial environments such as lathe operations, textile manufacturing, and crane applications.

This relay offers automatic and manual reset methods for flexible operation. It features screw terminal connections ensuring secure and quick wiring. Adjustable current range between 13 to 16 amperes for tailored motor protection.

Compact design suitable for installation in limited spaces. Wide operating temperature range from -25°C to +60°C. IP20 enclosure protection for safety and reliability. LED indicator provides clear operational status. Compliance with multiple international safety and quality standards.

Specifically designed for use in electric motors for various industrial machines. Suitable for applications including lathe machines, textile manufacturing, and lifting equipment. Explore EnvMart's extensive range of Thermal Overload Relays and ABB products for reliable and efficient motor protection solutions.
