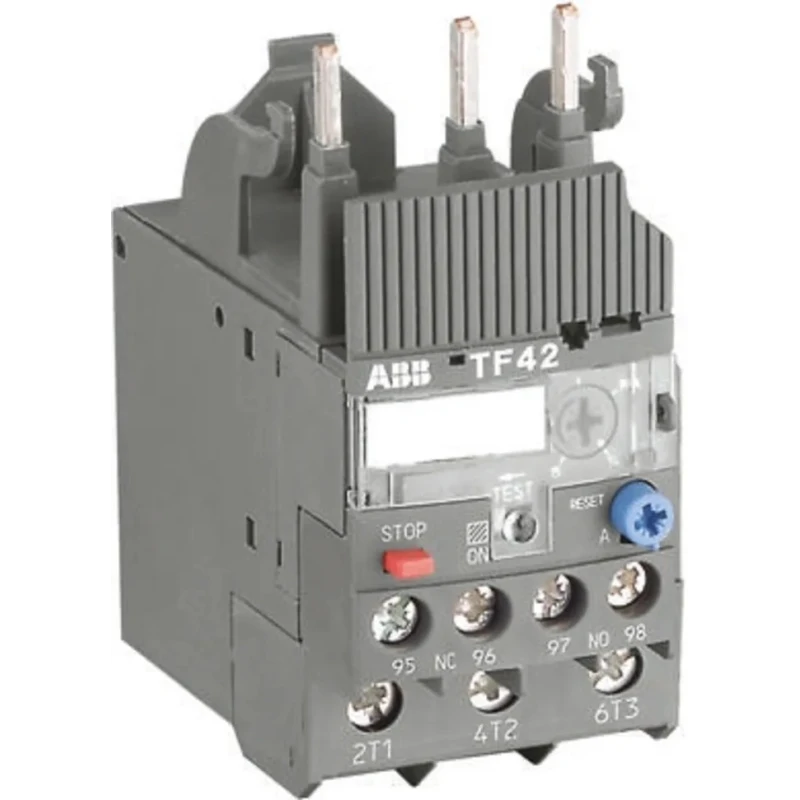

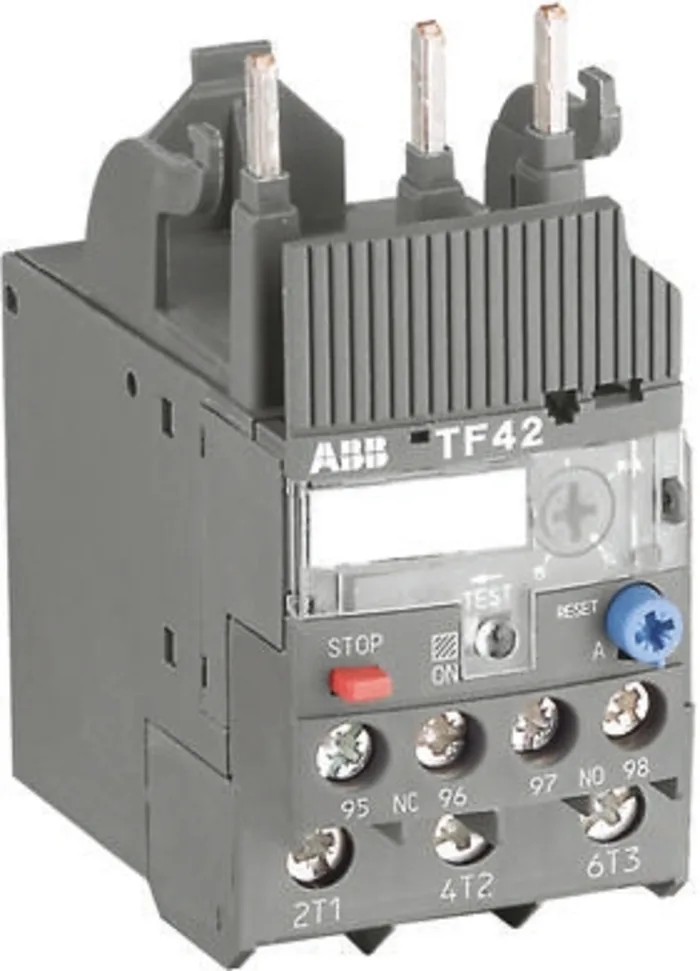

ABB Thermal Overload Relay Direct Mount 3-Pole 10-13A Adjustable Current Range 2.2W Power TF42 1SAZ721201R1045 TF42-13

ABB TF42 thermal overload relay model 1SAZ721201R1045 TF42-13 is engineered for reliable protection of electric motors by shutting off power upon detecting overcurrent or phase imbalance, helping prevent motor damage and downtime. It mounts directly onto contactors and features a robust 3-pole configuration, accommodating both three-phase and single-phase systems with rated full load currents of 10A to 13A and a power dissipation of 2.2W.

The relay offers versatile reset options including automatic and manual modes, facilitating quick system restore post fault correction. Housed in a compact body measuring 45mm width, 70.5mm depth, and 88.3mm length, it fits well in constrained panel spaces. The screw-type terminals enable straightforward and secure wiring without requiring special tools.

Designed to operate reliably within harsh ambient conditions from -25°C to +60°C, this relay ensures consistent performance. The contact voltage rating of 690V AC/DC and IP20 enclosure class provide safe operation in typical industrial environments. Two auxiliary contacts further allow integration with control circuits for signaling purposes.

ABB TF42 relay complies with a broad spectrum of international standards such as IEC/EN 60947 series, UL 508, CSA, CE marking, RoHS directive, and others, assuring industrial safety and regulatory conformity.

This thermal overload relay is ideally suited for protection and control of motors in various industrial applications including conveyor belts, grinding machines, and pumps, thereby enhancing operational safety and reliability.

Equipped with 1 normally open and 1 normally closed contact. Supports 3-pole pole and throw configuration for enhanced motor protection. Dual reset methods: automatic and manual for operational flexibility. Wide operating temperature range from -25°C to 60°C suitable for varied environments.

Compact dimensions with 45mm width, 88.3mm length and 70.5mm depth for space-efficient installation. High contact voltage rated at 690V AC/DC with IP20 protection class. Includes 2 auxiliary contacts to support control and signaling functions.

Screw terminal type ensures secure and easy wiring without special tools. Certified and compliant with multiple standards including IEC, UL, CE, RoHS, and others for industrial safety. Ideal for use in conveyor belts, grinding machines, and pump motor protection.
