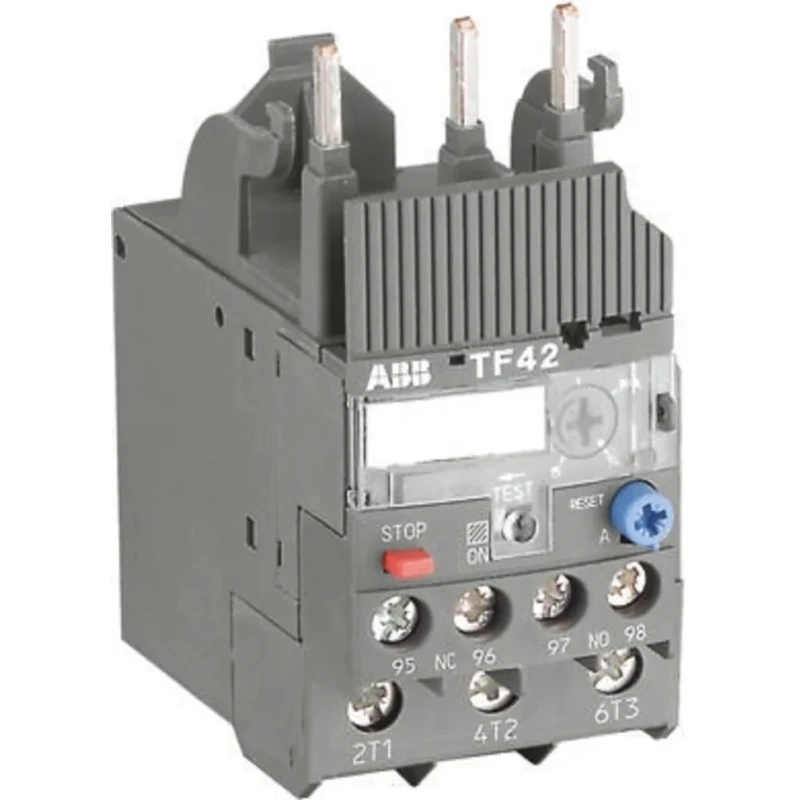

ABB Thermal Overload Relay 0.17-0.23A, 1 NO/1 NC Contacts, 230mA Contact Rating, 2W Power, Direct Mount TF42
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Length | 88.3mm |
| Model | TF42 |
| Depth | 70.5mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | TF42 |
| Power Rating | 2W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 711-6597Brand: ABBManufacturers Part No.: 1SAZ721201R1009 TF42-0.23 |
| Contact Voltage | 690V ac/dc |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 230mA |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 0.17, 0.23A |
| Adjustable Current Range | 0.17 → 0.23 A |
Key Features
- Features 1 Normally Open and 1 Normally Closed contact for versatile control.
- Relay contact current capacity up to 230mA ensuring reliable operation.
- Power rating of 2W suitable for efficient overload protection.
- Direct mount type provides easy and secure installation.
- Operating temperature range from -25°C to 60°C for broad environmental tolerance.
- IP20 rated for basic protection against solid objects and moisture.
- Adjustable current range allows fine tuning between 0.17 and 0.23 A.
- Includes automatic and manual reset methods for operational flexibility.
Product Description
ABB TF42 Thermal Overload Relay is engineered for efficient motor overload protection in industrial automation and control systems. Featuring a current range adjustable between 0.17 to 0.23 amperes, this relay safeguards motors from abnormal current conditions.
The device includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact configurations with a relay contact current capacity of 230mA and a power rating of 2 watts. Its mounting is direct type with screw terminals ensuring convenient installation and secure connectivity.
Designed to operate reliably in a temperature range from -25°C to 60°C, the relay boasts an IP20 rating, providing protection against solid foreign objects and minimal moisture ingress, suitable for many industrial environments.
The adjustable current range feature permits fine calibration of 0.17 to 0.23 A to match motor protection requirements. Reset options include both automatic and manual methods, enhancing operational adaptability in varied applications.
Physical dimensions are compact and user-friendly with a width of 45mm, length of 88.3mm, and depth of 70.5mm. The product meets rigorous international standards such as UL 508, IEC/EN 60947 series, CE marking, RoHS compliance, and more, assuring quality and safety compliance for industrial use.
Features 1 NO/1 NC contact configuration. Adjustable current range from 0.17 to 0.23 A. IP20 rated protective enclosure. Automatic and manual reset capabilities. Complies with IEC, UL, CE, RoHS, and other international standards.
This Thermal Overload Relay is ideal for applications in industrial automation, electrical control panels, motor protection systems, and other settings requiring reliable motor current interruption and protection. Its design and approvals make it suitable for manufacturing, HVAC, water treatment, and other commercial sectors.
Explore more industrial relays and contactors to fit diverse automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this relay is from 0.17 to 0.23 amperes, allowing for fine calibration to match specific motor protection requirements.
This model has a width of 45mm, a length of 88.3mm, and a depth of 70.5mm, making it compact for installation.
The power rating of this thermal overload relay is 2 watts, suitable for efficient overload protection.
It features 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration, providing versatile control options.
The maximum operating temperature for this thermal overload relay is 60°C, allowing it to function in a broad range of environments.
This relay has an IP20 rating, which provides basic protection against solid objects and moisture.
The relay includes both automatic and manual reset methods, enhancing operational flexibility in various applications.
The relay contact current capacity is up to 230mA, ensuring reliable operation for motor protection.
It features a direct mount type with screw terminals, ensuring convenient installation and secure connectivity.
The minimum operating temperature for this thermal overload relay is -25°C, allowing it to operate in colder environments.
This model can handle contact voltages of up to 690V ac/dc, making it suitable for various industrial applications.
It complies with several international standards including UL 508, IEC/EN 60947 series, CE marking, and RoHS compliance, ensuring quality and safety for industrial use.
