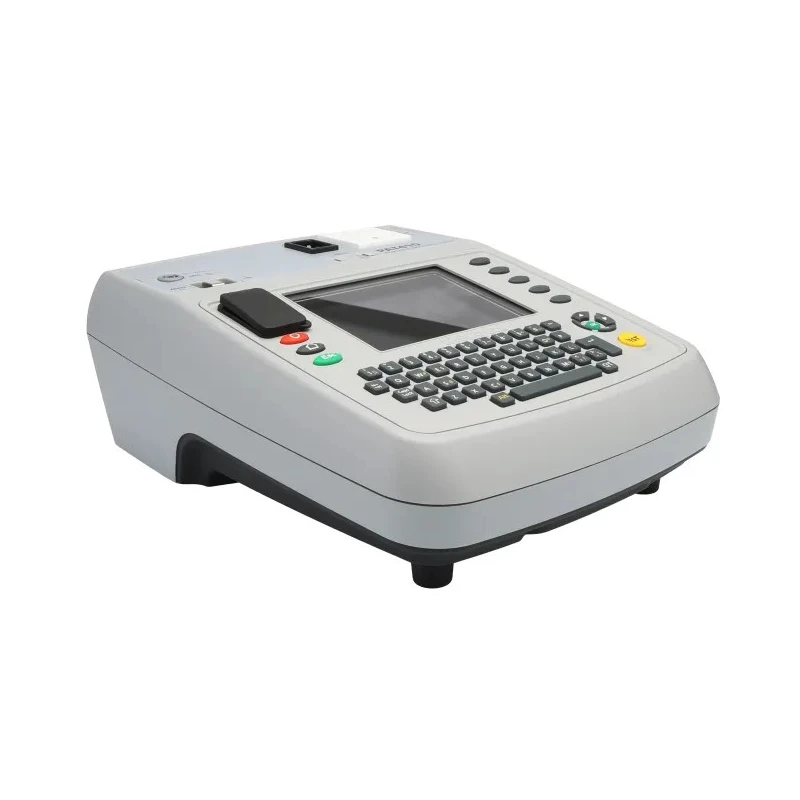

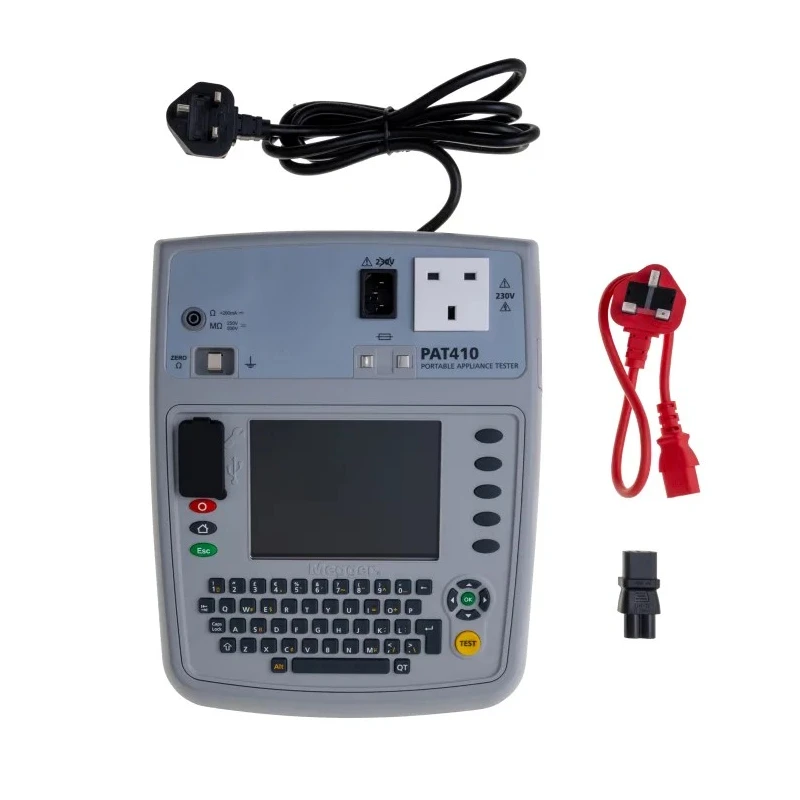

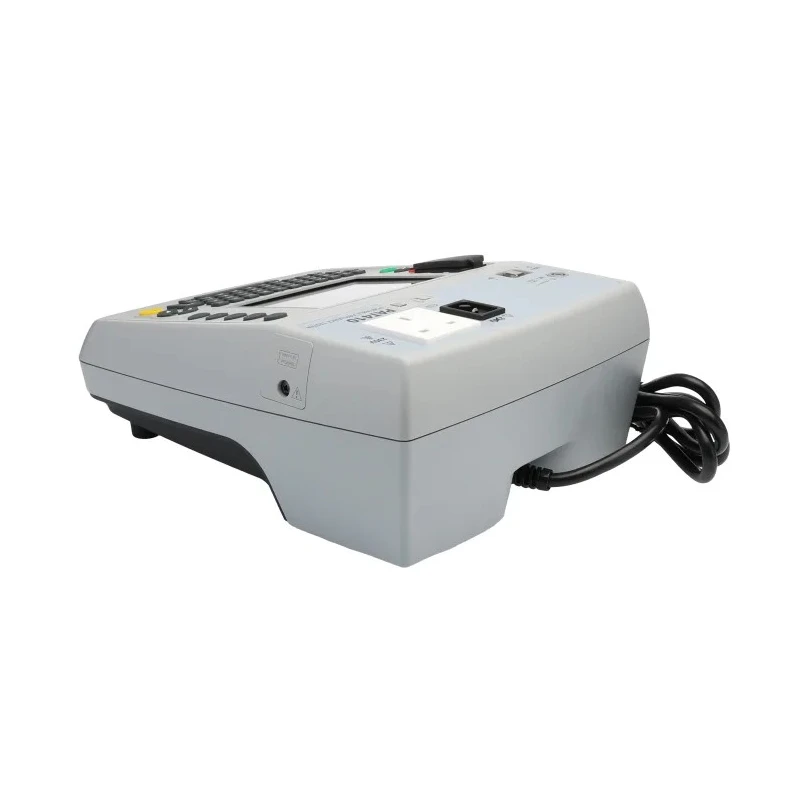

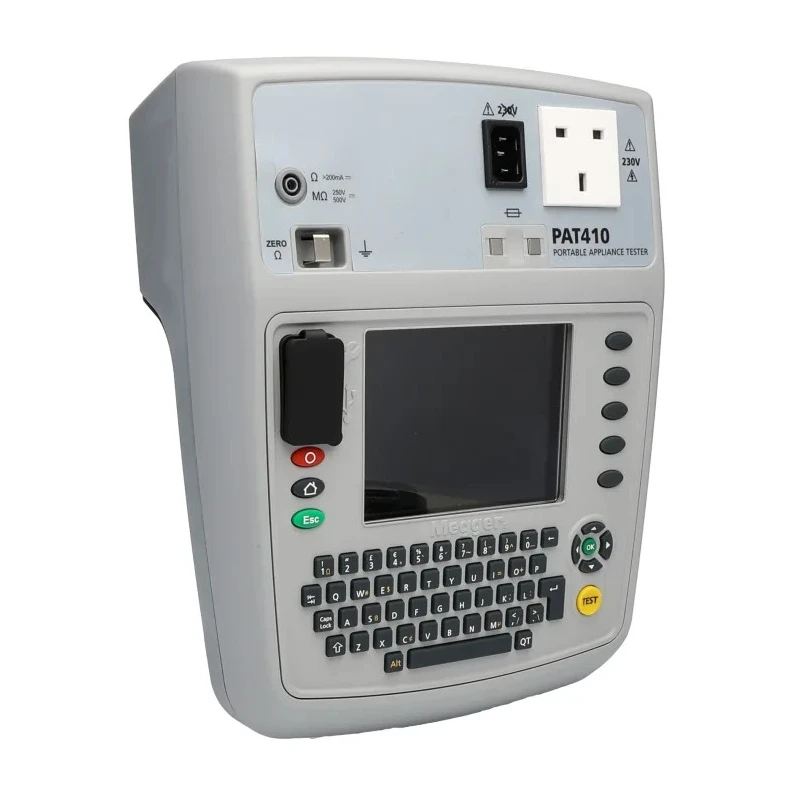

Megger Portable Appliance Tester PAT Tester Class I Class II Test Type 230V 2.7kg PAT410

Megger PAT410 Portable Appliance Tester, model PAT410, is designed for precise and rapid electrical health checks of appliances and systems, performing Class I and Class II tests at 230V supply with a device weight of 2.7kg. This tester allows both automatic and manual testing methods to accommodate various inspection needs.

The tester features a large 5.7-inch VGA backlit colour screen ensuring clear and easy viewing of results. Its high-capacity memory can safely store up to 10,000 test records, facilitating extensive data collection without interruption.

Data management is further enhanced through dual USB ports enabling direct download to memory sticks and compatibility with barcode readers and printers, streamlining workflow and eliminating the need for transferring data to office systems repeatedly.

Performance capabilities include 200 mA continuity tests, insulation testing at 250 V and 500 V to protect sensitive electronics, and multiple leakage current test types including differential, substitute, or touch leakage current assessments. The device also supports testing of standard, RCD-protected, and anti-surge extension leads and performs interrupt-time tests for portable or plug-in residual current devices.

Adjustable test times and instant restart features allow for flexible and efficient testing suitable for varying project requirements, boosting productivity during inspections. The device complies with IEC 61010-1 standards ensuring safety and accuracy in measurements.

Robust construction supports operation in harsh environments, with an operating temperature range from -10°C to 50°C. The full QWERTY keyboard and five user-defined soft keys provide straightforward data entry and quick access to frequently used functions.

This portable appliance tester is ideal for industrial control equipment, IT networks, and media & entertainment systems, delivering efficient pass/fail evaluations to cater to diverse operational contexts.

Large 5.7in VGA backlit colour screen for enhanced readability. 10,000-record memory capacity for extensive testing needs. Dual USB ports for seamless data downloads and peripherals connectivity. Wide test range including continuity, insulation, and leakage current tests.

Adjustable test times and instant restart for increased testing efficiency. Compliance with IEC 61010-1 safety standard. Lightweight design at 2.7kg for portability. Supports testing of various extension leads and RCD types.

Durable operation over a wide temperature range (-10°C to +50°C). Full QWERTY keypad and user-defined soft keys for easy operation. Explore the full range of PAT Testers and measurement instruments on EnvMart for reliable electrical testing solutions.
