SICK C2MT Series Light Curtain Receiver, Sender, 24 mm Resolution, 480mm Protective Height, 24V DC, Type 2 Safety Sensor C2MT

SICK C2MT Series Light Curtain Receiver and Sender (Model C2MT) with 24 mm beam resolution, 480mm protective height, and 24V DC operation is a Type 2 safety sensor designed for industrial machine safety applications. This light curtain provides non-contact presence detection to create protective fields that safeguard access points and hazardous areas.

The unit operates with a maximum response time of 13 milliseconds, offering rapid fault reactions to maintain operator safety. It supports a maximum protective width of 8 meters and a maximum scanning distance of 8 meters with a minimum scanning distance of 0 meters, covering extensive areas in various industrial setups.

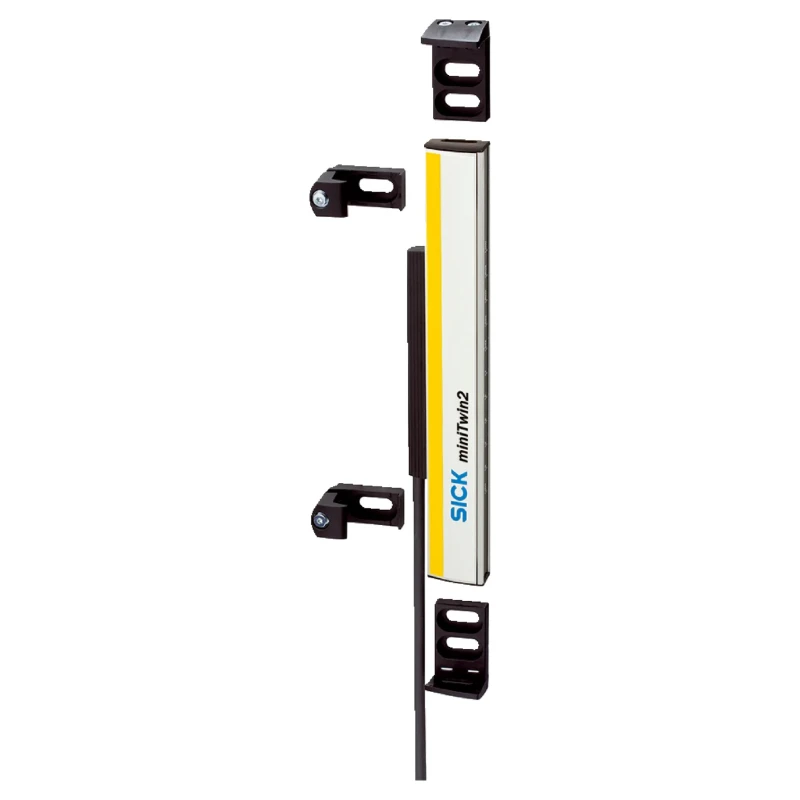

Constructed with a compact aluminium alloy housing featuring a 15 mm cross-section, it is durable and easy to mount using the supplied C-Fix and L-Fix brackets. Electrical connection is achieved through a 5-pin M12 plug, allowing simple integration into existing control systems. The device is rated IP65 for robust performance against dust and water ingress and functions reliably in ambient temperatures from -20°C to +55°C.

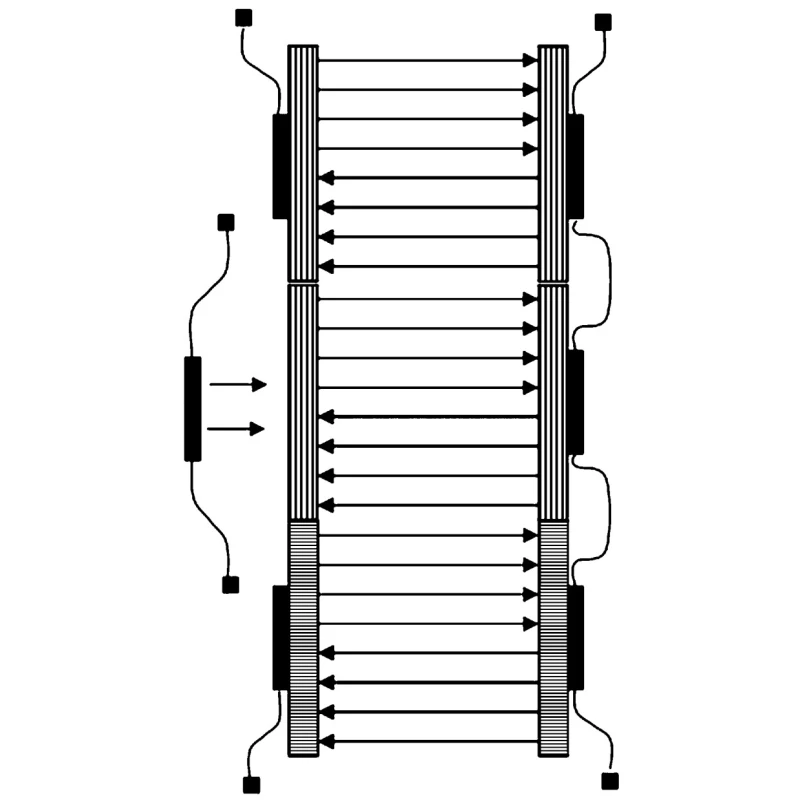

Optical synchronization eliminates the need for extra wiring when deploying multiple units. The product includes all necessary mounting accessories, a test rod for functional verification, and system plugs for streamlined installation. It is suitable for various industrial applications including safeguarding production line gates, robotic cell perimeters, conveyor end-of-line guarding, and use with safety relays in restart interlock configurations.

Compliant with numerous international safety standards such as ACMA, CE, cUL, IEC 61496-1, RoHS, UKCA and others, the SICK C2MT light curtain ensures adherence to rigorous safety requirements across multiple jurisdictions.

The 24 mm beam resolution enables detection of small intrusions effectively. Maximum supply voltage is 24V DC ensuring compatibility with standard industrial control equipment. The compact design allows for installation in confined spaces without compromising protection.

Robust protective height and width provide comprehensive safety coverage. Operating temperature range supports diverse industrial environments. Includes complete set of mounting and installation accessories. Choose SICK C2MT Series Light Curtains from EnvMart for reliable and certified safety solutions in industrial automation and machine guarding applications.
