Huco Aluminium Hub Stainless Steel Bellows Clamp Style Flexible Coupler 12 mm Bore 40 mm Length 536.34.3535

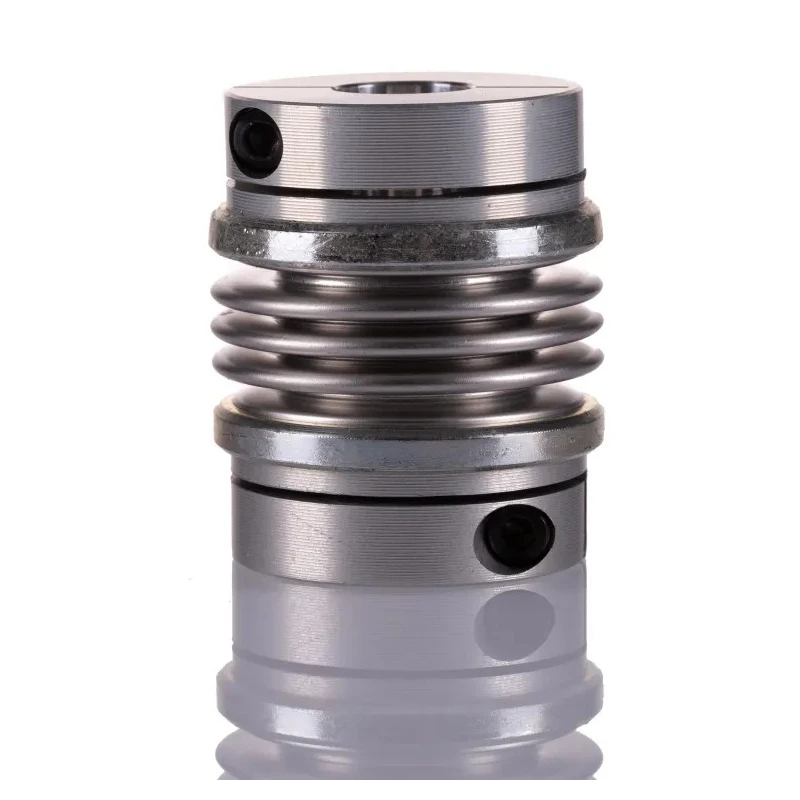

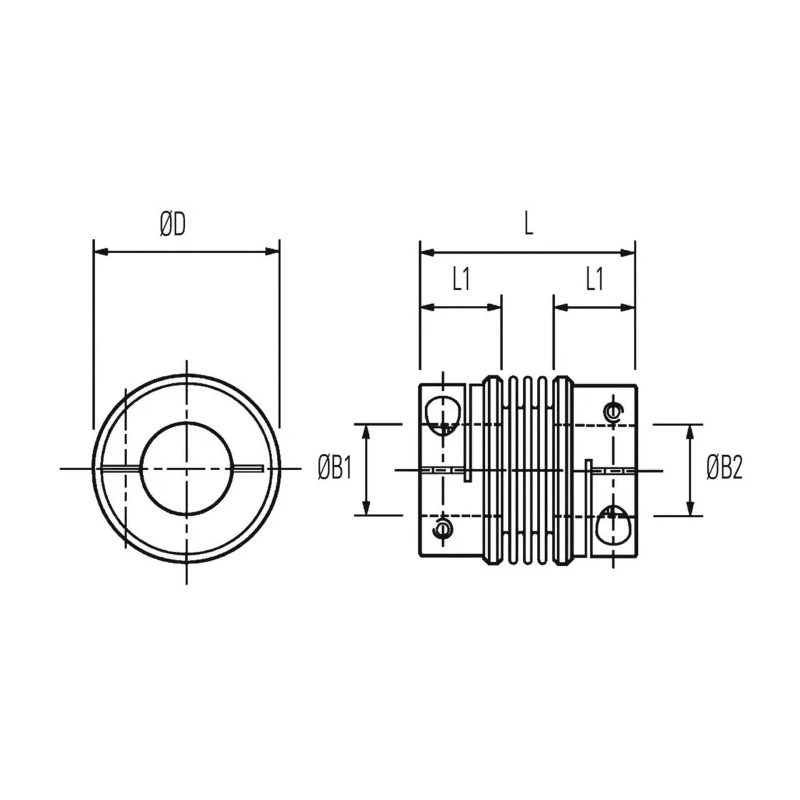

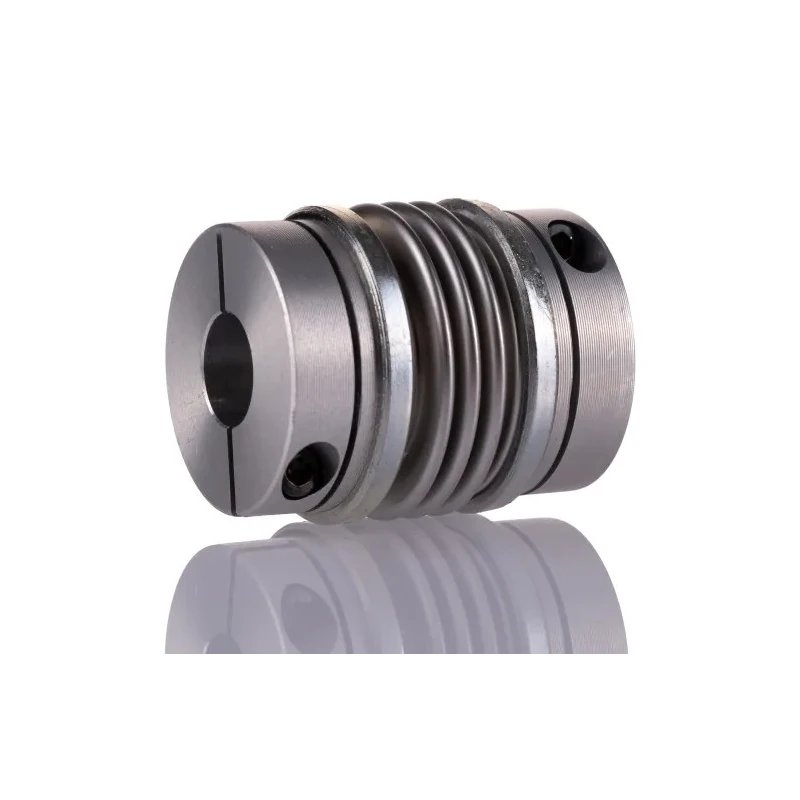

Huco 536.34.3535 is a flexible coupler featuring an aluminium hub combined with stainless steel bellows, designed in clamp style for reliable mechanical power transmission. With a bore size of 12 mm and a length of 40 mm, it is engineered to deliver precise torque and accommodate misalignments commonly encountered in servo drive and power transmission systems.

This coupling supports a maximum rotational speed of 5000 rpm and has a torque rating of 2.43 Nm, making it suitable for various industrial applications requiring controlled dynamic positioning. Its high torsional stiffness ensures excellent positional accuracy while maintaining low inertia for efficient performance.

The flexible bellows material of stainless steel provides durability and flexibility, accommodating angular misalignment up to 2.5 degrees, parallel misalignment of 0.1 mm, and axial misalignment of 0.6 mm. It operates reliably within a wide temperature range from -40°C up to 120°C, suitable for diverse industrial environments.

Installation is facilitated by the clamp style design with M3 screws, allowing secure attachment to shafts with 12 mm bore sizes on both sides. This coupler belongs to the Flex B series and does not have additional certifications.

Applications include industrial servo drives, mechanical machinery, automation systems, and other fluid power and mechanical transmission setups in manufacturing and automation industries. This product is manufactured in the United Kingdom, ensuring compliance with high-quality standards.

Clamp style design ensures secure fitting and easy installation. Made with aluminium hub for lightweight and durability. Stainless steel bellows provide flexibility and high torsional stiffness. Handles maximum speed of 5000 rpm for dynamic applications.

Torque rating of 2.43 Nm suitable for moderate power transmission. Supports angular misalignment up to 2.5 degrees, parallel misalignment 0.1 mm, and axial misalignment 0.6 mm. Capable of operating in temperature range from -40°C to 120°C.

Ideal for servo drives requiring high positional accuracy and low inertia couplings. Manufactured to Flex B series standards with M3 screw size. Country of origin is United Kingdom ensuring high manufacturing quality. Explore more Mechanical Power Transmission Couplings at EnvMart for your industrial and manufacturing needs.
