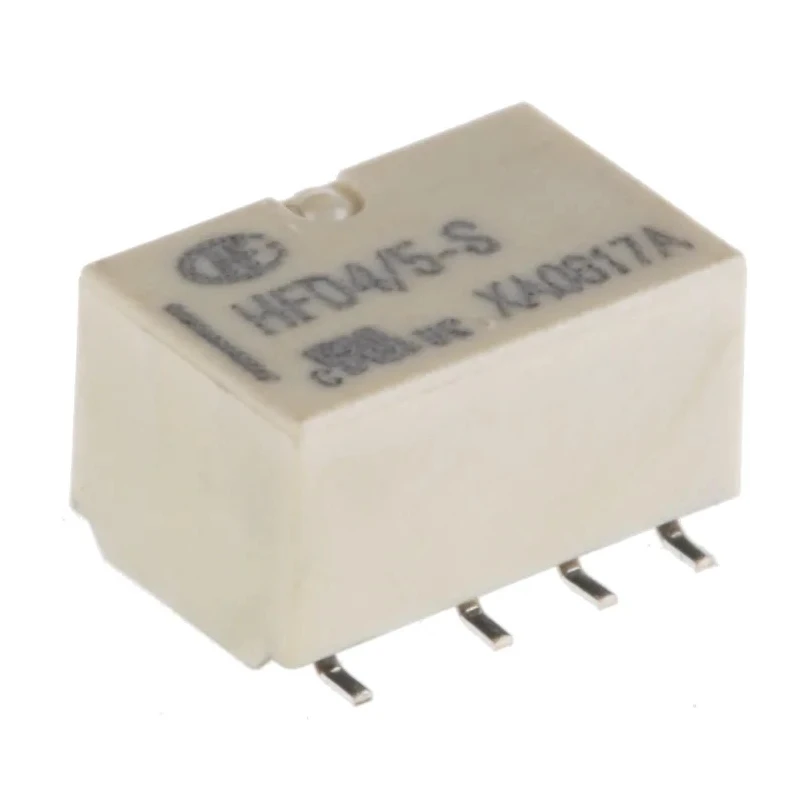

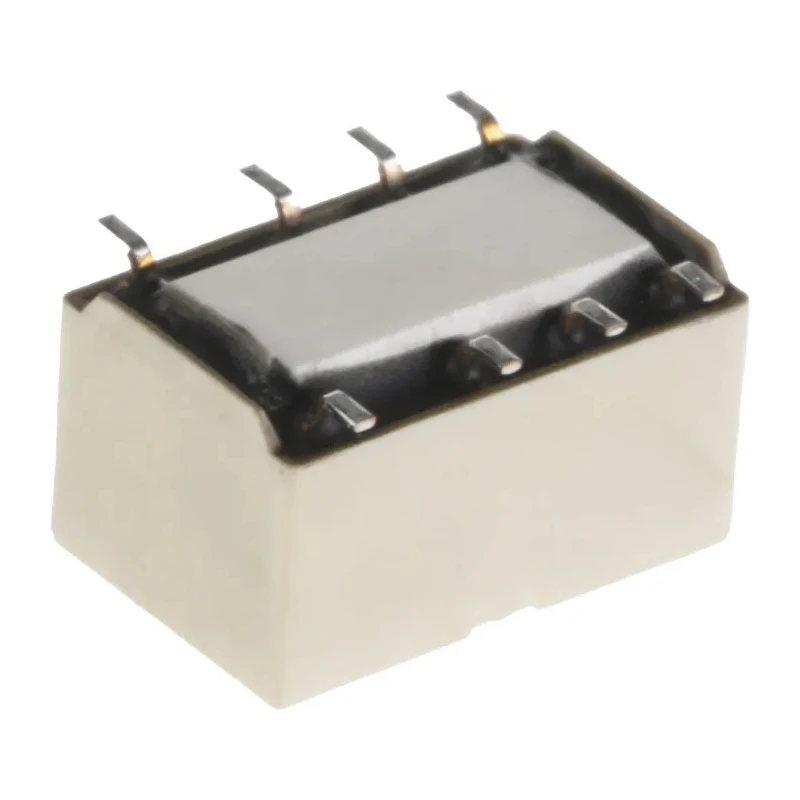

RS PRO PCB Signal Relay 5V DC Coil 2A SPDT 800-4524P

RS PRO model 800-4524P is a high-quality PCB Signal Relay with a 5V DC coil voltage and 2A switching current, configured as a Single Pole Double Throw (SPDT) device. It is specifically designed for PCB mounting, providing reliable and efficient switching in electrical, industrial automation, and electronic applications.

This relay measures 10 mm in length, 6.5 mm in width, and 5.65 mm in height, making it suitable for compact circuit designs. The contacts are gold plated, with rhodium plated palladium nickel, which enhances conductivity and corrosion resistance for durability and long service life.

The coil power requirement is low at 140mW, supported by a coil resistance of 178 Ω, ensuring energy efficiency in operation. The relay supports switching voltages up to 250V AC and 220V DC, with a maximum switching power of 62.5 VA (AC) and 60 W (DC), making it suitable for various signal and control circuit loads.

It operates reliably within a wide temperature range from -40°C to +85°C, and features solder terminal types for easy surface mounting on printed circuit boards. The product complies with RoHS directives and carries cULus E133481 approval, affirming its safety and quality standards.

With an impressive lifespan of 100,000 electrical operations and 100 million mechanical operations, this relay ensures stable and long-lasting performance in demanding environments. It is ideal for applications in industrial control systems, automation, instrumentation, and other electronic device circuits requiring a dependable switching relay.

This signal relay is equipped with a 5V DC coil voltage. It has a switching current rated at 2 Amperes for AC/DC circuits. The contact configuration is Single Pole Double Throw (SPDT) for versatile switching. Designed for PCB mounting with a compact size of 10 mm length, 6.5 mm width, and 5.65 mm height.

Gold plated contacts with rhodium plated palladium nickel ensure reliable conduction and durability. The coil power consumption is low at 140 mW, with coil resistance of 178 Ω. Operating temperature range from -40°C to +85°C suits varied industrial environments.

Complies with RoHS standards and recognized by cULus E133481 certification. Reliable mechanical and electrical life with 100 million manual and 100,000 electrical operations. The relay is subminiature with surface mount solder terminals.
