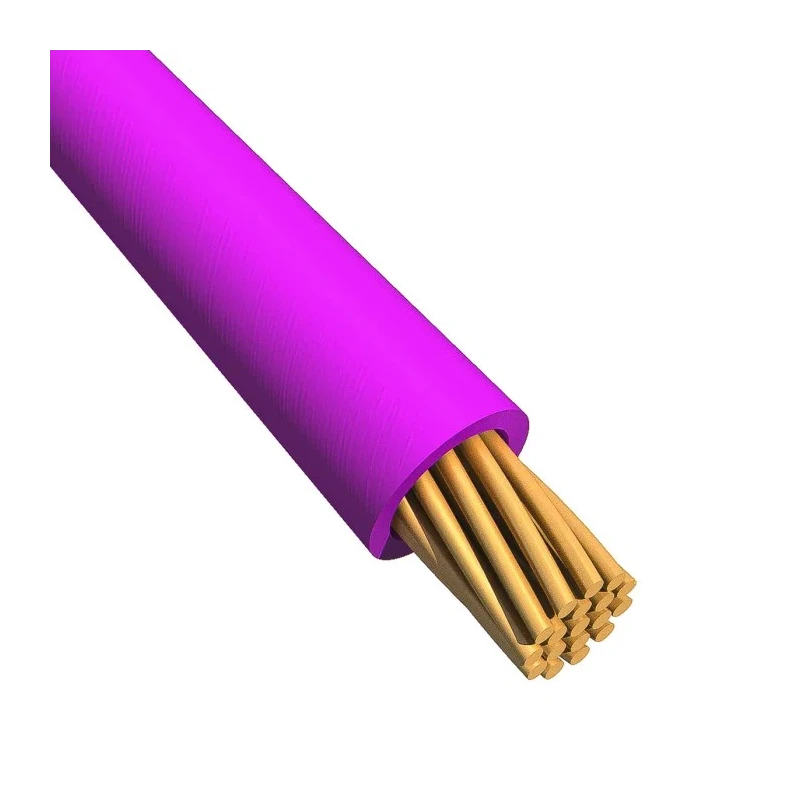

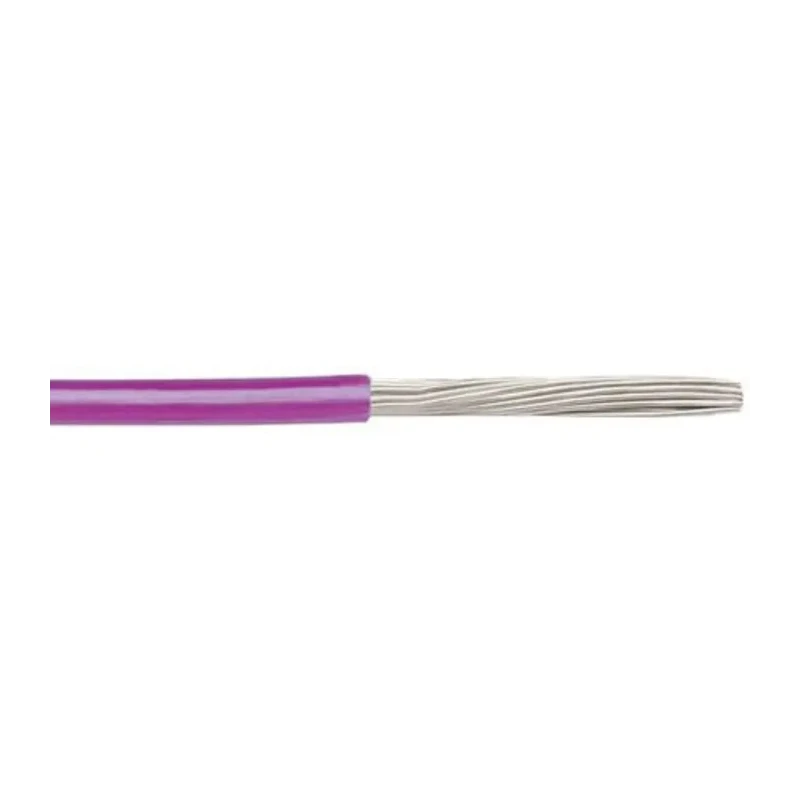

Alpha Wire Ecogen Ecowire Series Purple 3.3 mm² Hook Up Wire, 12 AWG, 65 x 0.25 mm Core Strands, 30 m, Modified 6718 VI005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series Purple 3.3 mm² Hook Up Wire, 12 AWG, 65 x 0.25 mm Core Strands, 30 m, Modified 6718 VI005

Name: Alpha Wire Ecogen Ecowire Series Purple 3.3 mm² Hook Up Wire, 12 AWG, 65 x 0.25 mm Core Strands, 30 m, Modified 6718 VI005
Brand: ALPHA WIRE
SKU: 350557
Price: 143.63 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	3.3mm²
Model	6718 VI005
Cable Length	30m
Series	Ecogen Ecowire
Outside diameter	2.97mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Sub Type	EcoWire
Cable Type	Hookup
Minimum Operating Temperature	-40°C
Jacket Material	Modified Polyphenilether
Standards/Approvals	CE, CSA, UL
Jacket Colour	Purple
Fire Behaviour	Flammability Test: VW-1
American Wire Gauge	12AWG
Number of Strands	65
Core Strands	65 x 0.25mm
Size of Strands	0.25mm
Fire Behaviour Flammability Test	VW-1

Key Features

Manufactured using modified polyphenylether (mPPE) insulation that is fully recyclable.
Compact 2.97 mm outside diameter offers up to 45% smaller diameter than PVC insulation.
Flame retardant with UL VW-1 rating ensuring safety in electrical installations.
Stranded copper conductor material providing excellent conductivity and flexibility.
Suitable for control panels, automotive, computer internal wiring, electronic equipment, and appliances.
Complies with CE, CSA, ULC, UL AWM 11028 VW-1, CSA AWM I A/B FT1 standards.

Product Description

Alpha Wire 6718 VI005 Ecogen Ecowire Series Purple Hook Up Wire is engineered for advanced electrical and electronic wiring applications offering superior environmental performance and electrical reliability. This product features a 3.3 mm² cross-sectional area and 12 AWG specification with 65 strands of 0.25 mm diameter copper conductor for high flexibility and excellent conductivity.

Constructed with modified polyphenylether (mPPE) insulation material, the EcoWire series provides full recyclability while maintaining robust dielectric properties. This innovation allows a reduced wall thickness in the insulation without compromising electrical safety, resulting in a 45% smaller diameter and 40% lighter cable compared to traditional PVC wires.

The cable is flame retardant to UL VW-1 standard and designed for operation in harsh environmental conditions with a maximum temperature rating of 105°C and minimum operating temperature down to -40°C. Its robust construction makes it ideal for industrial, laboratory, commercial, and manufacturing applications requiring reliable single core cable performance.

This hook up wire is widely used in control panels, automotive wiring systems, oven controls, electronic business machines, and internal wiring of computers and appliances. Its compatibility with Alpha Wire's FIT heat-shrink tubing and wire management systems enhances installation and durability.

Fully recyclable modified polyphenylether insulation for environmentally responsible use. Up to 45% reduction in diameter and 40% lighter than PVC insulated cables. Exceptional dielectric strength for electrical safety. Rated for 600 V and maximum operating temperatures up to 105°C.

Flame retardant to UL VW-1 standard ensuring fire safety compliance. Complies with CE, CSA, ULC, RoHS, and REACH regulations. Length of 30 meters suitable for varied wiring applications. Set contains 1 reel of 30 meters of 3.3 mm², 12 AWG Hook Up Wire in purple color with modified polyphenylether jacket material.

Alpha Wire products are trusted across industrial, electrical automation, manufacturing, and HVAC sectors. Explore EnvMart for more high-quality cables and wires from Alpha Wire and other leading brands.
