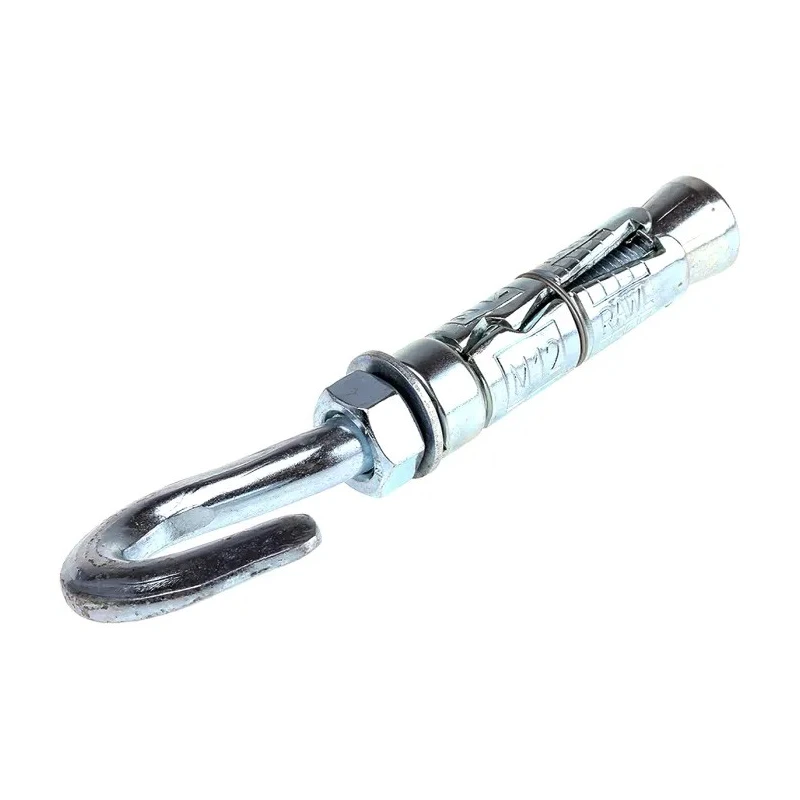

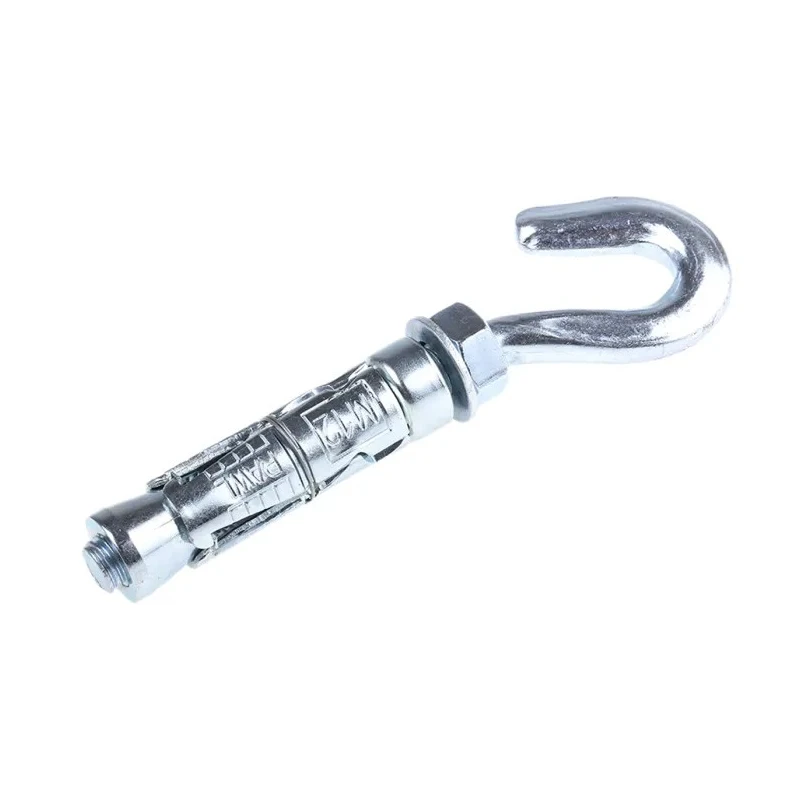

RawlPlug Carbon Steel Masonry Shield Anchor Hook Bolt M12 x 145 mm Zinc Plated R-RBL-12HW

RawlPlug R-RBL-12HW Carbon Steel Masonry Shield Anchor Hook Bolt M12 x 145 mm is a high-performance expanding shield anchor designed for secure fixing in a wide range of materials used in industrial, construction, and building applications. The zinc-plated carbon steel construction offers excellent corrosion resistance and long-lasting durability, suitable for harsh environments.

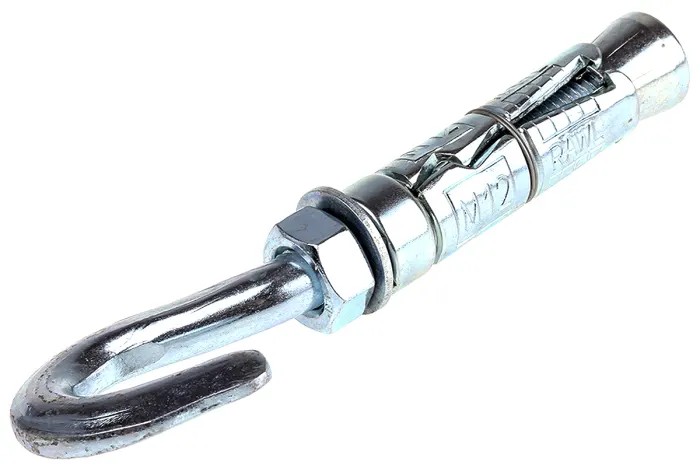

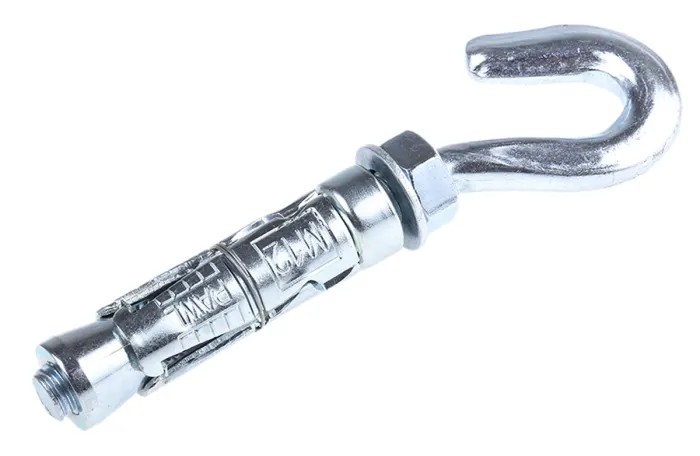

The anchor features a unique 3-piece expanding sleeve that provides excellent expansion force, ensuring maximum load capacity and safety. The hook bolt design allows for versatile anchoring solutions, including permanent and temporary installations.

Compatible with various materials such as cracked and non-cracked concrete (C20/25 to C50/60), reinforced and unreinforced concrete, solid clay bricks with compressive strength ≥ 20 MPa, hollow lightweight concrete blocks (LAC 5 ≥ 5 MPa), hollow sand lime bricks (≥ 15 MPa), concrete hollow floor blocks, and hollow core slabs with different strength classes.

Typical applications include supporting ladder restraints, guy ropes, stays, and cables in industrial, construction, and maintenance projects. Installation requires an accurately drilled hole with a 20 mm diameter and 145 mm depth, avoiding mortar joints in brickwork. Clean the drilled hole thoroughly to remove all debris and dust before inserting the anchor flush to the surface.

RawlPlug R-RBL-12HW complies with multiple ISO and DIN standards including ISO 7380, DIN 7985T, ISO 7379, DIN 85, DIN 933, DIN 963, and others, ensuring quality and structural reliability.

This anchor bolt features a 3-piece expanding sleeve for excellent expansion and optimal load safety. The hook bolt design provides maximum performance in permanent and temporary anchoring applications. Constructed from durable carbon steel with zinc plating to resist corrosion.

Suitable for use in cracked and non-cracked concrete, reinforced and unreinforced concrete, solid clay bricks, lightweight concrete blocks, and hollow core slabs. Complies with multiple ISO and DIN standards ensuring quality and reliability.

Recommended drill diameter for installation is 20 mm with a length of 145 mm. Ideal for supporting ladder restraints, guy ropes, stays, and cables in industrial and construction settings. Ensure drilled holes avoid mortar joints and are cleaned thoroughly before installation.
