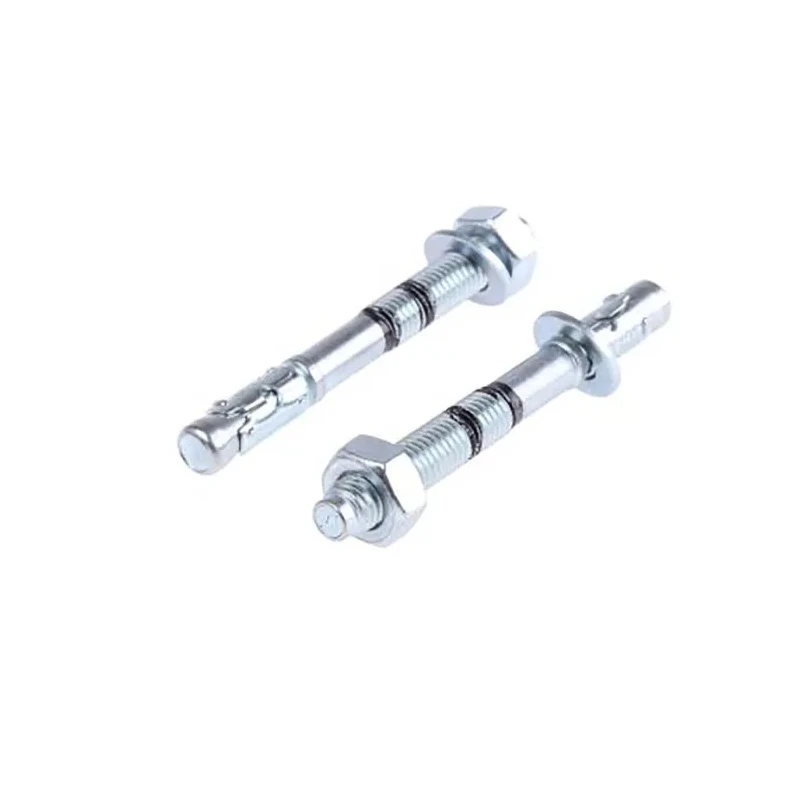

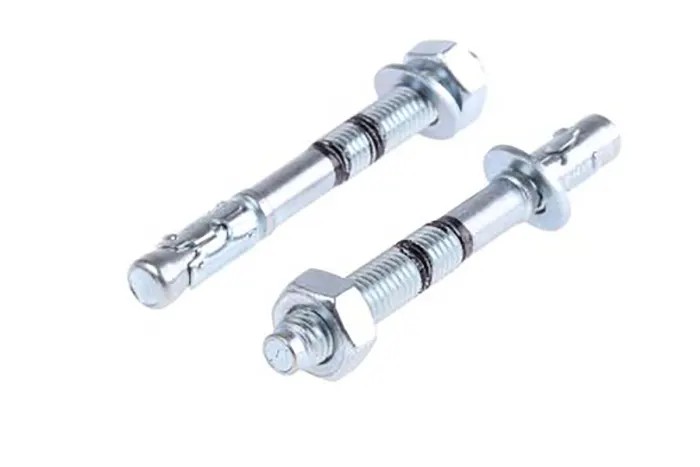

RawlPlug Carbon Steel Concrete Anchor Bolt Through Bolt Anchor 12 mm x 120 mm R-XPT-12120/25

RawlPlug R-XPT-12120/25 Concrete Anchor Bolt is a high-quality mechanical through bolt anchor manufactured from carbon steel with a zinc-plated finish. This bolt anchor is designed specifically for use in non-cracked concrete, providing exceptional load-bearing capacity and installation accuracy. The product features a 12 mm thread size and measures 120 mm in length, with a maximum fixing thickness allowance of 25 mm.

The anchor has been approved to ETA Option 7 and CE standards, ensuring compliance with safety and performance requirements. Its cold-formed body ensures dimensional accuracy for consistent results, and the embedded depth markings enable precise installation depth control. The unique 6-grip expander design enhances load-bearing capacity for demanding industrial and construction applications.

This concrete anchor bolt is suitable for a variety of applications including cladding restraint, curtain walls, balustrading, barriers, handrails, racking, structural steel fixing, and bollards. It is compliant for use in non-cracked concrete grades C20/25 to C50/60, unreinforced and reinforced concrete, and natural stone provided site testing is done prior to application. It is not suitable for cavity wall or plasterboard wall fixings.

The RawlPlug R-XPT series offers a range of thread sizes and lengths to suit diverse project needs. This model, R-XPT-12120/25, balances performance, cost-effectiveness, and ease of use, making it a trusted choice for mechanical and industrial fastening applications. The design allows for drilling and installation directly through the fixture, simplifying the installation process in manufacturing, construction, HVAC, and industrial maintenance contexts.

Set contains 1 Pc RawlPlug R-XPT Carbon Steel Concrete Anchor Bolt 12 mm x 120 mm. Explore the RawlPlug range and other high-quality industrial fasteners in the EnvMart catalog to find the right solutions for your mechanical fastening needs.

The anchor bolt has a 12 mm thread size and a 120 mm length. It features a zinc-plated finish for corrosion resistance. Suitable for use with a maximum fixing thickness of 25 mm. Cold formed body delivers dimensional accuracy and easy installation.

Approved to ETA Option 7 and CE standards for reliable performance. High load-bearing capacity offered by the 6-grip expander design. Embedded depth markings assist in precise installation. Ideal for structural steel, balustrades, handrails, barriers, and cladding restraint applications.
