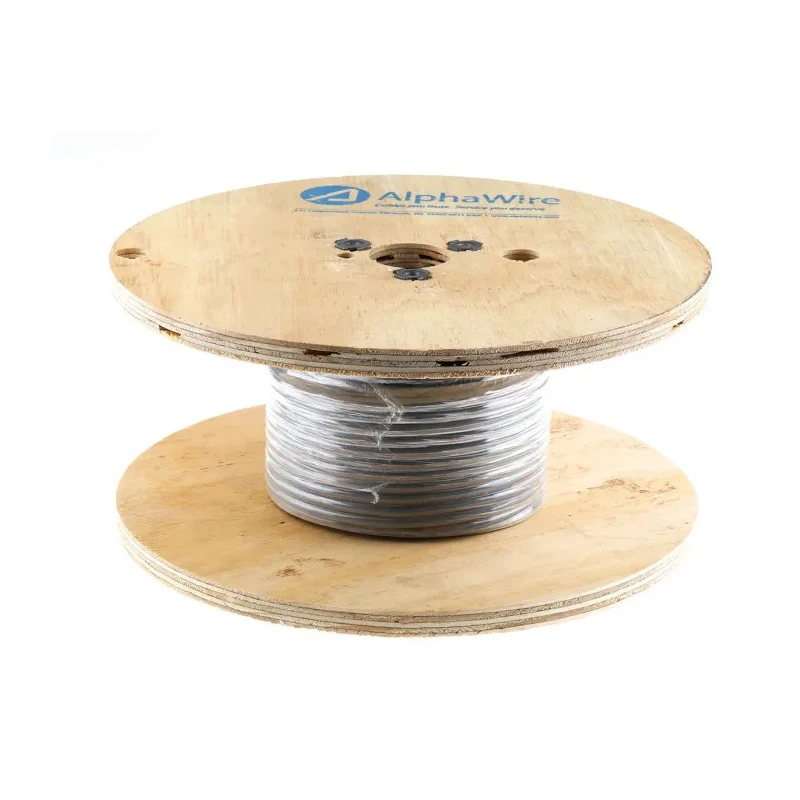

Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable 4 Pairs 8 Cores 0.35mm² 30m Grey 2463L SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | 2463L SL005 |
| Cable Length | 30m |
| Series | Alpha Essentials LSZH Communication & Control |
| Outside diameter | 6.15mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Number of Pairs | 4 |
Key Features
- Features a low smoke zero halogen (LSZH) grey sheath that minimizes toxic fumes in fire situations.
- Tinned copper conductors provide excellent conductivity and corrosion resistance.
- Operates reliably within -20°C to 75°C temperature range.
- Consists of 8 cores twisted into 4 pairs for noise reduction and minimal crosstalk.
- Flame retardant with 7 strands per core, strand size of 0.25mm.
- Standard 22 AWG gauge suitable for versatile connectivity needs.
- Rated for operation up to 300V for robust industrial applications.
- Designed to withstand a maximum pull tension of 58lbs for durability during installation.
Product Description
Alpha Wire 2463L SL005 LSZH Communication & Control Series Data Cable is engineered for efficient communication across electrical control and signal transmission networks with robust industrial-grade construction. This Data Cable features 4 twisted pairs amounting to 8 cores composed of tinned copper wires with a cross sectional area of 0.35mm², providing excellent conductivity and corrosion resistance.
The cable is jacketed with a grey Low Smoke Zero Halogen (LSZH) material, which significantly reduces toxic smoke emission under fire, improving safety in industrial and transportation environments. Its flame retardant design and compliance with CE standards make it suitable for use in demanding applications requiring strict safety measures.
Operating reliably across a wide temperature range from -20°C to +75°C and rated for 300V voltage, this cable supports diverse industrial, laboratory, HVAC, manufacturing, and telecommunication uses. The cable's core strands are configured in 7 strands of 0.25mm diameter to ensure flexibility and durability while maintaining signal integrity with a characteristic impedance of 53 ohms and low mutual capacitance of 29 pF/ft.
Low Smoke Zero Halogen grey jacket for enhanced fire safety. Four twisted pairs (8 cores) effectively reduce crosstalk and noise. Max pull tension of 58lbs to endure demanding installation environments. Flame retardant construction satisfies industrial safety standards.
Wide operating temperature range suitable for various climatic conditions. Applications include transportation sector, control systems, and telecommunications. Standard gauge 22 AWG supports flexible and robust connectivity.
Complies with CE certification for quality assurance.
The Alpha Wire LSZH communication cable is a reliable choice for industrial automation, control systems, and critical telecommunication infrastructure where safety and signal clarity are paramount. For additional Alpha Wire solutions or other communication cable needs, explore EnvMart's comprehensive cables category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 75°C.
This cable is rated for operation up to 300V.
It consists of 8 cores, twisted into 4 pairs.
The conductors are made of tinned copper wire, which provides excellent conductivity and corrosion resistance.
The cable length is 30 meters.
It features a Low Smoke Zero Halogen (LSZH) jacket, which reduces toxic fumes in fire situations.
The minimum operating temperature is -20°C.
The outside diameter of the cable is 6.15mm.
This model is flame retardant, enhancing safety in industrial applications.
Each core consists of 7 strands, with a strand size of 0.25mm.
It complies with CE standards for quality assurance.
This data cable is suitable for industrial automation, control systems, and telecommunications.
