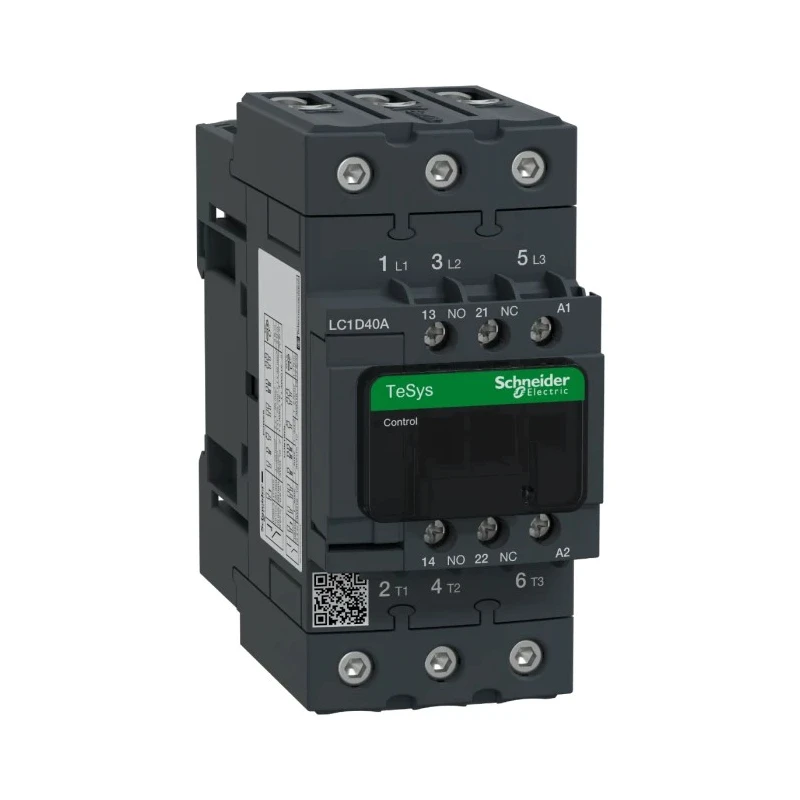

Schneider Electric LC1D40AFE7 TeSys D 3-Pole Contactor, 115V AC Coil, 25A, 18.5 kW, 3 NO, 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D40AFE7 |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 115V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 115V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 115V AC coil suitable for 50/60 Hz operation.
- Compact DIN rail mounting with dimensions 122mm length, 55mm width, and 120mm depth.
- Supports operational current Ie of 40A for reliable motor and resistive load control.
- Designed for high reliability with ratings up to 10HP at 200-208VAC and 30HP at 480-600VAC three-phase.
- Includes 1 normally open and 1 normally closed auxiliary contacts with mirror certification on NC contact.
- Screw clamp terminals provide secure connection for load and control circuits.
- Highest standards certified including IEC, UL, CSA, CCC, EAC, and RoHS compliant.
- Operates reliably in ambient temperatures from -5°C to 60°C.
Product Description
Schneider Electric LC1D40AFE7 TeSys D contactor is engineered for industrial and commercial motor control applications involving resistive loads. Featuring a 115V AC coil voltage at 50/60 Hz, this contactor supports three poles with 3 normally open contacts delivering a 25A contact current and power rating of 18.5 kW.
The compact DIN rail mount device measures 122mm in length, 55mm in width, and 120mm in depth, making it suitable for panel installations with limited space. It has an operational current Ie of 40A and can handle motor loads rated up to 10HP at 200-208VAC and up to 30HP at 480-600VAC for three-phase systems.
The contactor includes built-in auxiliary contacts comprising 1 normally open and 1 normally closed contact, the latter being mirror certified for dependable performance. Screw clamp terminals ensure secure and vibration-resistant connections for both control and power wiring.
Certified to an array of international standards including IEC, UL, CSA, CCC, EAC, and RoHS, this product guarantees safety, quality, and environmental compliance. The unit is rated for ambient operating temperatures from -5°C up to 60°C, ensuring reliable functionality in varied environments.
Weighing approximately 0.85 kg (based on conversion from 1.87 lbs), it offers a lightweight solution without compromising durability. Designed for ease of disassembly, this contactor supports sustainable practices aligned with modern industrial requirements.
115V AC Coil Voltage for versatile industrial motor control. 3-Pole configuration with 25A contact current rating. Power rating of 18.5 kW at 690V AC. Incorporates 1 NO and 1 NC auxiliary contacts. Screw clamp terminal types for secure connections.
Compact dimensions: 122mm L × 55mm W × 120mm D. Compliant with IEC, UL, CSA, CCC, EAC, and RoHS standards. Designed for sustained operation in temperatures ranging from -5°C to 60°C. Lightweight at approx. 0.85 kg.
This Schneider Electric contactor is ideal for industrial, HVAC, manufacturing, and automation control environments requiring reliable motor switching solutions. Explore our comprehensive catalog for related automation and control gear products to enhance your system setup.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 18.5 kW at 690V AC.
It has an operational current rating (Ie) of 40A.
This model measures 122mm in length, 55mm in width, and 120mm in depth.
It is designed for DIN rail mounting, making it suitable for panel installations.
The coil voltage for this contactor is 115V AC, suitable for 50/60 Hz operation.
This contactor features a 3-pole configuration with 3 normally open contacts.
It includes 1 normally open and 1 normally closed auxiliary contact, with the NC contact being mirror certified.
The maximum operating temperature is 60°C, while the minimum is -5°C.
It is certified to multiple standards including IEC, UL, CSA, CCC, EAC, and is RoHS compliant.
The contact current rating is 25A.
This contactor is engineered for motor control and resistive load applications.
It features screw clamp terminals for secure connections in both control and power circuits.
