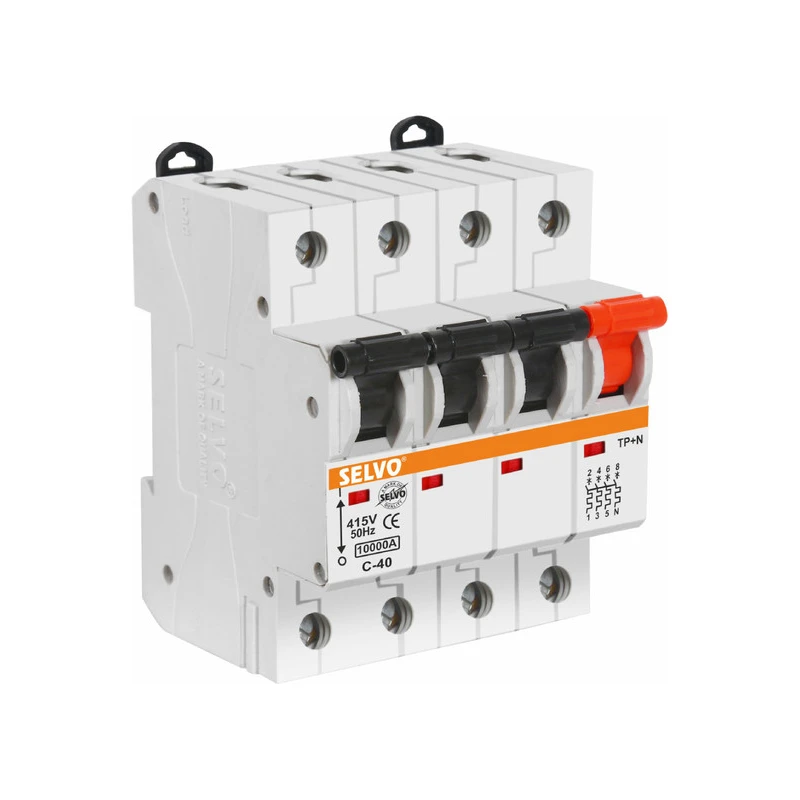

Selvo C-40A Three Pole Neutral (TPN) MCB GSELTPN12039
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 50 Hz |
| Brand | Selvo |
| Applications | Electrical Fire Safety |
| Model | GSELTPN12039 |
| Mounting Type | DIN Rail Mount |
| Weight | 0.4 Kg |
| Type of Product | MCB |
| Current Rating | 40 Amp |
| No. of Poles | Three Pole Neutral (TPN) |
| Dimension (Cm) | 8x8x10 Cm |
| Curve Type | C |
| Operating Voltage (AC Volts) | 415V AC |
Key Features
- MCB have been manufactured from PBT material which is a flame retardant body known for its extra strength & better insulation property and silver graphite anti weld contact tips which ensures long operating time of the device .
- High terminal capacity of 35 sq.mm that allows using aluminium conductors or bus-bars for connection & Bi - connect termination that allows connection of either cable or busbar single strip copper for better flexibility
- SELVO MCB are designed in such a way that provide sufficient air circulation between MCB's fixed adjacent to each other and the grooves are provided so that air circulate around individual poles resulting in cooler operation
Product Description
Selvo C-40A Three Pole Neutral (TPN) MCB, GSELTPN12039 Is An Automatically Operated Electrical Switch That Prevents Electrical Circuits From The Flow Of Excess Current. SELVO MCB Has Been Accredited With ISO 9001:2015 Certification For Adhering To Its Excellent Quality Management System As Part Of Its Production Process. The SELVO MCB Is ISI Mark As Per IS/IEC 60898-1:2015 Awarded By BIS Which Ensures Vigilant & Strict Quality Control
- When the contacts are separated in event of overload or short circuit conditions, an electric arc is formed ,than arc goes up through the arc-runner and enters into arc splitters and finally quenched
- MCB's are provided with combi-head screws which has both the standard slots that can be tightened by the standard screw drivers . The maximum tightening torque is 2Nm
- MCB's protect equipment or appliances from generation of high current of 10KA
- MCB's are designed with rapid arc quenching mechanism. It operates with high speed mechanism in which electro dynamic forces are setup by the heavy current due to short circuit , separating the contacts several times faster before it could reach the peak value , thus suppressing the high current .
- Mid-trip functionality, which is an inbuilt feature reflecting the difference between OFF and trip (at time of fault) of MCB
- Available in SP,SPN,DP,TP,TPN,FP versions.
- Easily mounted on the din rail ( standard size of din rail is 35 mm) using Bi stable din clip (Shown in black )and MCB can be easily fixed and removed from din rail in the distribution board
- SELVO MCB's are designed in such a way that they comprise finger-proof terminals which eradicate the chances of accidental contact with live part that ensures the safety of installer
