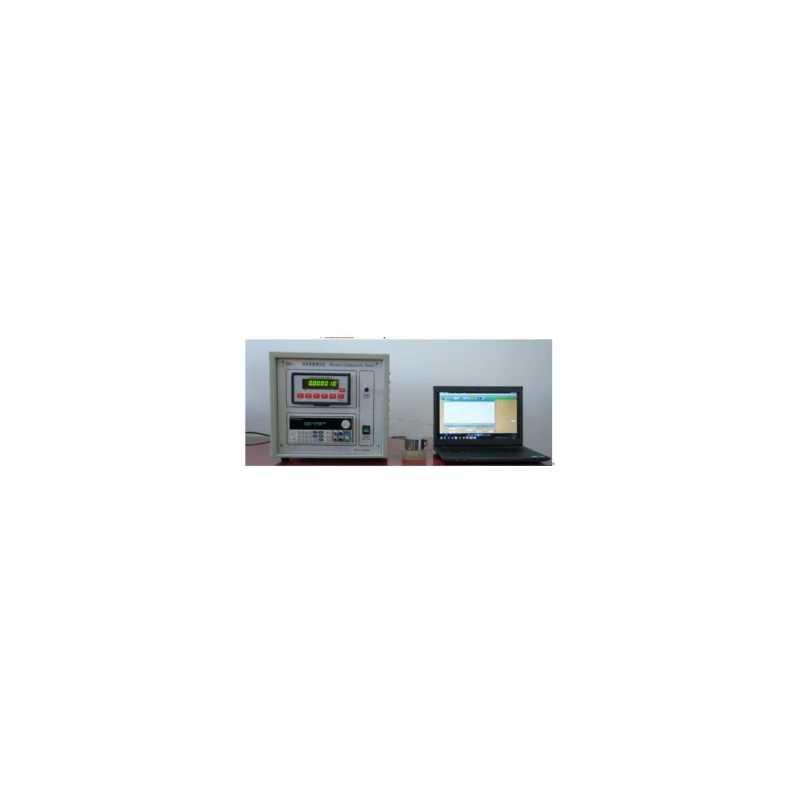

Multi-function Fast Thermal Conductivity Tester (Transient Plane Heat Source Method Hotdisk Method) TCM-DRE-III

Name: Multi-function Fast Thermal Conductivity Tester (Transient Plane Heat Source Method Hotdisk Method) TCM-DRE-III
Brand: XiangYi
SKU: ABYXH
Price: 11.59 USD
Availability: InStock



SKU ABYXH Category Conductivity Meter Brand XiangYi Condition New

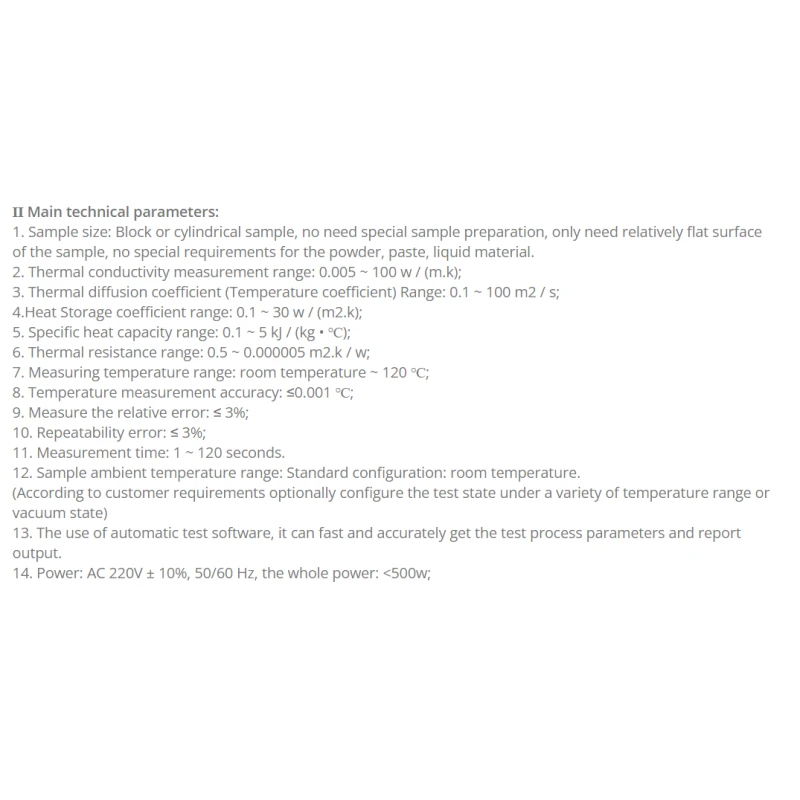

Specifications

Power Supply	AC 220V +- 10% 50/60 Hz the whole power Less Than 500w
Model	TCM-DRE-III
Measurement time	1 ~ 120 seconds
Measuring temperature range	room temperature ~ 120 Degree C
Thermal conductivity measurement range	0.005~100 w/ (m.k)
Thermal resistance range	0.5~0.000005 m2.k/w
Measure the relative error	Less Than - 3%

Key Features

Mainly measure the thermal conductivity, temperature coefficient (thermal diffusivity) and specific heat, heat storage coefficient and thermal resistance of solid, rock and soil, powder, liquid, paste, coating, film and anisotropic materials

Product Description

Multi-function Fast Thermal Conductivity Tester (Transient Plane Heat Source Method, Hotdisk Method), TCM-DRE-III, This series of Thermal conductivity instrument uses transient plane heat source method, the instrument based on TPS transient plane heat source technology, with Hot Disk as the probe thermal conductivity tester. The hot Disk method has the following advantages:(1) direct measurement of heat transfer, you can save a lot of time;(2) will not be the same as the static method by the impact of thermal resistance;(3) No special sample preparation is required, for the solid material, only need the relatively flat surface of the sample. It has the advantages of fast measurement speed, wide application range, and the ability to successfully avoid the influence of natural convection during the experiment. It is the popular test method. Equipment reference standard: ISO 22007-2 2008Composite materials: glass composite CRC, cement enhanced polyphony board, sandwich concrete, fiberglass panel composite plate, paper cellular plate

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The thermal conductivity measurement range of this model is from 0.005 to 100 W/(m·K).

It can measure temperatures from room temperature up to 120 degrees Celsius.

The measurement time ranges from 1 to 120 seconds.

It requires an AC power supply of 220V ± 10% at 50/60 Hz, with a total power consumption of less than 500W.

This unit can measure thermal properties of solid, rock, soil, powder, liquid, paste, coating, film, and anisotropic materials.

The thermal resistance range is from 0.5 to 0.000005 m²·K/W.

The relative error for measurements is less than -3%.

No special sample preparation is required; for solid materials, only a relatively flat surface of the sample is needed.

It references ISO 22007-2:2008 for its thermal conductivity measurements.

Yes, it is designed to successfully avoid the influence of natural convection during measurements.

The Hot Disk method allows for direct measurement of heat transfer, saving time, and eliminates the impact of thermal resistance found in static methods.

It is suitable for a wide range of applications, particularly in measuring thermal properties of various materials including composites and construction materials.
