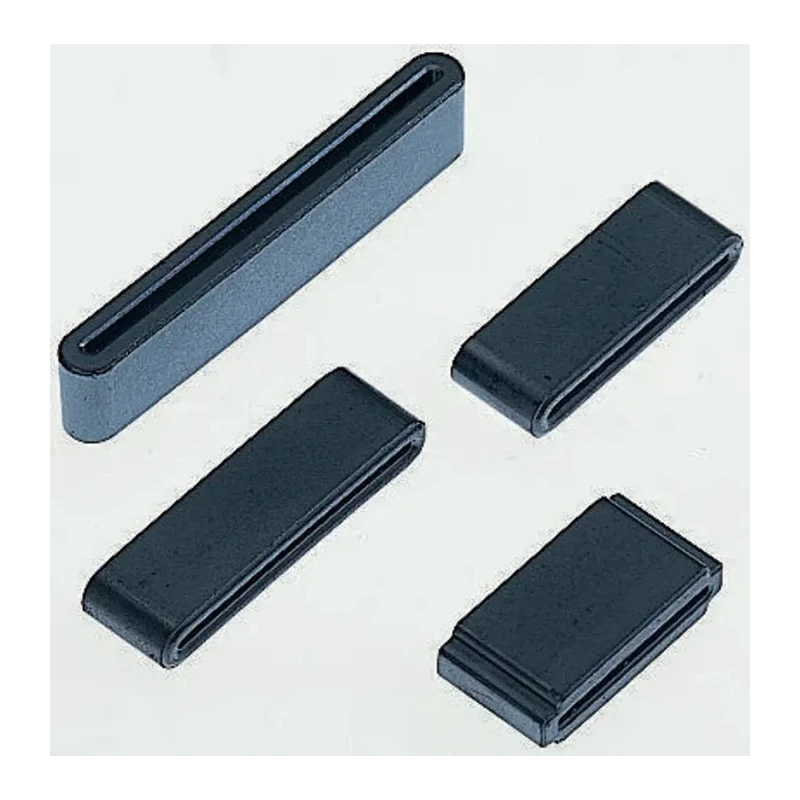

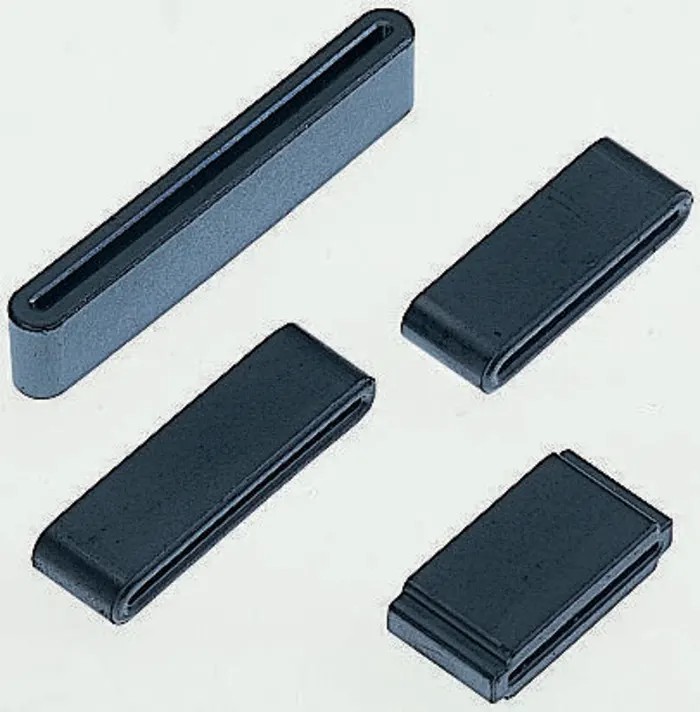

Wurth Elektronik Flat Cable Ferrite Core 4W620 for Flat Cable up to 26 Wires 1.3 mm Internal Height 34.8 mm Internal 7427217

Wurth Elektronik 7427217 Flat Cable Ferrite is a high-quality EMI filter core designed specifically for flat cable applications with up to 26 wires.

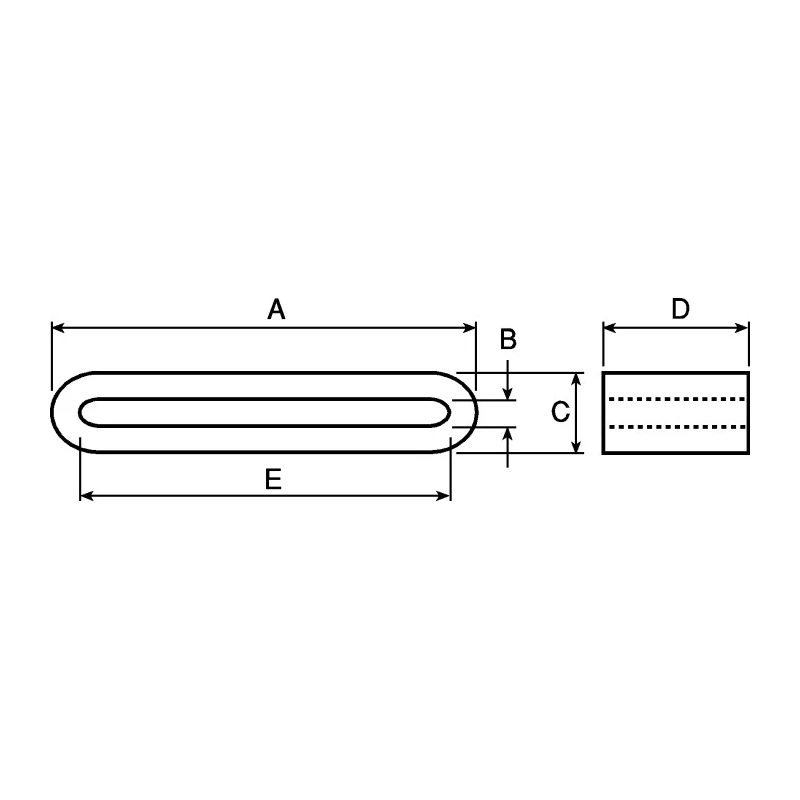

The ferrite core features an internal height of 1.3 mm and an internal width of 34.8 mm, providing precise fitment for ribbon cables to effectively suppress electromagnetic interference in digital devices and display controllers.

Constructed from 4W620 material, it offers an impedance of 55 Ω at 100 MHz, ensuring optimal noise suppression performance. This ferrite core has a compact external dimension of 40 mm width, 10 mm depth, and 6.5 mm height, and is non-openable, assuring firm placement on cables during assembly.

The operating temperature range for this product spans from -25°C to +125°C, making it suitable for various industrial and consumer electronics environments. Installation involves sliding the ferrite core onto the flat cable before attaching connectors; it can be held securely in place using heat shrink tubing or adhesive materials.

Constructed from 4W620 material for effective EMI filtering. Impedance of 55 Ω at 100 MHz to reduce interference. Non-openable compact ferrite design for secure cable fitting. External dimensions are 40 mm width, 10 mm depth, and 6.5 mm height.

Suitable for general electronics and digital device ribbon cable interference suppression. Operating temperature range from -25°C to +125°C. Easy to install with heat shrink sleeving or glue.

This product is ideal for electronics manufacturing, digital device design, telecommunications, and general EMI management applications. It supports improved signal integrity and device reliability in complex Cable assemblies.
