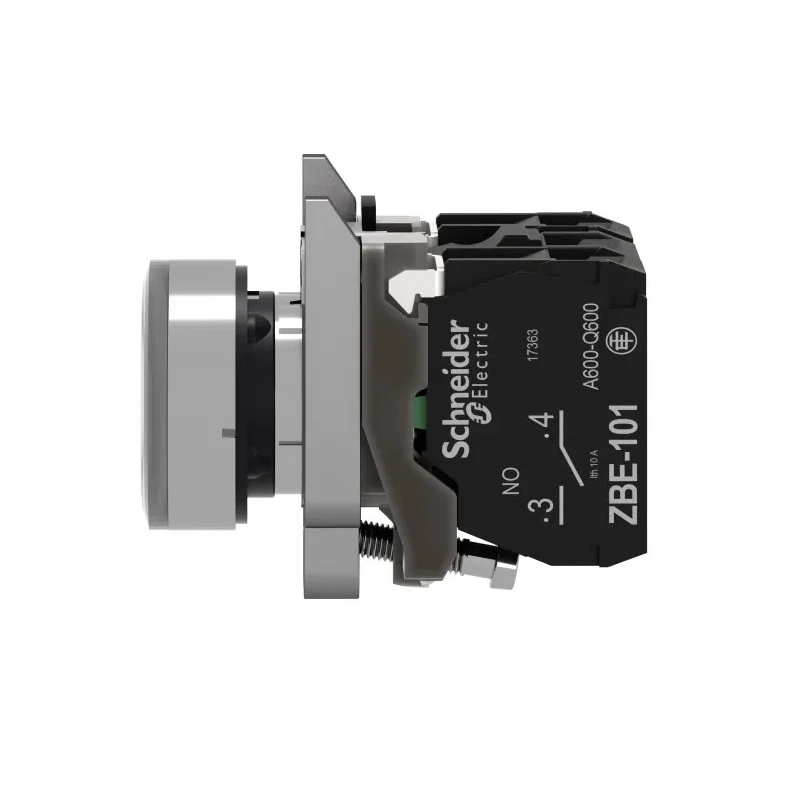

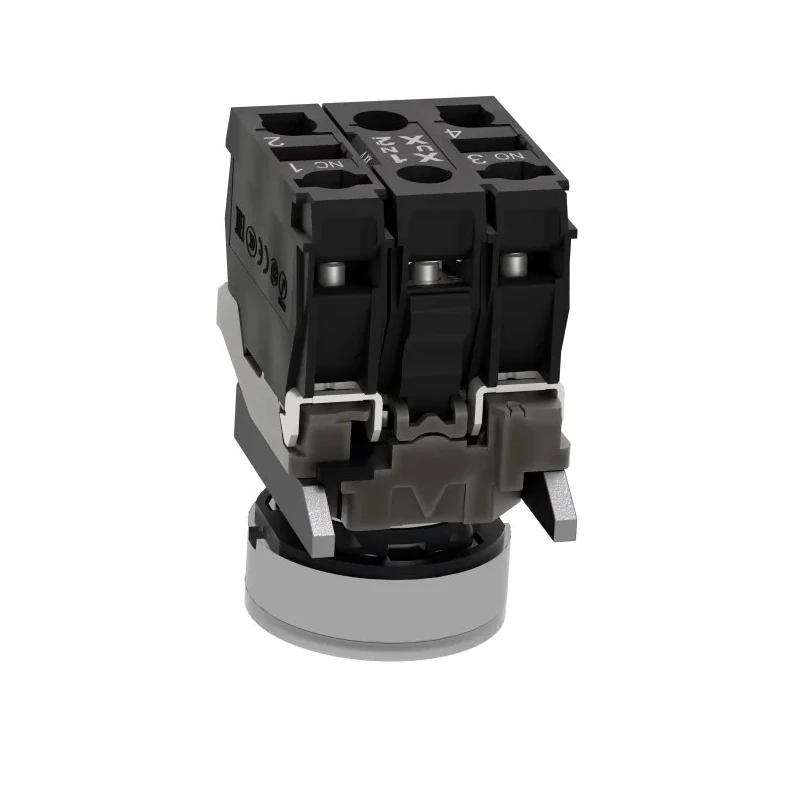

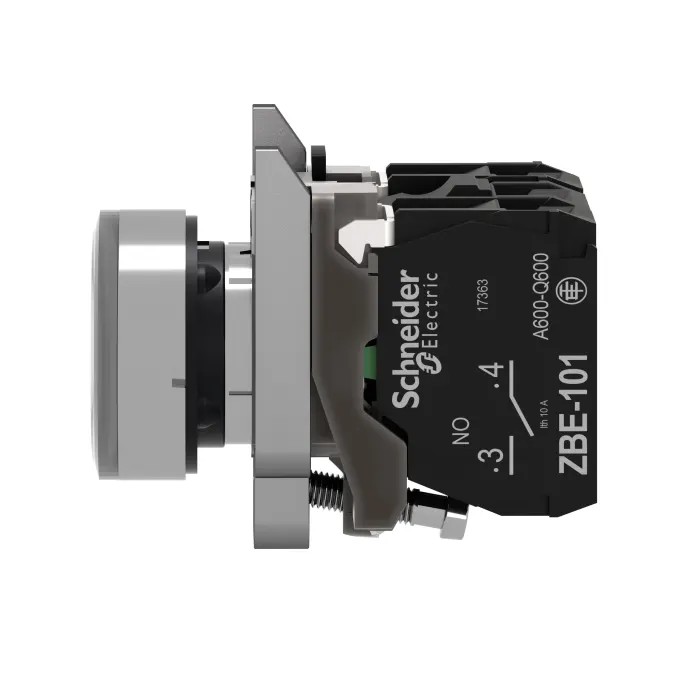

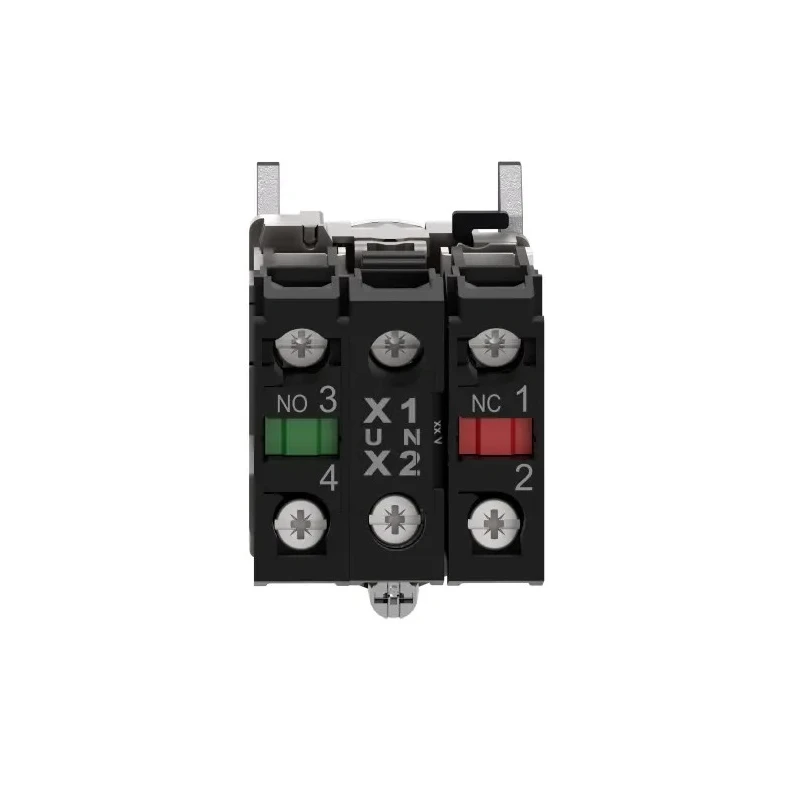

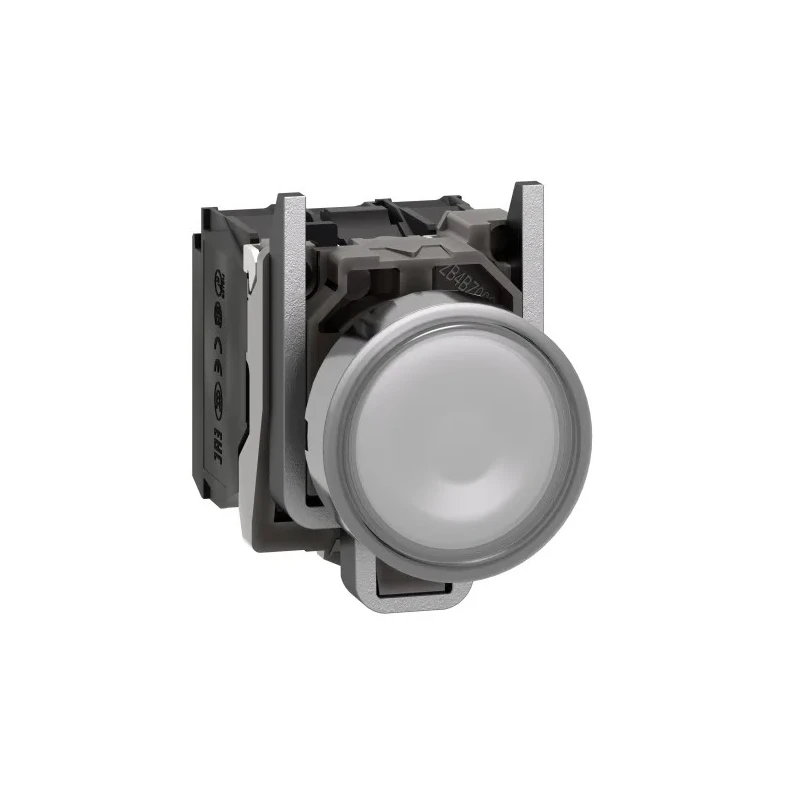

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW31B5

Name: Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW31B5
Brand: Schneider Electric
SKU: 342071
Price: 4481.78 INR
Availability: InStock



Category Push Button Switches & Components Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Height	47mm
Length	57mm
Model	XB4BW31B5
IP Rating	IP66, IP67, IP69K
Width	30mm
Mount Type	Panel
Series	Harmony XB4
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
LED Colour	White
Switch Operation	Spring Return
Actuator Colour	White
Contact DC Voltage	600V
Actuator Style	Round
Switch Contact Current	0.1A
Better World Claim	Repairable by the End User
Legend	Blank

Key Features

Illuminated design improves visibility in low-light environments.
Spring return operation ensures rapid return to default position.
SPDT contact configuration provides flexible switching capabilities.
Panel mount with a 22 mm cutout size for easy installation.
Rated for operating temperatures from -25°C to 70°C.
Robust construction with IP66, IP67, and IP69K protection against dust and water.
Chrome plated metal actuator ensures durability and corrosion resistance.
Suitable for industrial automation and control panel applications.

Product Description

Schneider Electric XB4BW31B5 is an illuminated push button switch from the Harmony XB4 series, designed for panel mounting with a 22 mm diameter cutout. It features a spring return mechanism and a single-pole double-throw (SPDT) contact configuration, making it suitable for controlling multiple circuits efficiently in industrial environments.

The push button features a white actuator with LED illumination, enhancing visibility and operator safety in low-light conditions. It is constructed with a robust chromium plated metal actuator that provides long-lasting durability and resistance to corrosion, ensuring reliable function in demanding industrial settings.

Rated for contact voltages up to 600 V AC/DC and a contact current of 0.1 A, it operates reliably across a temperature range of -25°C to 70°C. Its sealing meets IP66, IP67, and IP69K standards, guaranteeing protection against dust ingress and high-pressure water jets, making it suitable for outdoor and harsh environment applications.

This push button switch is ideal for use in control panels, emergency stop systems, and machinery start/stop interfaces, particularly within automation and manufacturing industries. Its high mechanical endurance of 10 million operational cycles and electrical durability of 1 million cycles ensure a long service life.

Illuminated design improves visibility in low-light environments. Spring return operation ensures rapid return to default position. SPDT contact configuration provides flexible switching capabilities. Panel mount with a 22 mm cutout size for easy installation.

Rated for operating temperatures from -25°C to 70°C. Robust construction with IP66, IP67, and IP69K protection against dust and water. Chrome plated metal actuator ensures durability and corrosion resistance. Suitable for industrial automation and control panel applications.

White LED for clear indication and improved operator interface. Rated for contact voltages up to 600 V AC/DC and 0.1 A contact current. Designed for high mechanical endurance with up to 10 million cycles. Manufactured in France ensuring high-quality standards.
