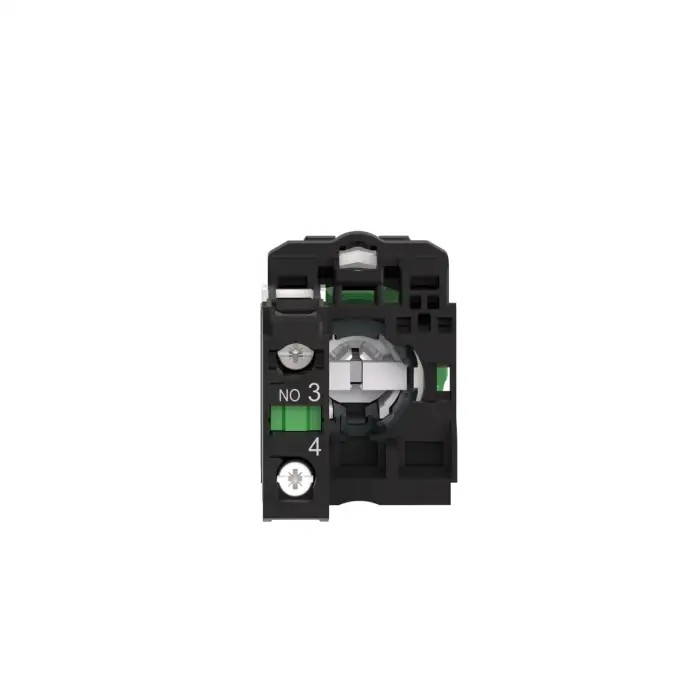

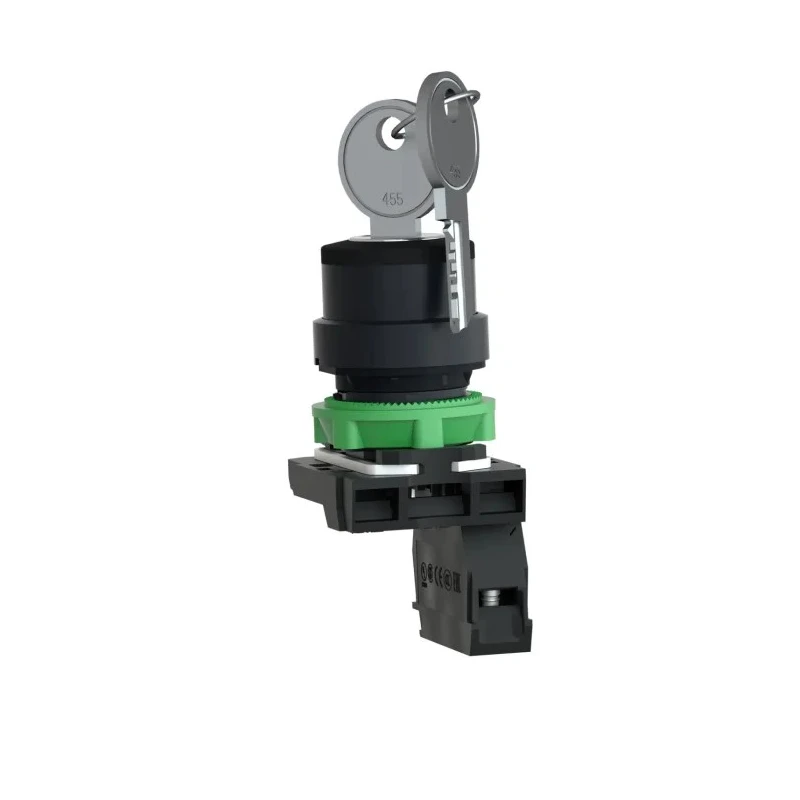

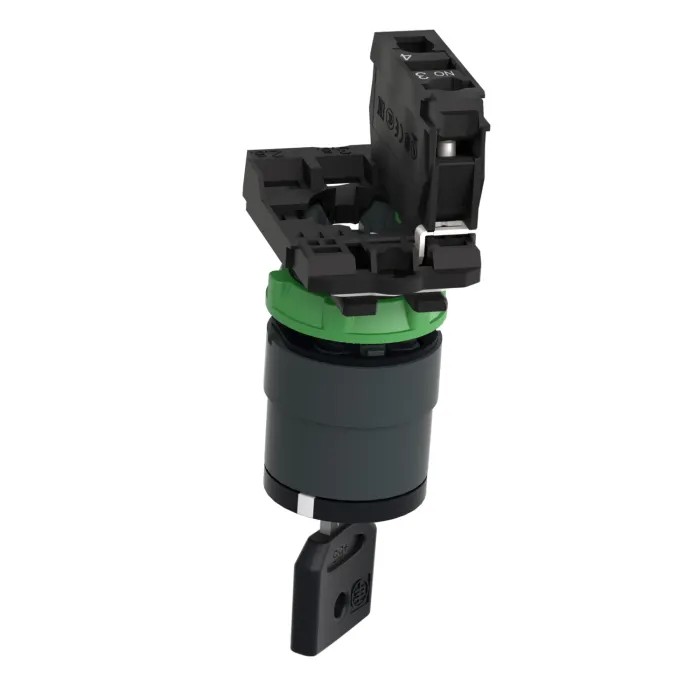

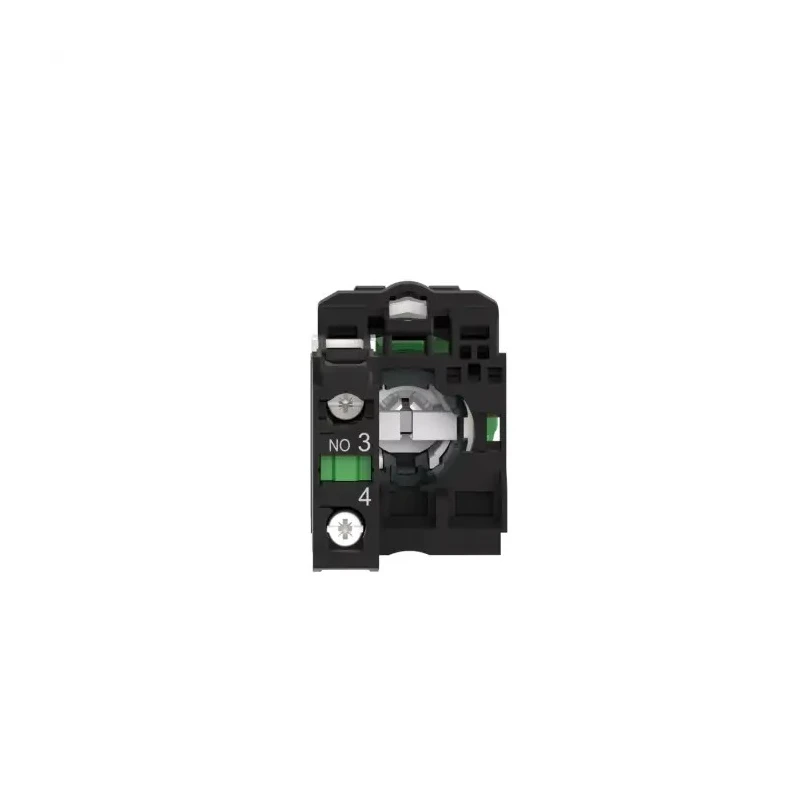

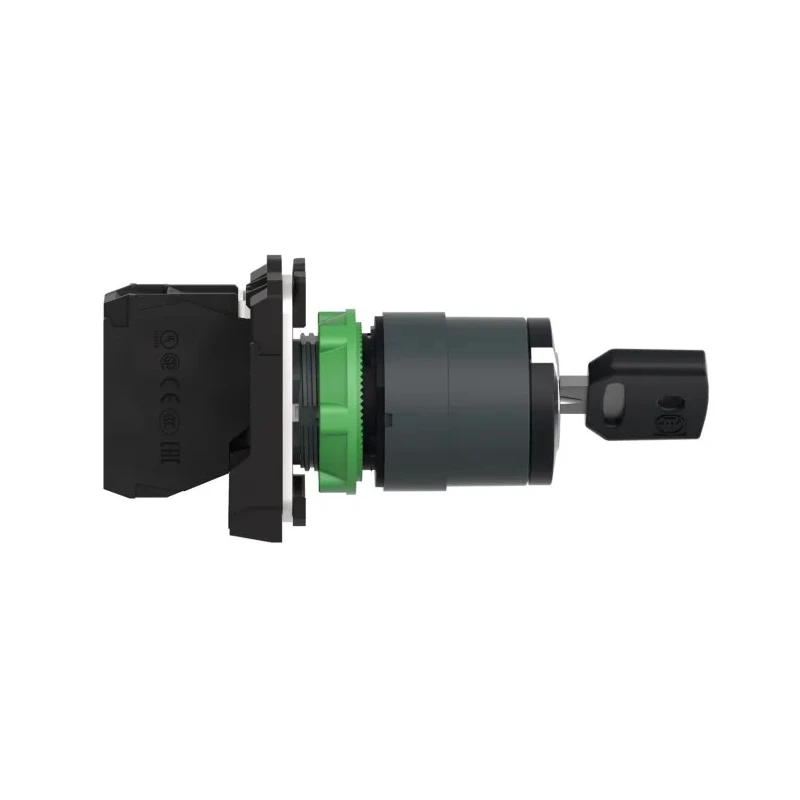

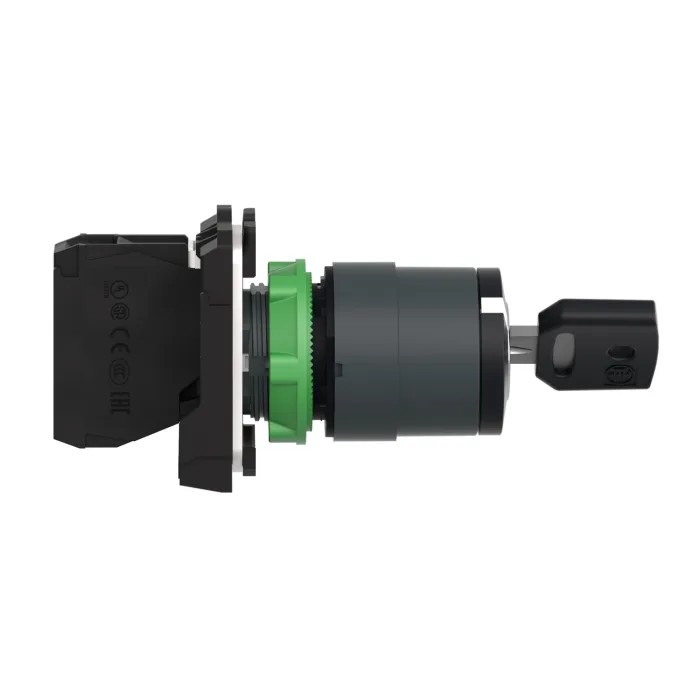

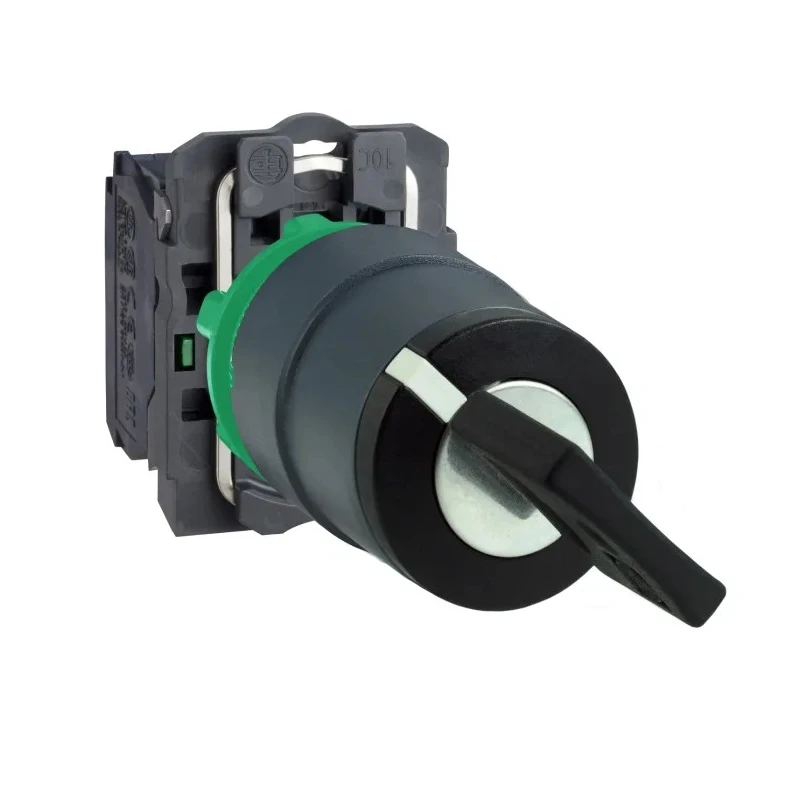

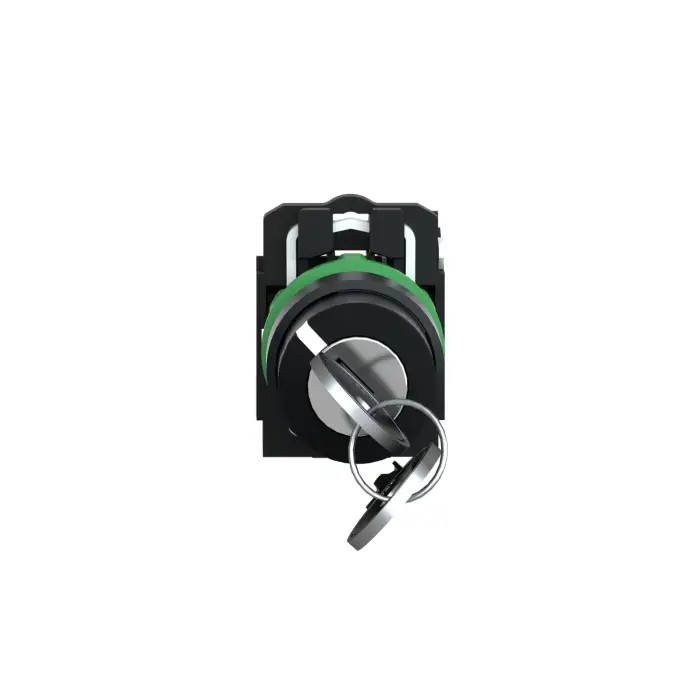

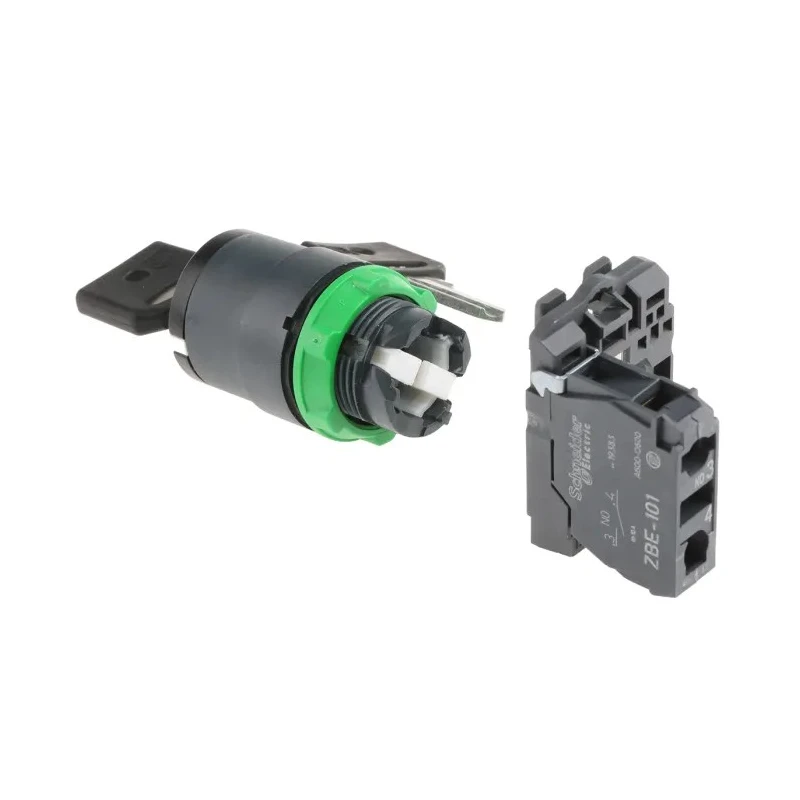

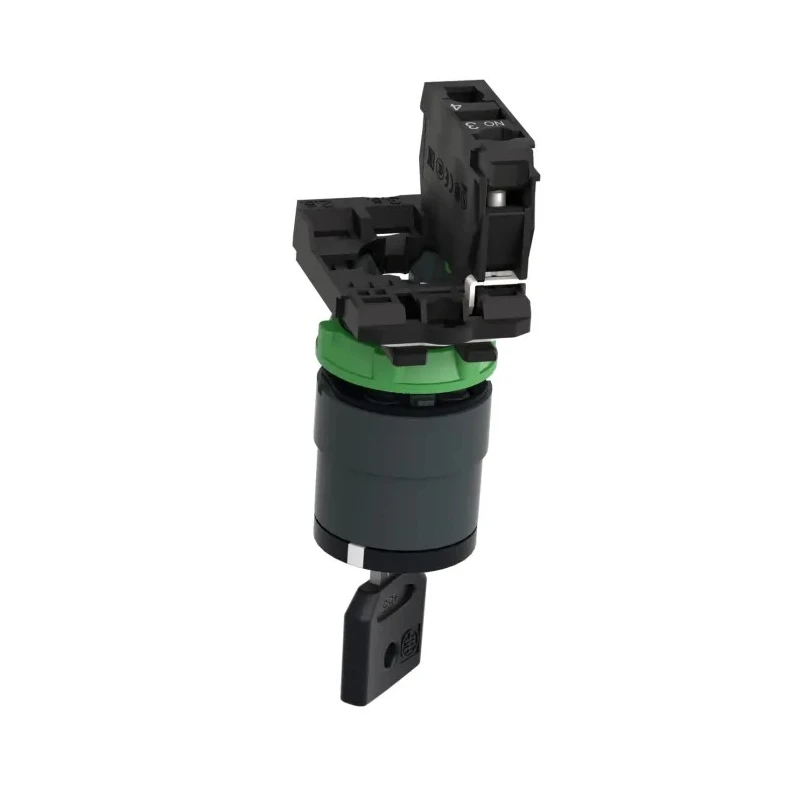

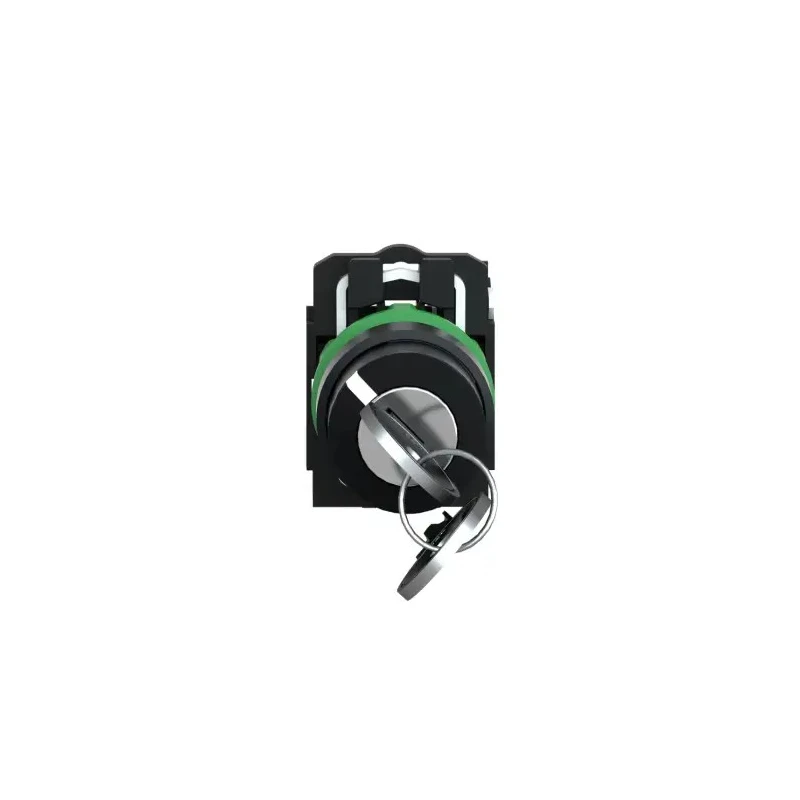

Schneider Electric Key Spring Return Rotary Switch Selector Switch 1 NO 2 Positions XB5AG61
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XB5AG61 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Series | Harmony XB5 |
| Contact Configuration | 1 NO |
| Actuator Type | Key, Spring Return |
| Number of Positions | 2 |
| Terminal type | Screw Clamp |
| Switch Operation | Slow Break |
| Better World Claim | Repairable by the End User |
| Angle of Throw | 90 ° |
Key Features
- The switch features a 90° angle of throw for precise control operation.
- Equipped with spring-return actuator ensuring a momentary selection safety.
- Rated with IP66, IP67, IP69, and IP69K protection suitable for harsh and high-pressure washdown environments.
- Screw clamp terminals accommodate wiring up to 2 x 1.5 mm² for reliable electrical connection.
- Designed to meet multiple international standards including EN/IEC 60947 and UL 508.
- Mechanical and electrical endurance rated up to 1,000,000 operation cycles for durability.
- Contact configuration includes 1 NO slow-break contact for controlled make and break performance.
- Temperature range operating between -40 °C to 70 °C for versatile deployment.
Product Description
Schneider Electric XB5AG61 Key Spring Return Rotary Switch Selector Switch is a key-operated rotary selector switch with 2 positions and 1 Normally Open contact, designed for robust panel-mount industrial control applications. It features a spring-return key actuator with a 90° angle of throw, providing secure and intentional control actuation.
This selector switch is part of the Harmony XB5 series, suitable for harsh environments, including washdown areas in food and pharmaceutical plants due to its IP66, IP67, IP69, and IP69K sealing standards. The switch terminals use screw clamps capable of accepting wiring up to 2 x 1.5 mm², assuring secure electrical connections.
Electrically and mechanically rated for up to 1,000,000 cycles, the switch ensures long service life and reliable operation. It complies with stringent international standards such as EN/IEC 60947 series, UL 508, CSA C22.2 No. 14, and JIS C 4520, ensuring safety and quality. Rated for industrial voltage insulation up to 600 V and impulse withstand of 6 kV, it provides enhanced resilience for demanding control applications.
The slow-break 1 NO contact provides controlled make and break performance. The spring-return mechanism supports momentary selection safety by returning the keyto the default position.
Suitable industrial uses include motor starter control with restricted manual access, mode selection for automated assembly stations, and marine/offshore panel installations needing certified protection. The removable keylock profile ensures controlled key removal for authorized operations only.
Operating temperature range of -40 °C to 70 °C alongside endurance against vibration and shock makes it ideal in diverse industrial environments. The switch is a Better World product and is repairable by the end user, contributing to sustainability and longevity.
Package contains one Schneider Electric XB5AG61 selector switch with key spring return actuator. Explore more reliable and durable Selector Switches in our Electronics & Electricals Switches category at EnvMart for various industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an IP rating of IP66, IP67, IP69, and IP69K, making it suitable for harsh and high-pressure washdown environments.
It is rated for up to 1,000,000 operation cycles for both mechanical and electrical endurance, ensuring long service life.
The switch features a contact configuration of 1 Normally Open (NO) slow-break contact, which provides controlled make and break performance.
The operating temperature range is from -40 °C to 70 °C, allowing for versatile deployment in various environments.
It uses a key-operated spring return actuator with a 90° angle of throw for precise control operation.
The switch is equipped with screw clamp terminals that can accommodate wiring up to 2 x 1.5 mm² for reliable electrical connections.
It complies with multiple international standards including EN/IEC 60947, UL 508, CSA C22.2 No. 14, and JIS C 4520, ensuring safety and quality.
This model has 2 positions, allowing for versatile control applications in industrial settings.
The spring-return mechanism supports momentary selection safety by returning the key to the default position after actuation.
It is suitable for industrial uses such as motor starter control with restricted manual access and mode selection for automated assembly stations.
The country of origin for this product is France.
Yes, this model is classified as a Better World product and is repairable by the end user, contributing to sustainability and longevity.
