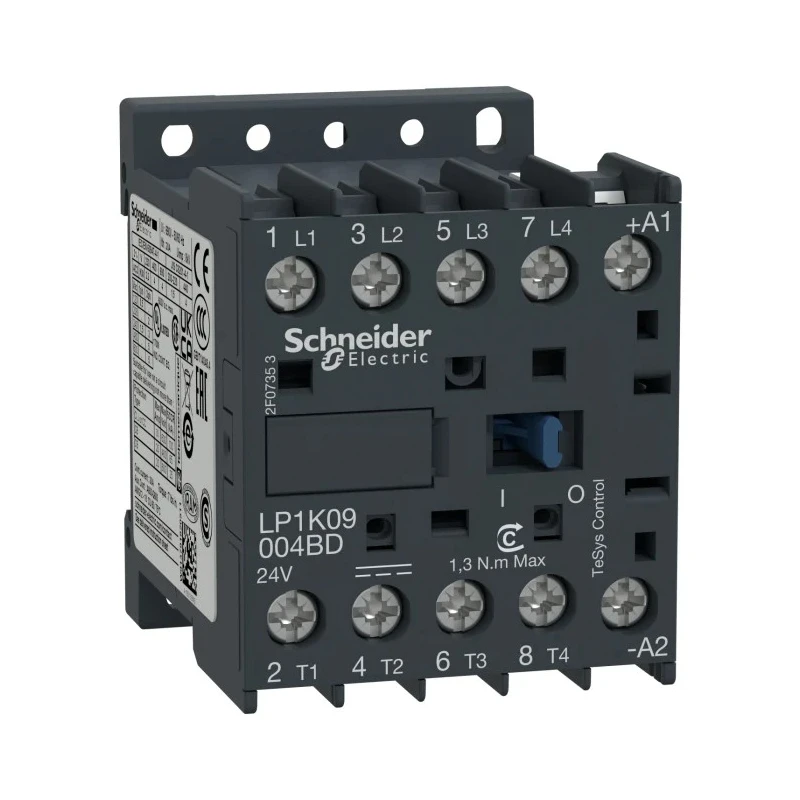

Schneider Electric LP1K Contactor, 24V dc Coil, 4-Pole, 20A, 3W Power, 440V ac LP1K09004BD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LP1K09004BD |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LP1K |
| Power Rating | 3W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 440V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 4 |
Key Features
- The contactor operates at 24V dc coil voltage and has a power rating of 3W.
- Features 4 normally open contacts with screw clamp terminals for secure connection.
- Suitable for industrial motors, lighting circuits, HVAC equipment, and electrical systems.
- Compact and space-saving design with dimensions 58mm (L) x 45mm (W) x 57mm (D).
- Designed to operate under harsh environments between -25°C and 50°C.
- Mounts easily on DIN rail for versatile installation options.
- Certified to multiple international standards including UL, IEC, CSA, CCC, RoHS and EAC.
- Built for reliability with lifespan reaching 10 million cycles and withstands up to 3600 cycles per hour.
Product Description
Schneider Electric LP1K09004BD is a high-quality TeSys K line contactor with a 24V dc coil, featuring 4 poles configured as 4 normally open contacts (4 NO). This device is engineered for controlling non-inductive loads and motors with a continuous current rating of 20A at 440V ac.
The contactor is designed with a screw clamp terminal type, providing secure electrical connections. Its compact dimensions (58mm length, 45mm width, 57mm depth) make it ideal for space-constrained electrical panels and industrial control systems.
Operating within an ambient temperature range from -25°C to +50°C, this contactor demonstrates robustness suitable for harsh industrial environments. It can sustain a high switching frequency of up to 600 cycles per hour and has a long mechanical and electrical life expectancy of up to 10 million operations, ensuring durability and consistent performance.
The LP1K09004BD is compatible with DIN rail mounting or screw fixing installation methods. It is backed by multiple international certifications including UL, IEC, CSA, CCC, and meets environmental regulations such as RoHS and REACh under the Schneider Electric Better World initiative, emphasizing sustainability and ease of disassembly.
The coil voltage rating is 24V dc with a power consumption of 3W. Rated contact voltage is 440V ac and rated contact current is 20A. Suitable for motor control and resistive load applications. Its IP20 rating provides protection against accidental finger contact and solid foreign objects above 12mm.
Compact design helps reduce panel size and wiring complexity. Designed for use in industrial motors, lighting circuits, HVAC systems, and general electrical automation. Country of origin: France.
This Schneider Electric contactor LP1K09004BD is a reliable solution for industrial automation requiring precise switching, energy efficiency, and certified quality. Explore more options and find additional Schneider Electric automation and control products on EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating for this model is 24V DC.
It can handle a maximum contact voltage of 440V AC.
The continuous current rating is 20A.
This contactor has 4 poles configured as 4 normally open contacts (4 NO).
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
The power rating is 3W.
It operates within an ambient temperature range of -25°C to +50°C.
It can be mounted on a DIN rail or via screw fixing.
It uses screw clamp terminals for secure electrical connections.
It is suitable for motor control, resistive loads, industrial motors, lighting circuits, and HVAC systems.
This contactor is certified to multiple international standards including UL, IEC, CSA, CCC, and RoHS.
It has a lifespan of up to 10 million cycles and can withstand up to 600 cycles per hour.
