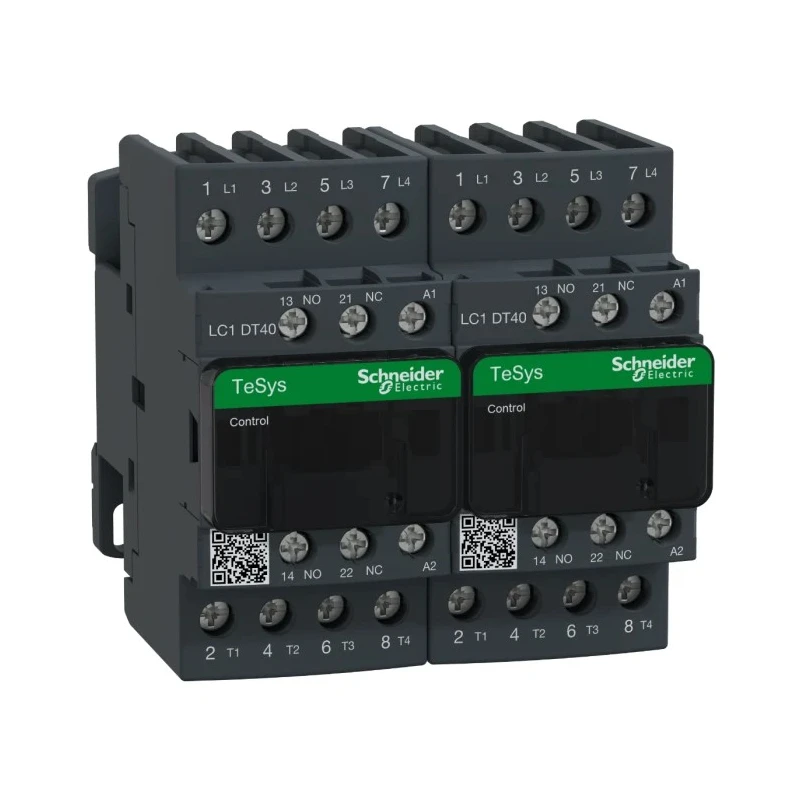

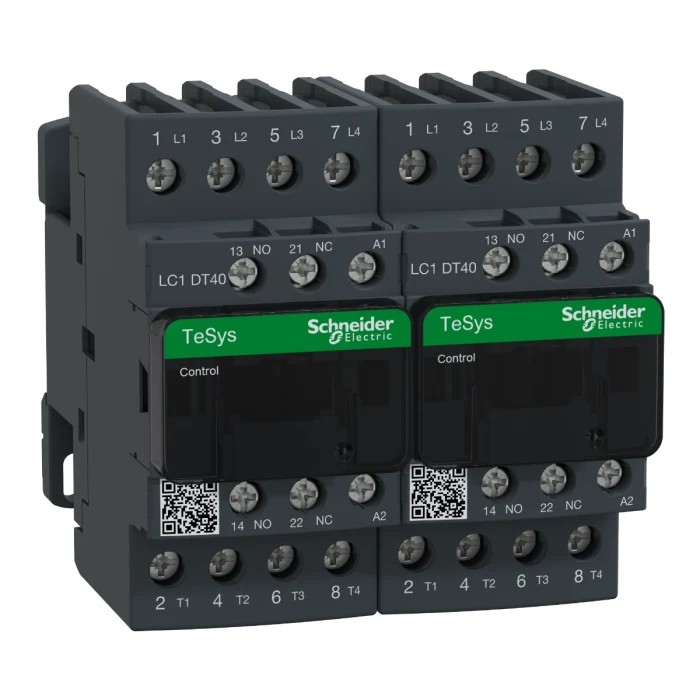

Schneider Electric Motor Control Contactor LC2DT40P7 230V AC Coil 4-Pole 40A 3.2W Power Rating 4 NO Contacts 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 91mm |
| Model | LC2DT40P7 |
| Depth | 98mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 3.2W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EAC, IEC, RoHS, UL, CCC, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a 230V AC coil and screw clamp terminals for secure connections.
- Contains 4 normally open (NO) contacts and 2 auxiliary contacts with 2 NO and 2 NC configurations.
- Rated for a contact voltage of 690V AC and a power rating of 3.2 W at 230V AC.
- Designed for motor control, resistive loads, and reversing functions in automation systems.
- Operates reliably between -25°C and 50°C environmental temperatures.
- Complies with multiple international standards including EAC, IEC, RoHS, UL, CCC, and CSA.
- Manufactured in France with a design that supports disassembly for better sustainability.
Product Description
Schneider Electric LC2DT40P7 is a high-performance motor control contactor featuring a 230V AC coil voltage ideal for industrial and automation applications. This 4-pole contactor delivers a contact current of 40A, supporting resistive loads and motor reversing functions. Its power rating is 3.2 W at 230V AC, ensuring efficient operation with low power consumption.
Equipped with screw clamp terminals for secure and reliable electrical connections, this contactor includes 4 normally open (NO) main contacts and 2 auxiliary contacts configured as 2 NO and 2 NC for auxiliary circuit control.
The device is designed for DIN rail mounting, facilitating easy installation and maintenance within industrial control panels. Compact dimensions of 91mm length, 90mm width, and 98mm depth make it suitable for space-constrained setups.
Operating reliably across a wide temperature range from -25°C to 50°C, it is built to comply with rigorous international standards including EAC, IEC, RoHS, UL, CCC, and CSA, guaranteeing safety and performance globally.
Manufactured in France, this contactor includes a Better World claim for being designed for disassembly, reflecting Schneider Electric’s commitment to sustainability and environmental responsibility.
230V AC coil voltage with screw terminal connections. 4 poles and 40A contact current rated for industrial loads. Auxiliary contacts provide 2 NO and 2 NC configurations for control circuits. Compact DIN rail mount design for easy integration.
Wide operating temperature range ensures versatility. Compliant with major international electrical and safety standards. Better World product designed with sustainability in mind.
This contactor is suitable for a variety of industrial applications including motor control, automation, HVAC systems, manufacturing equipment, and resistive load switching. It ensures robust performance, reliability, and compliance for demanding control environments.
Explore our extensive range of Schneider Electric automation and control gear products on EnvMart for optimized industrial solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 3.2 W at 230V AC.
It is rated for a maximum contact voltage of 690V AC.
This contactor features 4 poles.
The contact current rating for this unit is 40A.
The dimensions are 91mm in length, 90mm in width, and 98mm in depth.
It is equipped with screw terminals for secure connections.
It operates reliably between -25°C and 50°C.
This contactor is designed for DIN rail mounting, facilitating easy installation.
It includes 2 auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
It complies with EAC, IEC, RoHS, UL, CCC, and CSA standards.
It is suitable for motor control, resistive loads, and reversing functions in automation systems.
This model is manufactured in France.
