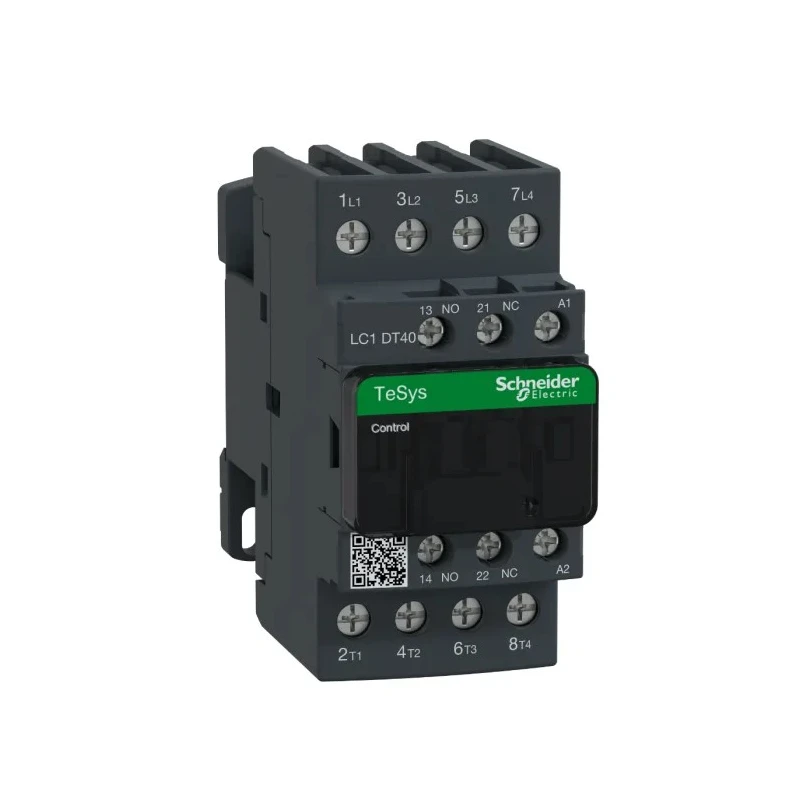

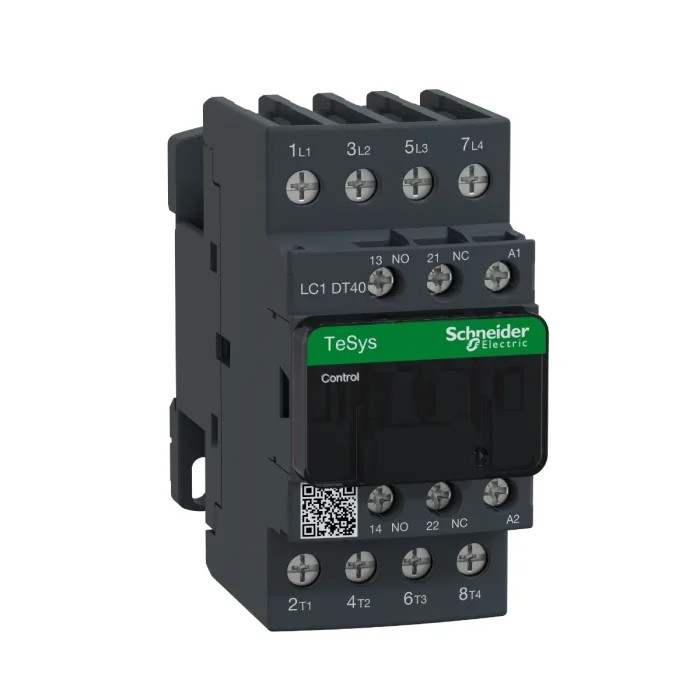

Schneider Electric TeSys D 4-Pole Contactor, 115V AC Coil, 40A, 3.2W Power Rating, 4 NO Contacts, 690V AC Contact LC1DT40FE7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT40FE7 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 3.2W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 115V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 115V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for reliable switching in motor starters and resistive load applications.
- Features a 4-pole configuration with 4 normally open (NO) contacts.
- Rated for 40A contact current and a contact voltage of 690V AC.
- Equipped with IP20 finger-safe screw terminals and clear international terminal markings.
- DIN rail mount type allows easy installation in control panels.
- Operational temperature range from -5°C to 60°C for versatile working conditions.
- Auxiliary contacts include 1 NO and 1 normally closed (NC) contact for extended control functions.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL certifications.
Product Description
Schneider Electric LC1DT40FE7 TeSys D series 4-pole contactor features a 115V AC coil with a power rating of 3.2W, suitable for motor control and resistive load applications. This contactor carries a current rating of 40A and is designed for use with contact voltages up to 690V AC, making it ideal for industrial automation and control systems.
The compact design includes IP20 finger-safe terminals with screw connections, allowing secure wiring and ease of installation. Terminal markings follow both North American and international standards. The device can be mounted using a DIN rail or panel-mounted with screws, offering flexibility in control panel integration.
This contactor incorporates 4 normally open (NO) main contacts with an additional two auxiliary contacts configured as 1 NO and 1 NC, providing extended operational functionality. It is engineered to endure shocks and vibrations while maintaining excellent reliability throughout its electrical and mechanical life.
Operating temperature ranges from -5°C to 60°C, suitable for varying industrial environments. As a Better World product, it is designed for easy disassembly and supports environmental sustainability initiatives. The contactor meets key international standards and certifications such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring compliance and safety.
Typical applications include use in motor starters, lifts, escalators, conveyors, compressors, pumps, mixers, and HVAC systems where reliable switching of resistive and motor loads is required. Utilisation categories cover AC-1 for resistive loads and AC-3 for squirrel cage motors where breaking occurs during running.
Designed for reliable switching in motor starters and resistive load applications. 4 pole contactor with 4 NO contacts for effective motor control. Rated for 40A contact current and 690V AC contact voltage. IP20 screw terminal connections with international markings.
DIN rail and panel mounting options for versatile installation. Operational temperature range from -5°C to 60°C. Auxiliary contacts configured as 1 NO and 1 NC for extended control. Compliant with CCC, CSA, EAC, IEC, RoHS, UL standards.
Better World product designed for disassembly and recycling. Explore the full range of Schneider Electric automation and control products at EnvMart for advanced industrial applications.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 3.2W.
It is rated for a contact current of 40A.
The contact voltage is rated up to 690V AC.
It can be mounted on a DIN rail or panel-mounted with screws, providing flexibility in installation.
The operational temperature range is from -5°C to 60°C.
This contactor features a 4-pole configuration.
It is equipped with IP20 finger-safe screw terminals with international terminal markings.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It is suitable for motor control and resistive load applications, including lifts, escalators, conveyors, and HVAC systems.
The depth is 99mm and the width is 45mm.
The coil voltage is rated at 115V AC.
