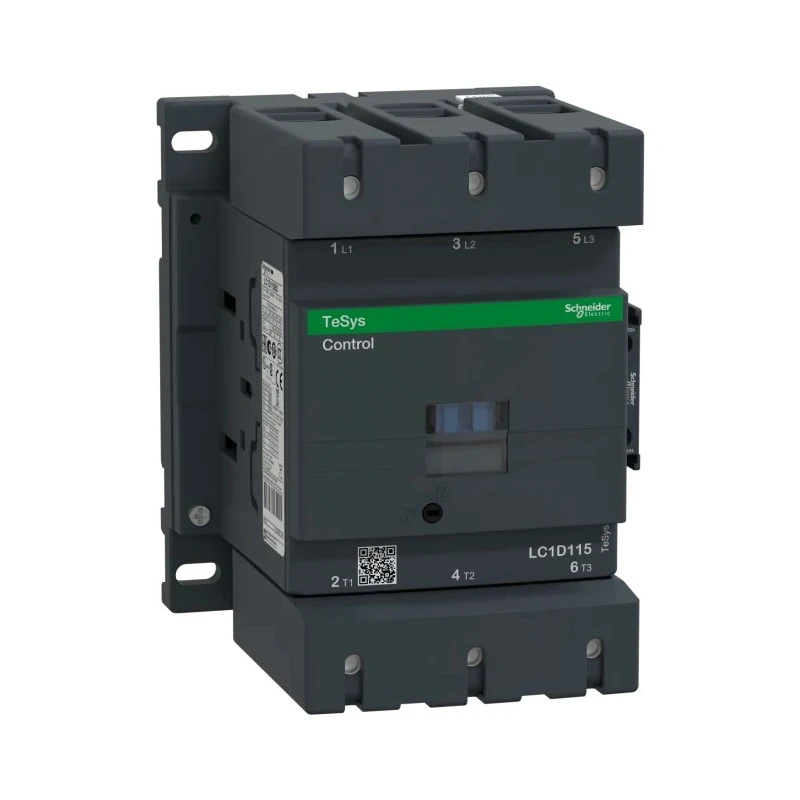

Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 115 A, 55 kW, 3 NO Auxiliary Contacts, 1kV AC LC1D115BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D115BD |
| Depth | 132mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 55kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Equipped with 3 normally open poles for reliable switching.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC to enhance control flexibility.
- Designed for a control circuit voltage of 24V DC and contact voltage of 1kV AC.
- Compact dimensions with 158mm length, 120mm width, and 132mm depth allow easy panel mounting.
- Suitable for operating temperatures ranging from -40°C to 60°C for versatile industrial environments.
- Mountable on DIN rail ensuring quick and secure installation.
- Rated operational current Ie is 115A, supporting motor loads up to 55 kW.
- Certified per multiple standards including IEC, UL, CSA, CCC, EAC, and RoHS compliance.
Product Description
The Schneider Electric LC1D115BD is a high-performance contactor designed specifically for motor control and resistive load applications. Featuring a 24V DC coil and compact dimensions (158mm length x 120mm width x 132mm depth), this 3-pole contactor supports a contact current of 115 A and power ratings up to 55 kW, making it suitable for a wide range of industrial scenarios.
It incorporates 3 normally open contacts along with 2 auxiliary contacts configured as 1 NO and 1 NC, where the normally closed auxiliary contact is mirror certified for enhanced reliability. The device supports a control circuit voltage of 24V DC and operates at contact voltages up to 1kV AC, ensuring stable performance under demanding electrical conditions.
This contactor is engineered for environments with temperatures from -40°C to 60°C and can be installed on a DIN rail for ease of mounting in compact control panels. The screw clamp terminals provide secure connections for both load and control wiring, and the device is capable of handling operational currents up to 115A.
Equipped with 3 normally open poles for high reliability in switching applications. Auxiliary contacts include 1 NO and 1 NC configuration, suitable for feedback and control circuits. Compliant with international standards including IEC, UL, CSA, CCC, EAC, and RoHS, supporting global industrial usage.
Mechanical durability with a lifespan of 8 million cycles reduces maintenance needs. Compact footprint fits well in crowded panels and control cabinets. Designed for motor starters and heavy-duty electrical loads up to 55 kW at 400V.
Green Premium compliant, free of mercury and polyvinyl chloride (PVC), supporting sustainable industrial practices.
Typical applications include manufacturing production lines, HVAC systems, factory automation, and general motor control tasks in industrial, commercial, and manufacturing environments. Its robust certification and compliance with multiple standards make the LC1D115BD a reliable choice for both new installations and upgrades.
Explore automation and control gear for your electrical projects with Schneider Electric’s innovative and durable Contactors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 1kV AC.
It supports a maximum power rating of 55 kW.
The dimensions are 158mm in length, 120mm in width, and 132mm in depth.
The rated operational current is 115A.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The control circuit voltage is 24V DC.
It operates within a temperature range of -40°C to 60°C.
This contactor is designed for DIN rail mounting, allowing for easy installation.
It is certified per multiple standards including IEC, UL, CSA, CCC, EAC, and RoHS compliance.
It is designed for motor control and resistive load applications.
The LC1D115BD features 3 poles.
It uses screw clamp terminals for secure connections.
