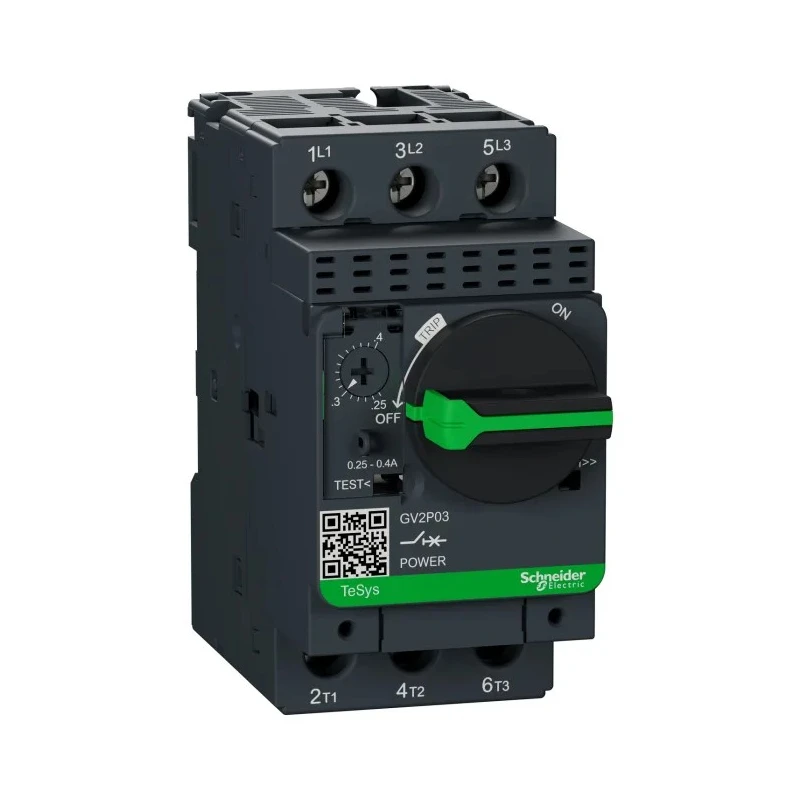

Schneider Electric Motor Protection Circuit Breaker TeSyS GV Series 250mA, 400mA Current Rating, 690V Supply Voltage GV2P03

Schneider Electric GV2P03 Motor Protection Circuit Breaker from the TeSyS GV Series is engineered to safeguard electrical motors against faults such as overload, short circuits, and electrical relay failures. Rated for supply voltage of 690V and current ratings of 250mA and 400mA, this device ensures robust motor protection using advanced thermal magnetic trip technology.

The product features a rotary knob style motor protection switch suitable for manual or local control operations. It supports the use of up to three padlocks to lock the N/C position, enhancing safety for industrial operations. With 100,000 cycles of electrical and mechanical durability, this lightweight circuit breaker is compact and ideal for installations in tight spaces.

Wiring convenience is provided through spring terminal and screw clamping options, enhancing reliable electrical connections. The IP20 degree of protection prevents access to live components, ensuring operator safety. Compliance with multiple international standards such as CCC, EN/IEC 60947-4-1, 60947-2, ATEX, CSA, and UL guarantees its suitability for industrial applications.

The device is designed to operate reliably within a temperature range of -20°C to 60°C and offers a three-pole configuration for complete motor protection. Typical applications include electrical motor control and protection in industrial, manufacturing, HVAC, and commercial settings. It can be easily mounted using screw or clip fixing on standard mounting rails for versatile assembly.

Designed to protect motors from overloads, short circuits, and relay shutdowns. Includes a rotary knob style control for manual or local operation. Supports locking of the N/C position using three padlocks for enhanced safety.

Lightweight, robust, and compact design suitable for tight installation spaces. Thermal-magnetic trip unit technology provides precise motor protection. Features spring terminal and screw clamping for secure wiring connections.

IP20 protection grade prevents direct contact with live parts. Certified and compliant with international standards including CCC, EN/IEC 60947 series, ATEX, CSA, UL, and more. Wide operating temperature range from -20 °C to 60 °C for versatile applications.

Three-pole design ensures thorough motor protection.

The Schneider Electric GV2P03 Motor Protection Circuit Breaker is an essential component for ensuring motor reliability in critical infrastructure and industrial processes. Explore more products in the Motor Protection Circuit Breaker category at EnvMart for comprehensive motor safety solutions.
