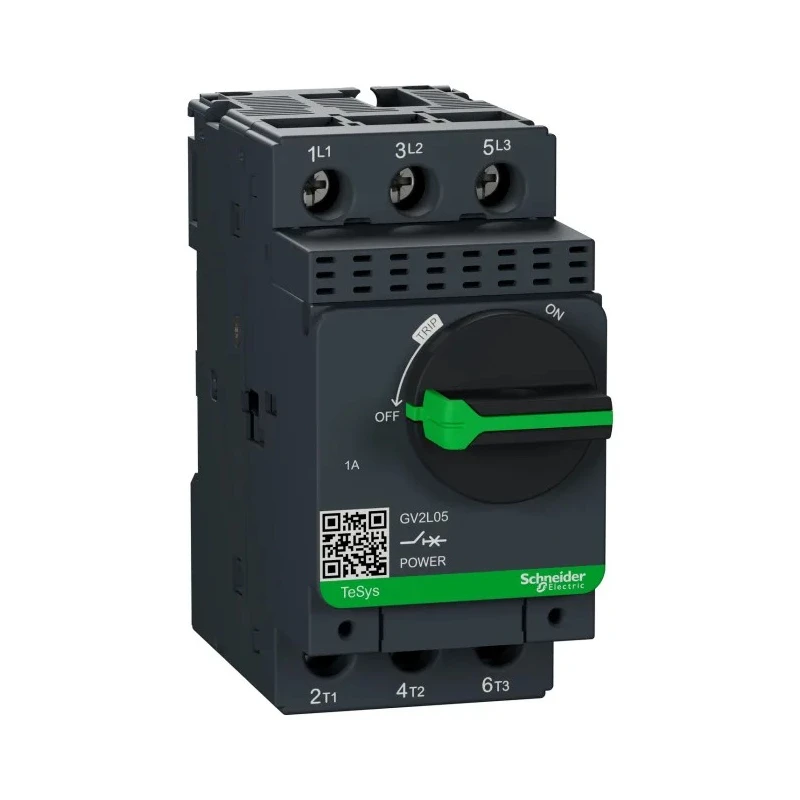

Schneider Electric Motor Protection Circuit Breaker TeSyS GV Series Thermal Magnetic 1A, 1.7A, 690V, 3 Poles GV2L05
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | GV2L05 |
| IP Rating | IP20 |
| Overall Length | 89mm |
| Current Rating | 1, 1.7A |
| Series | TeSyS GV |
| Overall Width | 44.5mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Thermal Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Overall Depth | 97mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- Compact and lightweight design ideal for installation in tight spaces.
- Equipped with thermal magnetic sensing technology for reliable motor protection.
- Features rotary knob control for local and manual operation.
- Supports remote tripping via integrated shunt trip coil functionality.
- Provides protection against overload, high voltage, and short circuits.
- Includes a lockable N/C position accommodating up to three padlocks for safety.
- Has spring terminal and screw clamp connectors ensuring secure electrical connections.
- Robust IP20 protection rating to prevent access to live parts improving operational safety.
Product Description
Schneider Electric GV2L05 Motor Protection Circuit Breaker from the TeSyS GV series is designed to safeguard electric motors by interrupting motor circuit faults including overloads and short circuits at a nominal voltage of 690V and a thermal magnetic sensing mechanism. This 3-pole breaker supports current ratings of 1A and 1.7A and is engineered for durability and compactness.
Its rotary knob provides intuitive manual control while allowing local operation or integration with contactors. The device enables remote trip control through a built-in shunt trip coil enhancing operational safety and control flexibility. It features spring terminals and screw clamp connectors for reliable and secure wiring installation.
Safety and protection are enforced through an IP20 rated enclosure that prevents direct access to live parts, minimizing risk during operation. The breaker also supports locking at the N/C position with up to three padlocks for added safety.
This motor protection circuit breaker complies with various international standards such as EN/IEC 60947-1, IEC 60947-2, IEC 60947-4-1, UL, CSA, and others, ensuring broad acceptance and robust performance. Its operating temperature range is from -20°C to 60°C, suitable for diverse industrial environments.
Typical applications include protection and control of electrical motors in industrial automation, manufacturing, HVAC systems, and other heavy-duty electrical installations. The compact design allows easy mounting either by screw or clip fixing on mounting rails.
Compact and lightweight ideal for restricted spaces. Thermal magnetic sensing for overload and short circuit protection. Rotary knob local/manual control with locking features. Remote trip operable via integrated shunt trip coil.
IP20 enclosure for user safety against live parts. Compliance with international electrical standards for reliability. Suitable for industrial, commercial, and manufacturing applications. Explore more products in the Motor Protection Circuit Breaker category at EnvMart to find suitable protection solutions for your motor control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has current ratings of 1A and 1.7A.
The maximum supply voltage is 690V.
It features 3 poles for effective motor protection.
It employs a thermal magnetic sensing mechanism for reliable motor protection against overloads and short circuits.
The GV2L05 has an IP20 protection rating, which prevents access to live parts.
The operating temperature range is from -20°C to 60°C.
The overall dimensions are 89mm in length, 44.5mm in width, and 97mm in depth.
Yes, it supports remote trip control via an integrated shunt trip coil.
It includes a lockable N/C position for up to three padlocks and spring terminal and screw clamp connectors for secure wiring.
It is suitable for protecting and controlling electrical motors in industrial automation, manufacturing, and HVAC systems.
The country of origin for this model is France.
It complies with various international standards such as EN/IEC 60947-1, IEC 60947-2, and UL, ensuring broad acceptance.
