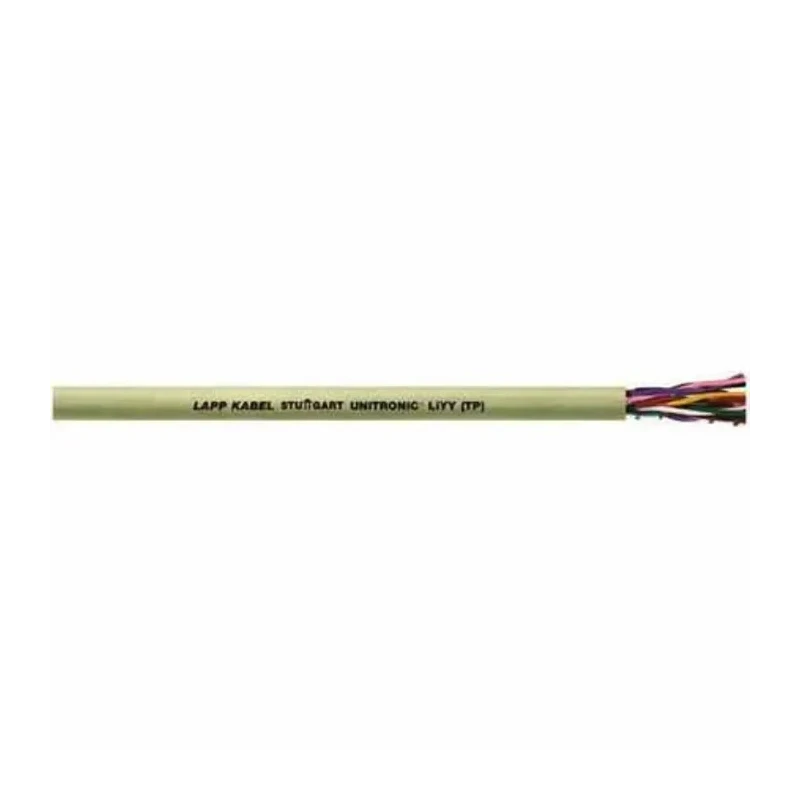

Lapp UNITRONIC LiYY Series Data Cable 4 Pairs 0.25 mm² 100 m Grey Sheath Polyvinyl Chloride 0035162
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.25 mm² |
| Model | 0035162 |
| Cable Length | 100m |
| Series | UNITRONIC LiYY |
| Outside diameter | 6.9mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EN 13501-6 and EN 50575 |
| Jacket Colour | Grey |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Pairs | 4 |
Key Features
- The cable consists of 4 twisted pairs of stranded bare copper conductors for flexible and reliable signal transmission.
- The outer jacket is made of durable polyvinyl chloride (PVC) that provides flame retardant properties according to IEC 60332-1-2.
- The cable has an outside diameter of 6.9 mm, suitable for compact installations.
- It supports a voltage rating of 500 V and a temperature range from -5°C to 70°C for indoor use.
- The cable is unscreened and complies with EN 13501-6 and EN 50575 standards for safety and fire behavior.
- UNITRONIC LiYY is particularly suited for instrumentation control, electronic control, signal and computer systems in manufacturing and automation environments.
- The grey sheath provides protection and flexibility with a small bending radius, ideal for installations with light mechanical or environmental stresses.
- This cable is manufactured in Germany to high-quality standards, ensuring reliable performance.
Product Description
Lapp 0035162 UNITRONIC LiYY Series Data Cable features 4 pairs of stranded bare copper conductors, each with a 0.25 mm² cross-sectional area, assembled in twisted pairs with layers of pairs stranding for enhanced signal integrity. The cable is sheathed in grey polyvinyl chloride (PVC), which offers flame retardant properties compliant with IEC 60332-1-2 standards.
This multi-pair data cable is designed for use in instrumentation control, electronic control devices, and computer system applications, primarily within dry or damp interior environments. While it exhibits good mechanical flexibility due to its stranded conductor construction and small bending radius, it is not suited for outdoor use without additional UV protection.
The cable operates safely at voltages up to 500 V, with an environmental operating temperature range from -5°C to 70°C, making it suitable for varied industrial applications. It conforms to EN 13501-6 and EN 50575 fire safety standards, ensuring flame retardant behavior.
Typical applications include use in manufacturing plants, process control devices, measuring equipment, and automated production facilities. Its insulation and construction allow it to handle light mechanical stresses effectively, supporting reliable data transmission in industrial automation contexts.
Lapp provides compatible accessories such as M12 to M32 Skintop Click cable glands to complement this cable series and facilitate cable management and installation. The cable consists of stranded bare copper conductors in four twisted pairs.
The durable grey PVC sheath provides flame retardant protection. Complies with EN 13501-6 and EN 50575 safety standards. Voltage rating of 500 V and temperature range -5°C to 70°C. Optimized for industrial control and automation applications.
Manufactured in Germany to stringent quality specifications. Discover more high-quality cables and wires in the Data Cable category at EnvMart for your industrial, laboratory, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 500 V, making it suitable for various industrial applications.
It operates within a temperature range of -5°C to 70°C, suitable for indoor environments.
The outside diameter of the cable is 6.9 mm, which is suitable for compact installations.
This model consists of 4 twisted pairs of stranded bare copper conductors.
The cable features stranded bare copper conductors and is sheathed in grey polyvinyl chloride (PVC).
This data cable is unscreened, designed for applications where shielding is not required.
It complies with EN 13501-6 and EN 50575 standards for safety and fire behavior.
It is particularly suited for instrumentation control, electronic control devices, and computer systems in manufacturing and automation environments.
The cable is 100 meters long, providing ample length for various installations.
This cable is manufactured in Germany to high-quality standards.
It uses stranded bare copper conductors, which enhance flexibility and signal integrity.
The grey PVC sheath provides protection and flexibility, with flame retardant properties compliant with IEC 60332-1-2.
