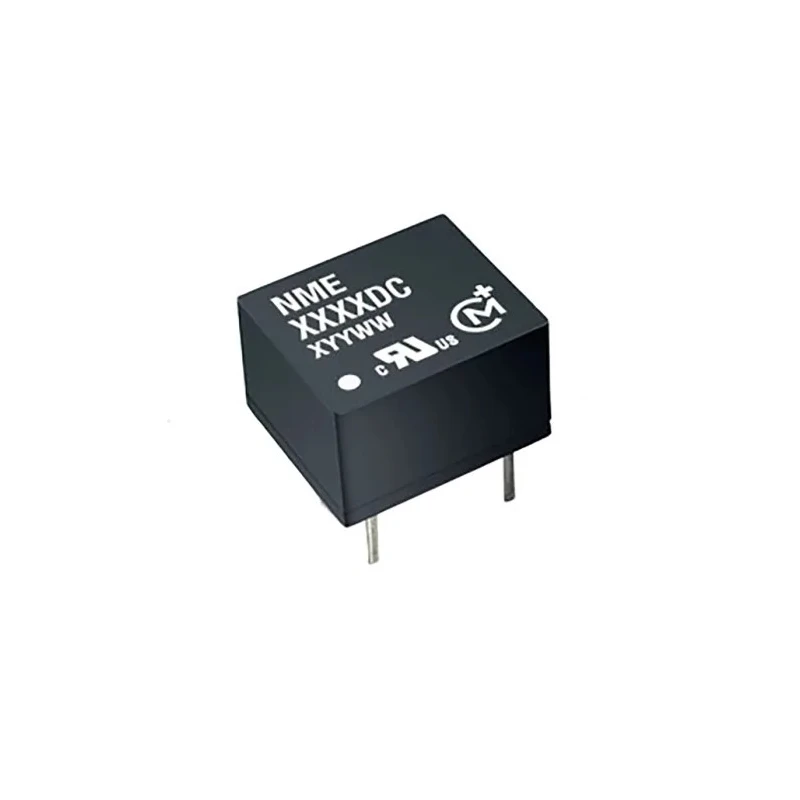

Murata Power Solutions DC/DC Converter 5V DC 200mA Input 10.8-13.2V 1W Through Hole DIP8 NME1205DC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NME DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 69% |
| Length | 11.5mm |
| Model | NME1205DC |
| Depth | 6.8mm |
| Gross Weight | 1.48g |
| Width | 11.6mm |
| Mount Type | Through Hole |
| Series | NME |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 47047kH |
| Number of outputs | 1 |
| Ripple and Noise | 30mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- Provides unregulated isolated DC to DC conversion with 1kV isolation voltage.

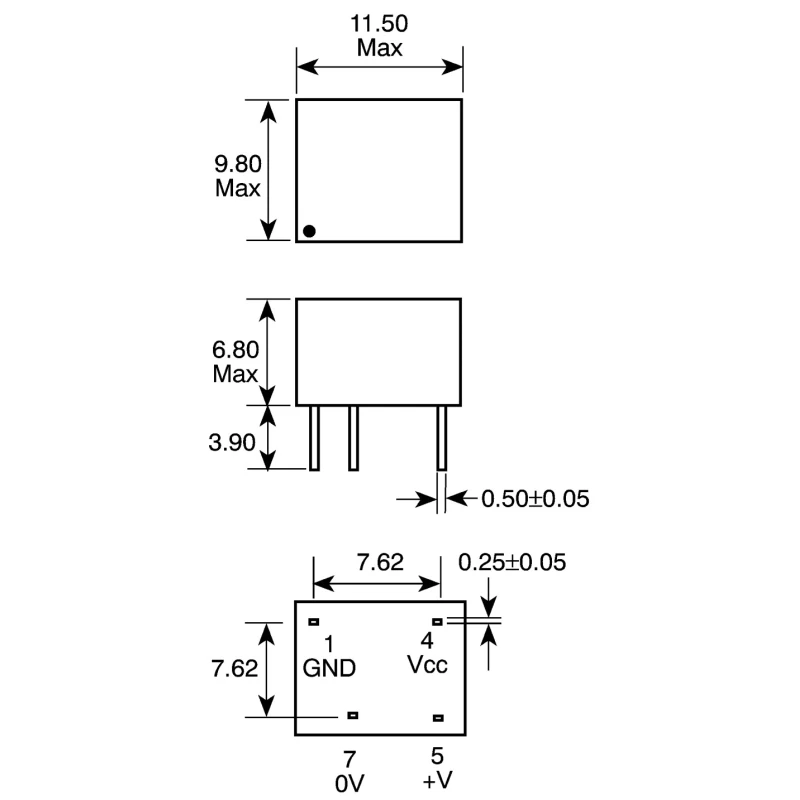

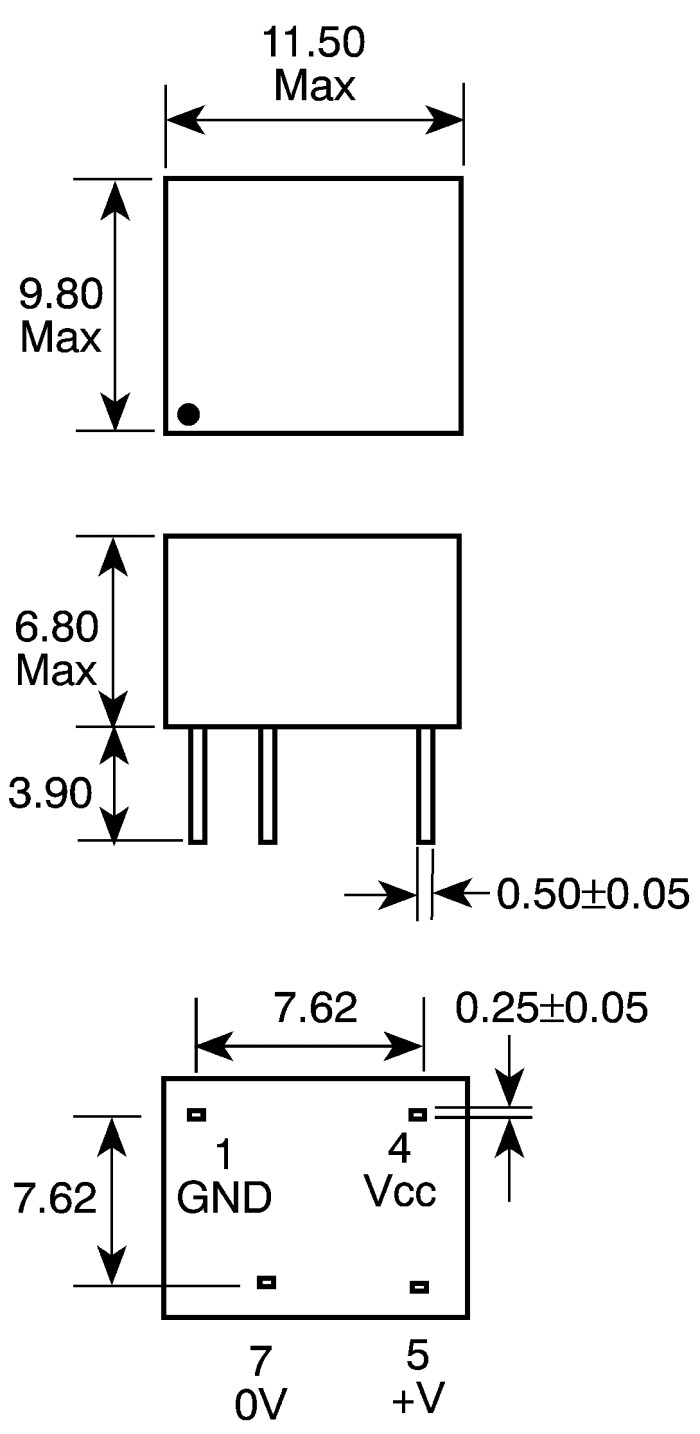

- Compact DIP8 plastic package with dimensions 11.5mm length, 11.6mm width, and 6.8mm depth.
- High MTBF rating of 47047k hours ensures long operational life.
- Offers 30mV peak-to-peak ripple and noise, maintaining output stability.
- Operating temperature range from -40°C to 85°C for versatile environmental conditions.
- This 1W converter attains 69% typical efficiency for good power utilization.
- Easy integration with through-hole mounting for PCB assembly.
- RoHS compliant for environmental safety standards.
Product Description
Murata Power Solutions NME1205DC is a high-quality DIP8 plastic packaged DC/DC Converter designed for low power applications requiring reliable isolated voltage conversion. This unregulated DC/DC converter accepts an input voltage between 10.8V and 13.2V DC and outputs a stable 5V DC at 200mA with a 1 watt maximum power rating. The converter delivers galvanic isolation of 1kV and maintains an operational temperature range from -40°C up to 85°C, making it suitable for industrial, electronic, and power management applications.
Its compact DIP8 through-hole mounting package measures 11.5mm in length, 11.6mm in width, and 6.8mm in depth and weighs only 1.48 grams, enabling easy integration into printed circuit boards with minimal space requirements. The high mean time between failures (MTBF) rating of over 47000k hours highlights its reliability and long service life.
The module has a ripple and noise specification of 30mV peak-to-peak ensuring stable output under varying load conditions. Achieving an efficiency of 69%, it balances power consumption and performance well in low power supply designs. The unit is also RoHS compliant, adhering to modern environmental and safety standards.
Common use cases for the Murata NME1205DC include powering low voltage circuits in industrial equipment, communication devices, instrumentation, and general electronic subsystems requiring isolated DC power conversion. Its robust temperature tolerance and insulated design make it suitable for harsh or electrically noisy environments.
Unregulated single output DC/DC converter with 1kV isolation voltage. Through-hole DIP8 plastic package for easy PCB mounting. Input voltage range from 10.8V to 13.2V DC. Output specification: 5V DC at 200mA maximum current.
Compact dimensions: 11.5mm x 11.6mm x 6.8mm (LxWxD). High MTBF of 47047k hours ensuring reliability. Ripple and noise of 30mV peak-to-peak for stable output. Operating temperature range from -40°C to 85°C. 69% efficiency balancing power use and performance.
RoHS compliant package material for safety. Explore more Murata Power Solutions products in the DC/DC Converter category at EnvMart for reliable industrial-grade power components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is between 10.8V and 13.2V DC.
This unit has a maximum output power of 1 watt.
It provides a stable output of 5V DC at a maximum current of 200mA.
The dimensions of the DIP8 package are 11.5mm in length, 11.6mm in width, and 6.8mm in depth.
This model offers a galvanic isolation voltage of 1kV.
This converter achieves a typical efficiency of 69%.
The operating temperature range is from -40°C to 85°C.
It has a ripple and noise specification of 30mV peak-to-peak.
This unit has a single output.
It features through-hole mounting for easy integration into PCBs.
The MTBF rating is over 47047k hours, indicating high reliability.
Yes, this model is RoHS compliant, adhering to environmental safety standards.
