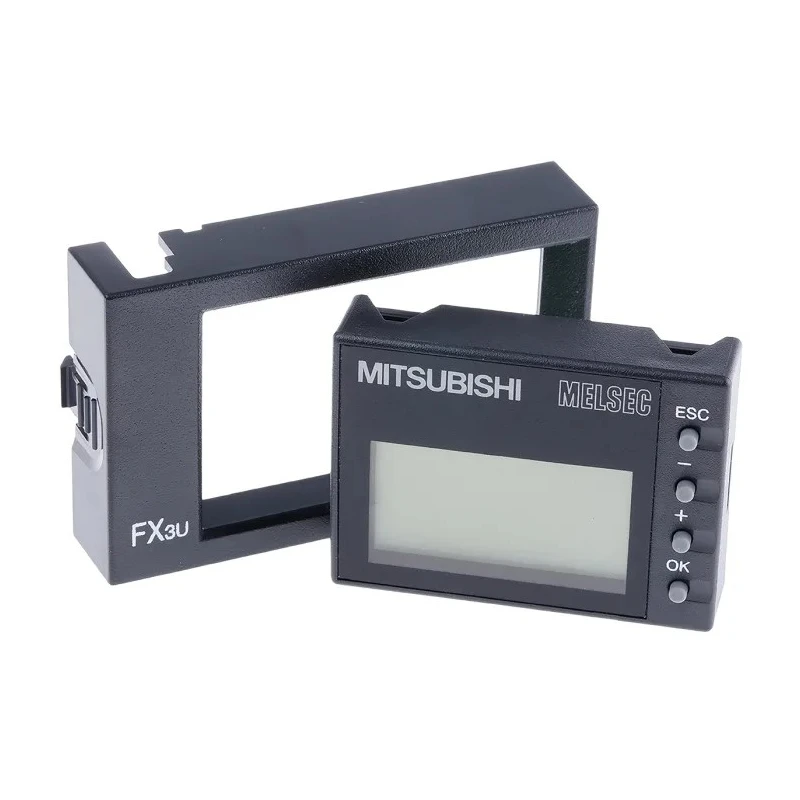

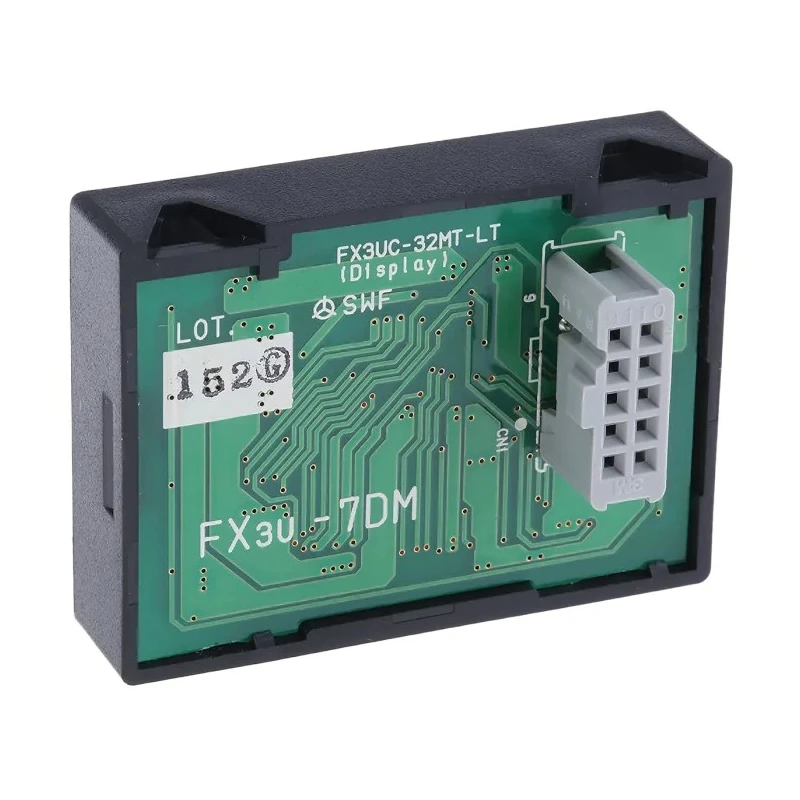

Mitsubishi Electric Display Module , 16 Characters x 4 Lines Backlit LCD, 20mA Current Consumption, Width 48mm FX3U-7DM

Mitsubishi Electric FX3U-7DM Display Module features a 16 characters by 4 lines backlit LCD display and is designed for use with FX3U PLC units for industrial automation.

This module enables users to monitor and manipulate timers, counters, data registers, and internal flags through an intuitive interface composed of four control buttons. Current consumption is minimal at 20mA, contributing to energy-efficient operation.

It fits neatly into the front of the PLC with dimensions of 48mm width and 11.5mm depth, optimizing space in control cabinets.

Additional features include time and date display. Program transfer is facilitated to and from memory cassettes via this module, increasing flexibility in configuration management.

Messages can be displayed by coding within the PLC program to drive the display accordingly. The optional FX3U-7DM-HLD model allows for panel mounting of the display module separate from the PLC, with a cable kit provided for connectivity.

This display module is specifically compatible with Mitsubishi FX3U CPU units, which in turn maintain backward compatibility with FX2N expansion modules, providing seamless upgrade paths.

It conforms to international certifications cUL, CE, and UL, ensuring reliability and safety in industrial environments. Allows monitoring and changing timers, counters, data registers, and internal flags. Backlit LCD with four control buttons for easy user interface.

Low current consumption at 20mA for efficient performance. Compact dimensions of 48mm width and 11.5mm depth suitable for front PLC mount. Time and date display capabilities integrated. Program transfer support to and from memory cassettes.

Message display via PLC programming support. Optional panel mount version FX3U-7DM-HLD with cable included. Compatibility with FX3U CPU units and legacy FX2N expansion modules. Meets cUL, CE, and UL approvals for industrial use.

This Display Module is ideal for applications in industrial automation, manufacturing processes, HVAC control systems, and other PLC-based control environments requiring clear monitoring and manual adjustments through a compact, reliable interface. For viewing other Mitsubishi Electric automation components, explore EnvMart's Automation & Control Gear category.
