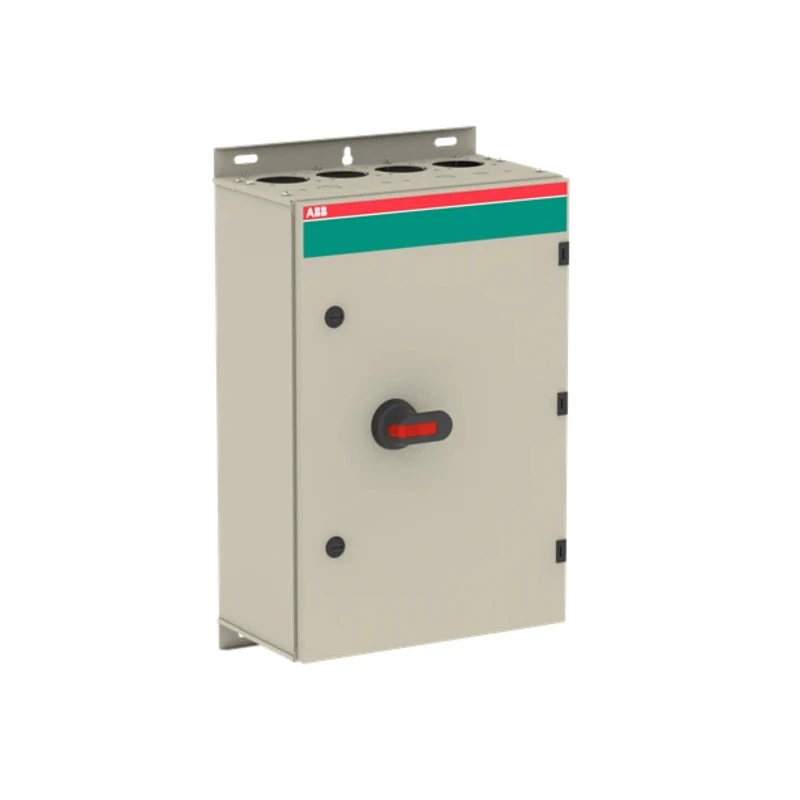

ABB 3-Pole Screw Switch Disconnector IP65 200A Switching Power 160kW 1000V ac OT Series

ABB 1SCA022340R0770 is a high-quality 3-Pole Screw Switch Disconnector from the OT series designed for safe electrical isolation and switching in industrial, manufacturing, and automation settings. The switch features a galvanized steel enclosure with polyester coating that provides IP65 ingress protection, making it suitable for outdoor environments with resistance to UV exposure and weather elements.

This switch disconnector supports a rated operating voltage of 1000V AC and can handle a switching current of up to 200A, with a switching power of 160kW. The screw clamp terminal type ensures secure and reliable connection of cables, and the black handle is designed for safe operation with the capability to be padlocked (3 padlocks supported) for enhanced safety during maintenance or lock-out procedures.

The enclosure incorporates a built-in gas pressure relief function that enhances user safety by mitigating risks associated with internal arcing. The door of the enclosure is earthed through its hinges, and cable entry options include blank, ring-flange, or C-flange types, allowing versatile cable configurations for top/bottom or bottom/bottom entries.

The switch disconnector meets IEC 60947-1 standards, ensuring compliance with internationally recognized electrical equipment performance and safety requirements. The minimum operating temperature rating of 0°C enables reliable use in a variety of industrial environments. The device supports auxiliary contacts, with a maximum of 2NO and 2NC, providing additional control functionality for integration into larger control systems.

With dimensions of 400mm length, 600mm width, and 230mm depth, this robust electrical switch is engineered for demanding applications requiring durable switch disconnectors. Its padlock compatibility and interlocked cover function (which can be bypassed for thermographing) enhance operational safety and maintenance convenience.

Ideal for industrial, laboratory, manufacturing, and electrical automation uses, the ABB 1SCA022340R0770 switch disconnector combines safety, durability, and regulatory compliance.

Explore more products in the electrical switch disconnectors category at EnvMart for reliable industrial electrical components. The device features an IP65 rated galvanized steel enclosure with polyester coating for outdoor use.

Compatible with 3 poles and rated switching current of 200A. Switching power capacity is 160kW at 1000V AC voltage. Includes screw clamp terminals and black handle that is padlock compatible for secure operation. Designed with an integrated gas pressure relief function for internal arc protection.

Suitable for single and parallel cable entry with multiple mounting options. Meets IEC 60947-1 standards for switch disconnectors. Minimum operating temperature is 0°C for reliable operation in varied environments. Enclosure dimensions offer robust size with length 400mm, width 600mm, and depth 230mm.

Auxiliary contacts available with maximum 2NO and 2NC contacts. Check additional Electrical Switch Disconnectors and related components to meet your industrial automation needs.
