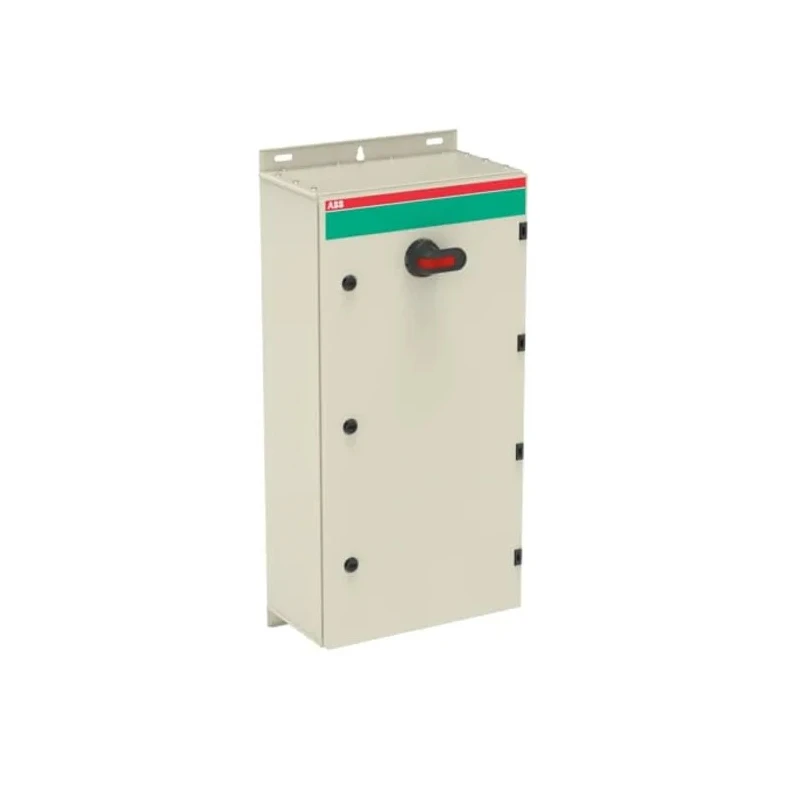

ABB 3-Pole Switch Disconnector IP65, 250A, 1000V AC, Screw Clamp Terminals

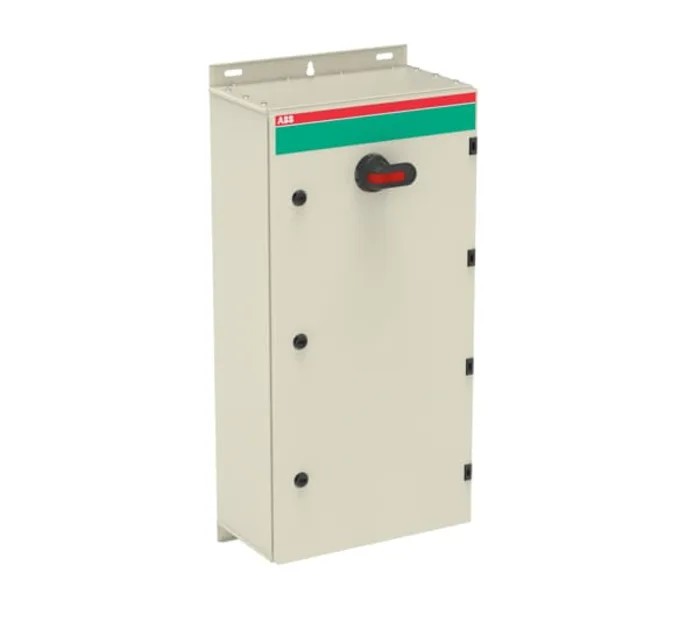

ABB 1SCA022340R1310 3-Pole Switch Disconnector IP65 is an industrial-grade electrical isolation device designed to safely interrupt electrical circuits with a rated operational voltage of 1000V AC and a switching current of 250A. It features a robust galvanised steel enclosure with polyester coating, making it suitable for outdoor use with protection against UV light and adverse environmental conditions.

The enclosure offers IP65 ingress protection, effectively preventing dust and water ingress. It includes an inbuilt gas pressure relief function to protect against hazards due to internal arcing, ensuring user safety during operation. The door is earthed through hinges, maintaining electrical safety standards.

The switch disconnector accommodates screw clamp type terminals for secure and reliable electrical connections. It supports auxiliary contacts with a maximum of 2 normally open (NO) and 2 normally closed (NC) contacts, enabling advanced control and signaling functionality.

Designed for flexibility, the enclosure supports various cable entry configurations including blank, ring-flange, and C-flange (FL21) types, with options for top/bottom or bottom/bottom cable entry, suitable for various installation scenarios. The handle is padlock compatible for up to 3 padlocks, enhancing safety by preventing unauthorized operation while also featuring an interlocked cover that can be bypassed for thermographic inspections.

Compliant with IEC 60947-1 and related standards, this switch disconnector is ideal for use in industrial, commercial, and automation electrical systems where reliable circuit isolation is critical. Its black handle and well-sized form factor (800mm length, 400mm width, 230mm depth) make it practical for diverse installations.

Enclosed galvanised steel housing with polyester coating for outdoor and UV protection. IP65 rated enclosure for high ingress protection against dust and water. Padlock compatible handle with up to 3 padlocks supported for enhanced safety.

Screw clamp terminals for secure electrical connections. Auxiliary contacts availability for control and indication circuits. Conforms to IEC 60947-1 and multiple other standards for electrical safety and reliability. Gas pressure relief mechanism to safeguard against internal arc faults.

Supports various cable entry configurations for installation flexibility.

This ABB switch disconnector is suitable for applications in electrical automation, industrial power distribution, and manufacturing plants. The product is manufactured in Finland, ensuring high-quality European standards.
