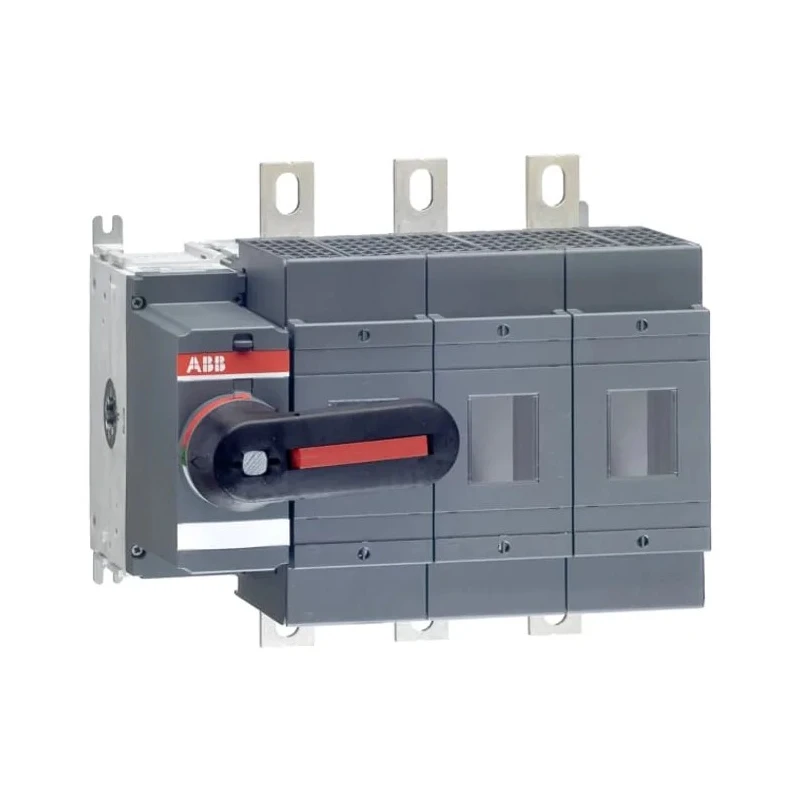

ABB Enclosed Base Mount Fuse Switch Disconnector 3-Pole 315 A 500V OS315B03K 1SCA022763R6520

ABB 1SCA022763R6520 Fuse Switch Disconnector is an enclosed, base-mounted device designed for safe and efficient disconnection in electrical installations. This 3-pole unit is rated for 315 A switching current and operates at 500 V switching voltage, suitable for a variety of industrial and commercial applications.

The device utilizes British Standard fuse sizes B1 to B4 and includes a directly mounted handle for effortless operation. Lug type terminals with a 25 mm width ensure secure electrical connections. The switch features an operating mechanism 03 on the left side, facilitating ease of use and accessibility in control panels.

Positions of line terminals offer flexible wiring options, accepting both top in-bottom out and bottom in-top out configurations, which allow adaptability in installation practices. The unit complies with IEC 60947-3 standards, reflecting adherence to internationally recognized safety and performance criteria.

This Fuse Switch Disconnector, manufactured in Finland, is built to meet pollution degree 3 requirements, ensuring reliable operation in diverse environmental conditions. It does not have auxiliary contacts, focusing on the core function of effective circuit disconnection.

Ideal for industrial, manufacturing, electrical distribution, and automation sector applications, this device ensures system protection and operational safety. It is suitable for use in electrical switchboards, panels, and control systems where fuse-based disconnection is required.

Switch disconnector has a base mounting type with 3 poles for secure installation. Enclosed design to ensure safety and protection from external factors. Equipped with lug type terminals with 25 mm width for reliable connections.

Operates at a switching voltage of 500 V with a power rating of 32 W. Uses British Standard fuse sizes B1 to B4 with handle directly mounted for easy operation. Switch operating mechanism type 03 located on the left side for convenient access.

Positions of line terminals allow top input and bottom output as well as bottom input and top output configurations. Compliant with IEC 60947-3 standards ensuring quality and compatibility. Manufactured in Finland under high quality control standards.

Does not include auxiliary contacts, focusing on essential disconnection functions. Explore more electrical switch disconnectors and fuse switches in our catalog to meet your industrial and commercial electrical installation needs.
