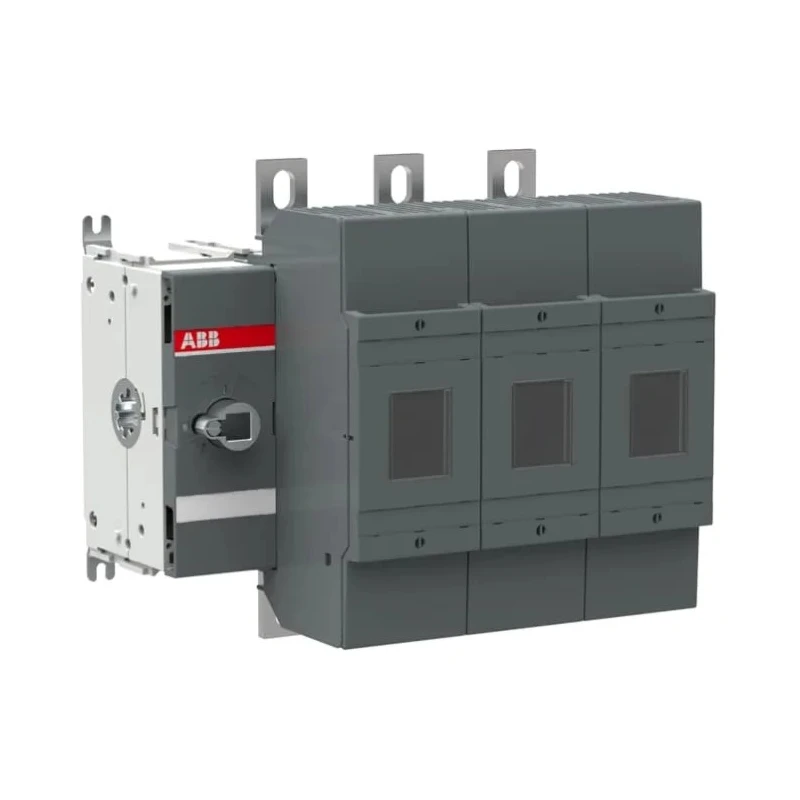

ABB Fuse Switch Disconnector, 3-Pole, 315 A, Enclosed, Base Mount, Lug Terminal, Model 1SCA022753R2070

ABB 1SCA022753R2070 fuse switch disconnector is a high-quality electrical switch designed for industrial and commercial applications requiring safe disconnection of power circuits. It features an enclosed 3-pole design with a 315 A current rating, base mounting option, and lug terminal connection for secure wiring. The device supports a maximum switching voltage of 690V and switching power of 32W.

This model accommodates fuse sizes ranging from B1 to B4, providing compatibility with a range of British Standard fuse cartridges. The switch mechanism operates with type 03 configuration placed on the left side, allowing flexible installation with top or bottom line terminal options.

Constructed for durability, it conforms to IEC 60947-3 standards, ensuring safety compliance and reliable operation under harsh electrical conditions. The device has a pollution degree rating of 3, suitable for industrial environments with moderate contamination levels.

Note that the fuse switch disconnector is supplied without a handle and shaft, which are required separately for manual operation. Its lug type terminals have a width of 25 mm, designed to provide secure and easy connection to power cables.

This fuse switch disconnector is ideal for electrical distribution panels, automation systems, and industrial machinery requiring reliable fuse breaking and isolation functionality. It offers a robust, base-mounted solution for maintenance and safety of electrical circuits in manufacturing, water treatment, commercial buildings, and other installations.

Operates at a switching voltage of 690V for wide applicability. Rated for switching current up to 315A with high-quality lug terminals. Compatible with fuse sizes B1 to B4 for versatile protection. Certified to IEC 60947-3 ensuring industrial standards compliance.

Base mounted enclosure offers stable installation and protection. Left side switching mechanism facilitates flexible wiring configurations. Pollution degree 3 rating supports use in moderately harsh industrial environments.

Switching power rating of 32W ensures efficient electrical performance. Lug terminal width of 25 mm ensures secure cable connections. Handle and shaft are not included and must be ordered separately if manual operation is needed.
