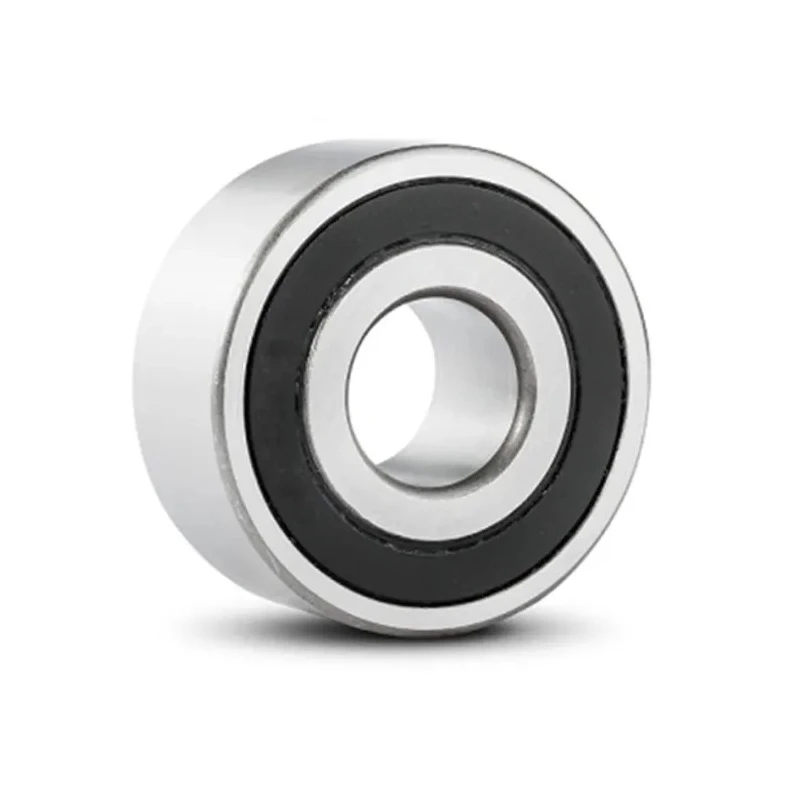

RS PRO Double Row Angular Contact Ball Bearing 15 mm ID, 35 mm OD, 15.9 mm Race Width 3202-B-2RSR-TV

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Double Row Angular Contact Ball Bearing 15 mm ID, 35 mm OD, 15.9 mm Race Width 3202-B-2RSR-TV

Name: RS PRO Double Row Angular Contact Ball Bearing 15 mm ID, 35 mm OD, 15.9 mm Race Width 3202-B-2RSR-TV
Brand: RS PRO
SKU: 339622
Price: 20.22 USD
Availability: InStock



Category Ball Bearings Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	3202-B-2RSR-TV
Series	2 Light
Outside diameter	35mm
Inside Diameter	15mm
Number of Rows	2
Ball Material	Stainless Steel
Limiting Speed	14000rpm
Internal Clearance	CN
End Type	Open
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Steel
Race Width	15.9mm
Static Load Rating	6.8kN
Race Type	Grooved
Dynamic Load Rating	11.3kN
Contact Angle	32°

Key Features

Designed with two rows providing enhanced radial and axial load support in both directions.
Features grooved race type and built-in contact angles on each row for improved rigidity.
Equipped with steel cages and stainless steel balls for durability and corrosion resistance.
Double rubber seals prevent contamination and retain bearing lubrication.
Open end type facilitates specific assembly and maintenance requirements.
Maintains high limiting speed of up to 14000 rpm for efficient operation.
Internal clearance rated as CN ensuring standard clearance for reliable performance.
Suitable for applications requiring high running accuracy and long service life.

Product Description

RS PRO 3202-B-2RSR-TV is a high-precision double row angular contact ball bearing designed for demanding industrial applications. The bearing features a 15 mm inside diameter, 35 mm outside diameter, and a 15.9 mm race width, offering high running accuracy while accommodating radial and axial loads in both directions. This design ensures operational stability and rigidity in high-speed rotating equipment.

The bearing uses steel cages and stainless steel balls, providing excellent durability and resistance to corrosion. Its double rubber seals effectively eliminate contamination, preserving vital lubrication and extending service life. The open end type allows for specific mounting configurations as required by the application.

With a limiting speed of 14000 rpm and internal clearance rated CN, this bearing supports efficient, quiet, and smooth operation. The grooved race type and the built-in 32° contact angle optimize load transfer and bearing rigidity, making it suitable for a wide range of mechanical and fluid power systems.

RS PRO double row angular contact Ball Bearings are ideal for applications such as industrial manufacturing machinery, automotive components, agriculture equipment, and materials handling systems. These bearings offer increased maintenance intervals due to their quieter operation and cooler running characteristics, reducing downtime and operational costs.

Designed with two rows providing enhanced radial and axial load support in both directions. Features grooved races and built-in contact angles for improved rigidity and performance. Steel cage construction with stainless steel balls ensures corrosion resistance and durability.

Double rubber seals prevent contamination and extend lubricant life. Open end configuration for versatile assembly options. Limiting speed of 14000 rpm suitable for high-speed applications. Standard internal clearance (CN) for reliable load accommodation.

Applicable in industrial, agricultural, automotive, and manufacturing environments. Enables longer maintenance intervals by running quieter and cooler.
