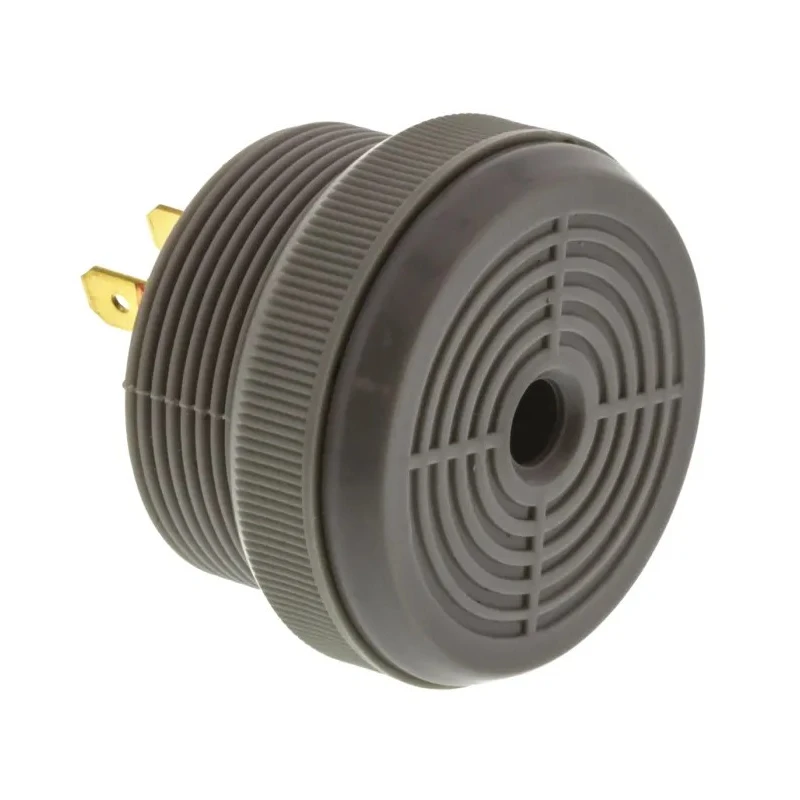

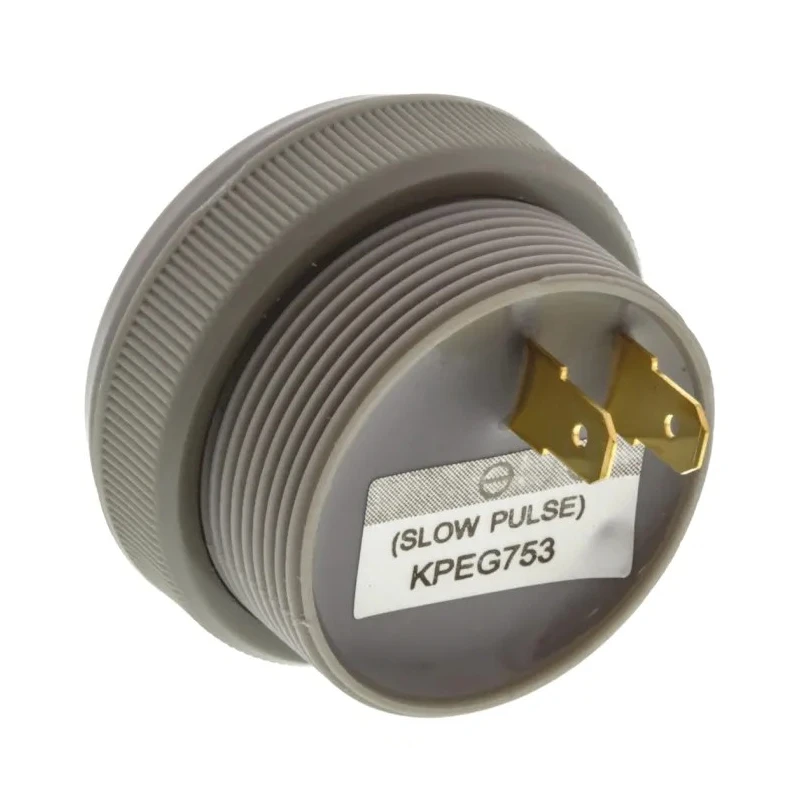

RS Pro Panel Mount Slow Pulse Internal 76 dB Piezo Buzzer Component 6 V dc Min 28 V dc Max 5358405P
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 37.8mm |
| Brand | RS Pro |
| Sound Level | 76dB |
| Height | 23.5mm |
| Model | 5358405P |
| Drive Type | Internal |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 4.1kHz |
| Termination Style | Wire |
| Maximum Supply Voltage | 28V dc |
| Minimum Supply Voltage | 6V dc |
| Supply Current | 17mA |
| Tone Type | Slow Pulse |
| Minimum Frequency | 3100Hz |
| The buzzer conforms to American (ANSI/ESD S20.20 | 2014) and British (BS EN 61340-5-1:2007) electrostatic control standards, meaning it won't damage equipment via electrostatic discharge. Buzzers of this kind are commonly used as an alert system in a wide range of electronic devices |
Key Features
- Panel mounting type for easy installation.
- Produces a slow pulse tone with a sound level of 76 dB.
- Operates with a minimum supply voltage of 6 V dc and maximum of 28 V dc.
- Diameter of 37.8 mm and height of 23.5 mm for compact fitting.
- Maximum operating temperature of 85°C and minimum operating temperature of -30°C.
- Internal drive type allows sound generation without additional circuitry.
- Maximum frequency of 4.1 kHz and minimum frequency of 3.1 kHz.
- Has wire termination style for easy connection.
Product Description
RS Pro 5358405P is a panel mount slow pulse internal piezo buzzer component designed for electronic alert systems requiring reliable and clear sound signals. Rated at a sound level of 76 dB, it produces a distinctive slow pulse tone that helps attract attention effectively.
This buzzer component operates within a supply voltage range starting from 6 V dc minimum to 28 V dc maximum, making it suitable for various DC-powered control panels and systems. Its compact dimensions of 37.8 mm diameter and 23.5 mm height enable easy integration into space-constrained environments.
The buzzer features an internal drive, eliminating the need for external drive circuits, simplifying the design for engineers and technicians. It offers a broad frequency response with a minimum frequency of 3.1 kHz and a maximum frequency of 4.1 kHz. The device withstands operating temperatures between -30°C and +85°C, ensuring dependable performance in diverse environmental conditions.
Termination by wire provides fast and reliable electrical connections, facilitating maintenance and replacement. The component complies with RoHS environmental standards, guaranteeing it meets current restrictions on hazardous substances.
Commonly used in industrial, laboratory, commercial, and electronic equipment panel alert systems, the RS Pro 5358405P buzzer is ideal for signaling and warning applications. It also conforms to ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) electrostatic control standards to prevent equipment damage from static discharge.
Panel mounting type for easy installation. Slow pulse internal drive eliminates need for additional circuitry. Operating voltage range of 6 V dc to 28 V dc. Sound output level rated at 76 dB for clear alerts. Compact size with 37.8 mm diameter and 23.5 mm height.
Operating temperature range from -30°C to +85°C. Compliance with RoHS and electrostatic discharge standards. Supply current of 17 mA for low power consumption. Frequency range between 3.1 kHz and 4.1 kHz. Wire termination for reliable electrical connection.
Explore the Electronics Components category at EnvMart for a comprehensive selection of Piezo Buzzer Components and compatible products from RS Pro and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sound level of this buzzer is rated at 76 dB, providing clear alerts for various applications.
It operates within a supply voltage range of 6 V dc minimum to 28 V dc maximum, making it suitable for various DC-powered systems.
The buzzer has a diameter of 37.8 mm and a height of 23.5 mm, allowing for compact installation in limited spaces.
It has a frequency range with a minimum frequency of 3.1 kHz and a maximum frequency of 4.1 kHz, suitable for generating a slow pulse tone.
The buzzer features a wire termination style, which allows for easy and reliable electrical connections.
The maximum operating temperature for the RS Pro 5358405P is 85°C, ensuring it can function effectively in various environments.
This buzzer can operate in temperatures as low as -30°C, making it suitable for cold environments.
It features an internal drive type, which means it can generate sound without needing additional circuitry.
This buzzer complies with RoHS standards and conforms to ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) electrostatic control standards.
The supply current for the RS Pro 5358405P is 17 mA, contributing to its low power consumption.
It is commonly used in industrial, laboratory, commercial, and electronic equipment panel alert systems for signaling and warning applications.
This model is designed for panel mounting, which facilitates easy installation in various setups.
