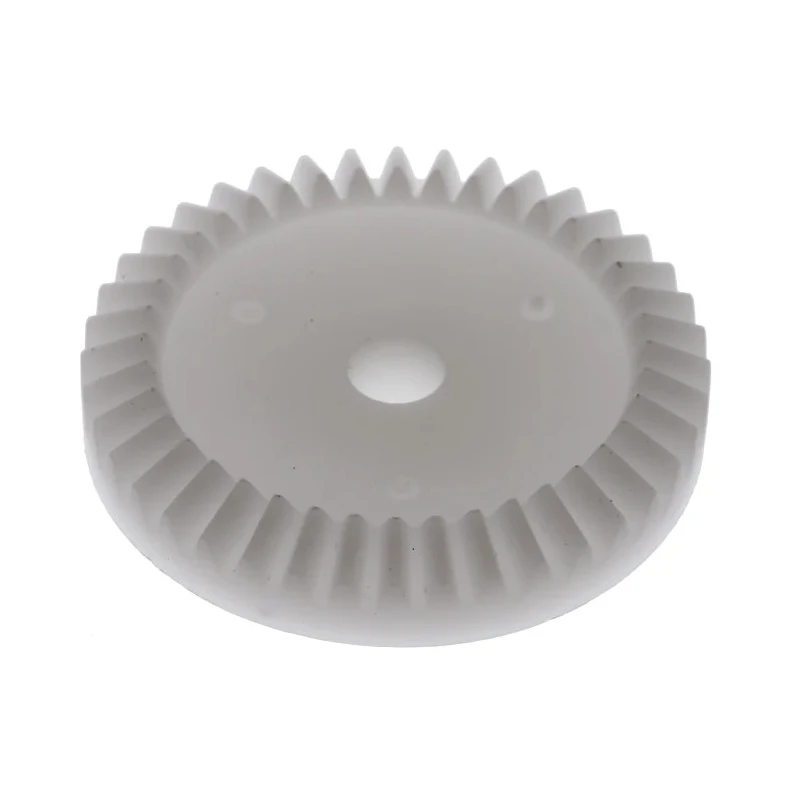

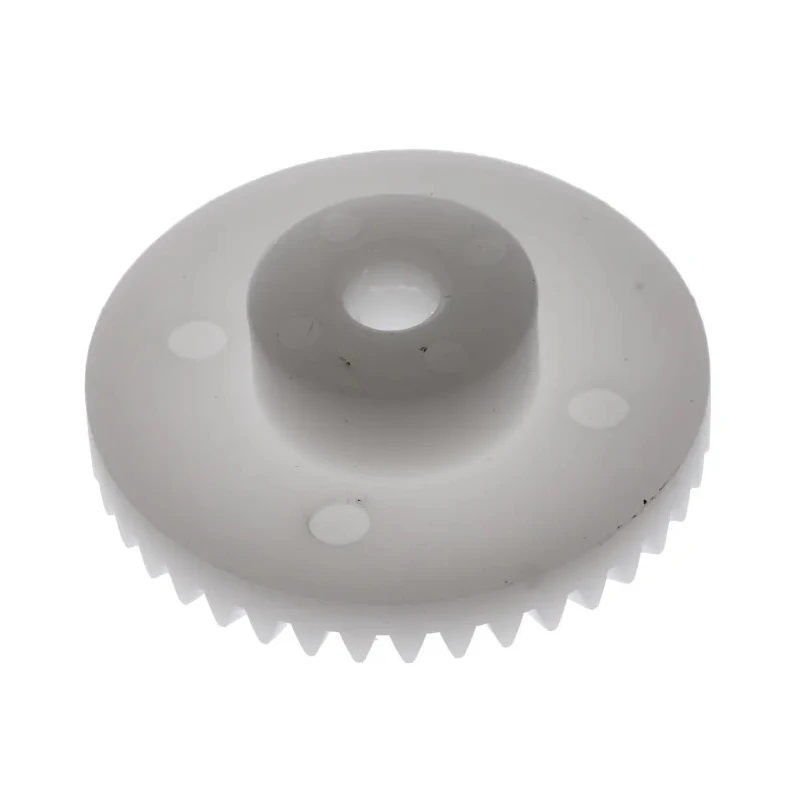

RS PRO Polyoxymethylene Bevel Gear, 5mm Bore, 40 Teeth, 0.8 Module 521-6109
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Polyoxymethylene |
| Model | 521-6109 |
| Gear Type | Bevel |
| Number of Teeth | 40 |
| Bore Diameter | 5mm |
| Gear ratio | 2:1 |
| Standards/Approvals | RoHS |
| Pitch Diameter | 0.8mm |
| Hub Diameter | 15mm |
| Module | 0.8 |
| Pressure Angle | 20° |
| Gear Ratio2 | 1 |
| Gears sold as a single unit, match pair with module size to give a 2 | 1 ratio |
Key Features
- Manufactured using high strength polyoxymethylene material for durability.
- Features a 5mm bore diameter to fit standard shafts.
- Contains 40 teeth with a 0.8 module for accurate gear meshing.
- Pressure angle of 20° ensures efficient power transfer.
- Hub diameter measures 15mm for secure mounting.
- Injection moulded acetal co-polymer construction for strength and wear resistance.
- Suitable for industrial and laboratory mechanical power transmission systems.
- Meets RoHS standards for environmental compliance.
Product Description
RS PRO 521-6109 polyoxymethylene bevel gear is engineered for industrial mechanical power transmission applications requiring precision and durability.
Made from injection moulded acetal co-polymer (Delrin), this bevel gear combines high tensile strength (75 N/mm²) and hardness (Rockwell R 110-120) to deliver reliable performance in demanding environments.
The gear features a 5mm bore diameter and 40 teeth with a 0.8 module size, ensuring compatibility with mating gears to achieve a precise 2:1 gear ratio. It offers a pressure angle of 20° that facilitates efficient torque transfer with minimal backlash.
The hub diameter of 15mm provides a secure fit onto shafts, making it suitable for various mechanical assemblies. The gear's pitch angle is 63° 26' for the gear and 26° 34' for the pinion, with face angles of 65° 36' (gear) and 30° 29' (pinion), supporting smooth meshing and operation.
This bevel gear complies with RoHS directives, ensuring environmental safety and regulatory compliance. It is sold individually and is intended for matching with a corresponding gear of the same module and ratio to form sets.
Applications include industrial machinery, mechanical equipment, HVAC systems, water treatment plants, and laboratory power transmission setups requiring precise, wear-resistant bevel gears.
Manufactured using high strength polyoxymethylene material for durability. Features a 5mm bore diameter to fit standard shafts. Contains 40 teeth with a 0.8 module for accurate gear meshing. Pressure angle of 20° ensures efficient power transfer.
Hub diameter measures 15mm for secure mounting. Gear ratio of 2:1 compatible with matching pairs. Injection moulded acetal co-polymer construction for strength and wear resistance. Suitable for industrial and laboratory mechanical power transmission systems.
Meets RoHS standards for environmental compliance. Sold as a single bevel gear unit. Explore the comprehensive range of Mechanical Gears at EnvMart to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bevel gear has a bore diameter of 5mm, allowing it to fit standard shafts.
This model features 40 teeth, which aids in achieving an accurate gear meshing.
It has a gear ratio of 2:1, which is compatible with matching pairs of the same module size.
The gear is manufactured from polyoxymethylene, specifically an injection moulded acetal co-polymer, known for its strength and wear resistance.
The pressure angle is 20°, which facilitates efficient torque transfer with minimal backlash.
The hub diameter measures 15mm, ensuring a secure fit onto shafts.
The pitch angle is 63° 26' for the gear, with face angles of 65° 36' for the gear and 30° 29' for the pinion.
Yes, it meets RoHS standards for environmental compliance.
This gear is suitable for industrial machinery, mechanical equipment, HVAC systems, water treatment plants, and laboratory power transmission setups.
It is sold as a single unit and is intended to be matched with a corresponding gear of the same module and ratio to form sets.
The module size of this gear is 0.8, which is essential for compatibility with other gears.
The country of origin for this bevel gear is India.
