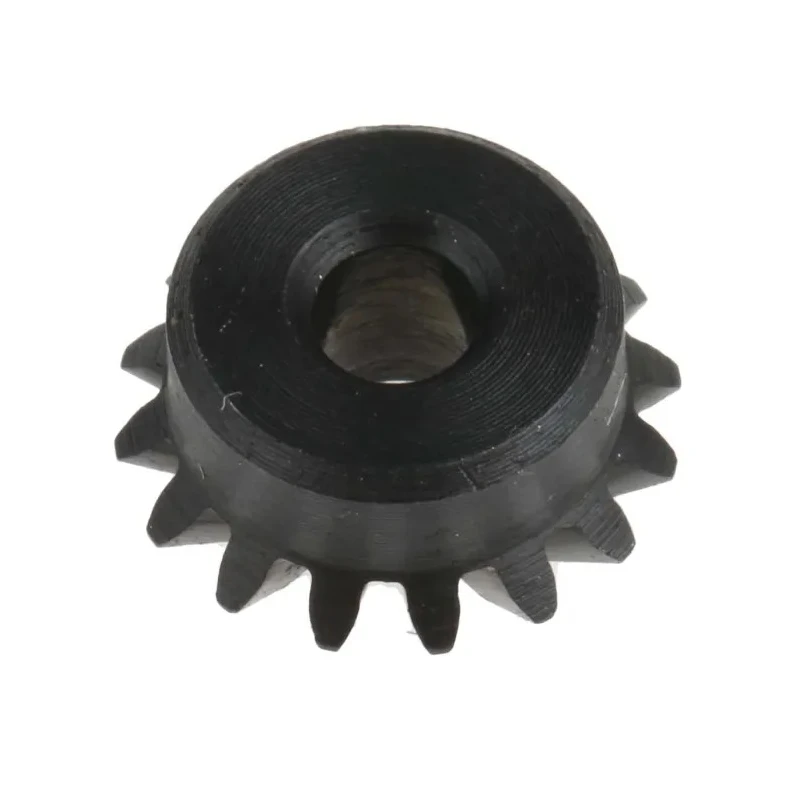

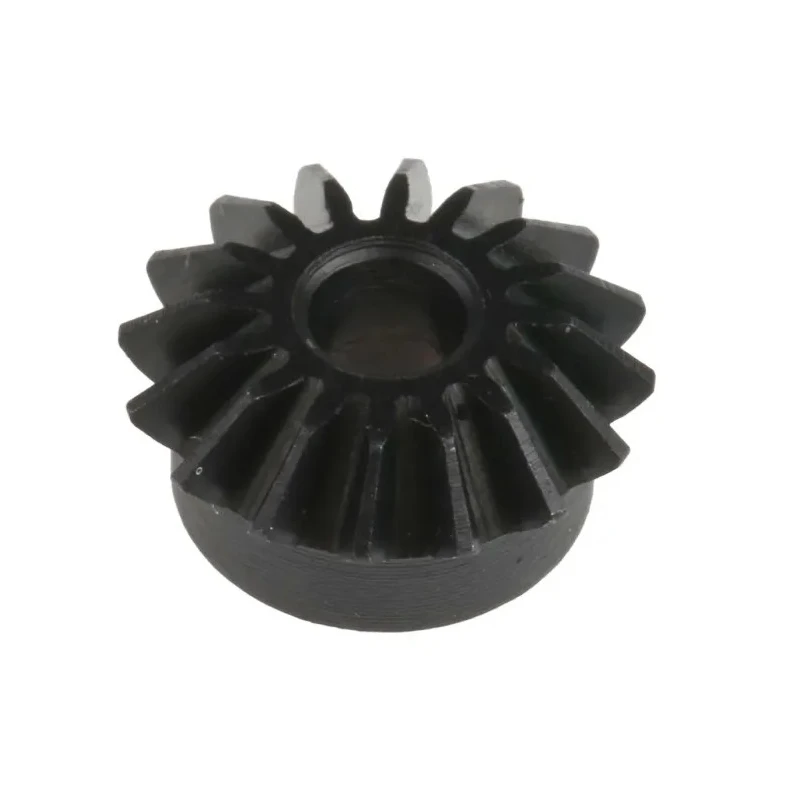

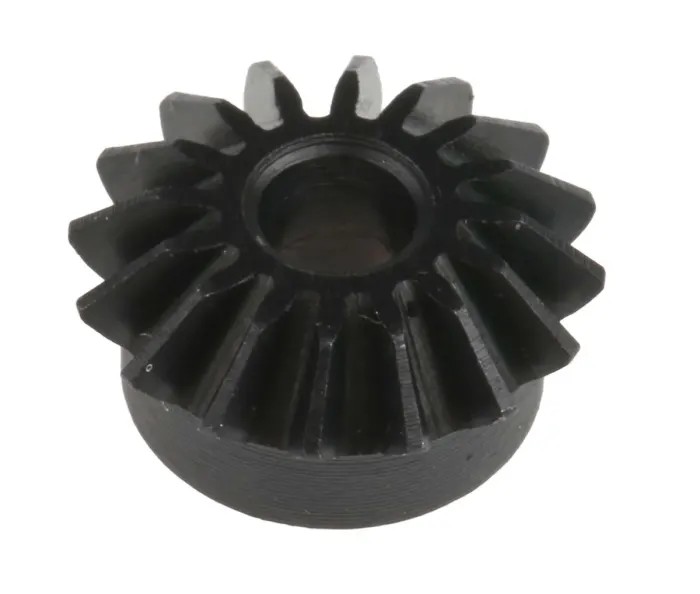

NEUTRAL Steel Mitre Gear 4mm Bore 16 Teeth 0.8 Module 45° Pitch 20° Pressure Angle 521-5780
Specifications
| Country of Origin | China |
|---|---|
| Brand | NEUTRAL |
| Material | Steel |
| Model | 521-5780 |
| Gear Type | Mitre |
| Number of Teeth | 16 |
| Bore Diameter | 4mm |
| Gear ratio | 1:1 |
| Pitch Diameter | 0.8mm |
| Hub Diameter | 11mm |
| Module | 0.8 |
| Pressure Angle | 20° |
| Gear Ratio 1 | 1 |
| Module 0.8 steel mitre gear,16 teethBrand | NEUTRAL |
Key Features
- Made of hardened steel with a chem-black finish for durability.
- Features a 4 mm bore diameter suitable for various shaft sizes.
- Has 16 teeth with a pitch module of 0.8 for smooth engagement.
- Includes a 20° pressure angle and a 45° pitch angle optimal for mitre gears.
- Manufactured according to DIN 3964, 3967, and 3971 standards.
- Hub diameter measures 11 mm, ensuring robust mounting.
- Ideal for applications in material handling and pump mechanisms.
- Single unit supply allows cost-effective replacement as needed.
Product Description
The RS PRO Steel Mitre Gear model 521-5780 is engineered for efficient rotary motion transmission between perpendicular shafts. Constructed from high-strength S45C induction-hardened steel and finished with a chem-black coating, this gear provides excellent durability and resistance to wear. Its design adheres to Gleason cutting systems and meets German DIN standards related to tooth thickness and bevel gears, ensuring reliable performance in industrial environments.
This single mitre gear has 16 teeth with a 0.8 module pitch and operates with a 1:1 gear ratio. The 4 mm bore diameter accommodates standard shafts while the 11 mm hub diameter secures the gear firmly. The pressure angle of 20° combined with a pitch angle of 45° and face angle of 48° facilitate smooth interaction between gear pairs, minimizing backlash and noise.
Commonly employed in material handling equipment and pumps, the RS PRO mitre gear can withstand minimum tensile strengths of 569 N/mm², making it suitable for demanding mechanical power transmission applications. Sold individually, this allows maintenance teams to replace only damaged components, reducing downtime and cost.
RS PRO is recognized worldwide for delivering reliable engineering products with rigorous quality control. This mitre gear is manufactured in China and designed for long-lasting industrial use.
Made of hardened steel with a chem-black finish for enhanced durability. 4 mm bore size designed for standard shaft compatibility. 16 teeth with a 0.8 module ensuring smooth gear meshing. Compliant with DIN 3964, 3967, and 3971 standards for quality assurance.
Features a 20° pressure angle and 45° pitch angle optimized for mitre gears. Explore the full range of Mechanical Power Transmission components and related industrial tools on EnvMart for more precision parts and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this mitre gear is 4 mm, which is designed for compatibility with standard shafts.
This model features 16 teeth, which contributes to its effective gear meshing.
The gear ratio of this mitre gear is 1:1, allowing for direct transmission of rotary motion between shafts.
It is made of hardened steel, providing durability and resistance to wear, and finished with a chem-black coating.
The gear features a pressure angle of 20° and a pitch angle of 45°, optimized for smooth interaction between gear pairs.
The hub diameter measures 11 mm, ensuring a robust mounting for the gear.
This gear is manufactured according to DIN 3964, 3967, and 3971 standards, ensuring quality and reliability in performance.
It is commonly employed in material handling equipment and pump mechanisms, making it suitable for various industrial applications.
The pitch diameter of this gear is 0.8 mm, which is essential for proper gear engagement.
The combination of a 20° pressure angle and a 45° pitch angle facilitates smooth interaction between gear pairs, minimizing both noise and backlash.
This model can withstand minimum tensile strengths of 569 N/mm², suitable for demanding mechanical power transmission applications.
This gear is sold as a single unit, allowing for cost-effective replacement of damaged components as needed.
