RS PRO VLS Series Solids Level Switch Vertical Horizontal ATEX-Rated Aluminium Alloy Housing VLSKB131Z

Free Delivery in India | Lowest Global Shipping Charges

RS PRO VLS Series Solids Level Switch Vertical Horizontal ATEX-Rated Aluminium Alloy Housing VLSKB131Z

Name: RS PRO VLS Series Solids Level Switch Vertical Horizontal ATEX-Rated Aluminium Alloy Housing VLSKB131Z
Brand: RS PRO
SKU: 337677
Price: 1072.97 USD
Availability: InStock



Category Level Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	VLSKB131Z
Cable Length	235mm
Mount Type	Vertical, Horizontal
Housing Material	Aluminium Alloy
Series	VLS
Maximum Operating Temperature	110°C
Maximum Pressure	10bar
Minimum Operating Temperature	-20°C
Maximum Current	8A
Device Type	Solids Level Switch
Maximum dc Voltage	55V dc
Hazardous Area Certification	ATEX
Maximum AC Voltage	265V ac
Gasket Material	Non-Asbestos Sheet

Key Features

The level switch detects solids level with vertical and horizontal mounting options.
Aluminium alloy housing with powder coating ensures durability.
Operates within -20°C to 110°C temperature and up to 10 bar pressure.
Includes 1 x SPDT alarm relay for precise switching control.
235mm cable length with Pg 16 cable glands for flexible wiring.
Non-asbestos sheet gasket material for reliable sealing.
External LED status indicator for visual confirmation.
ATEX II 1/2 DIP67 certification for hazardous area use.

Product Description

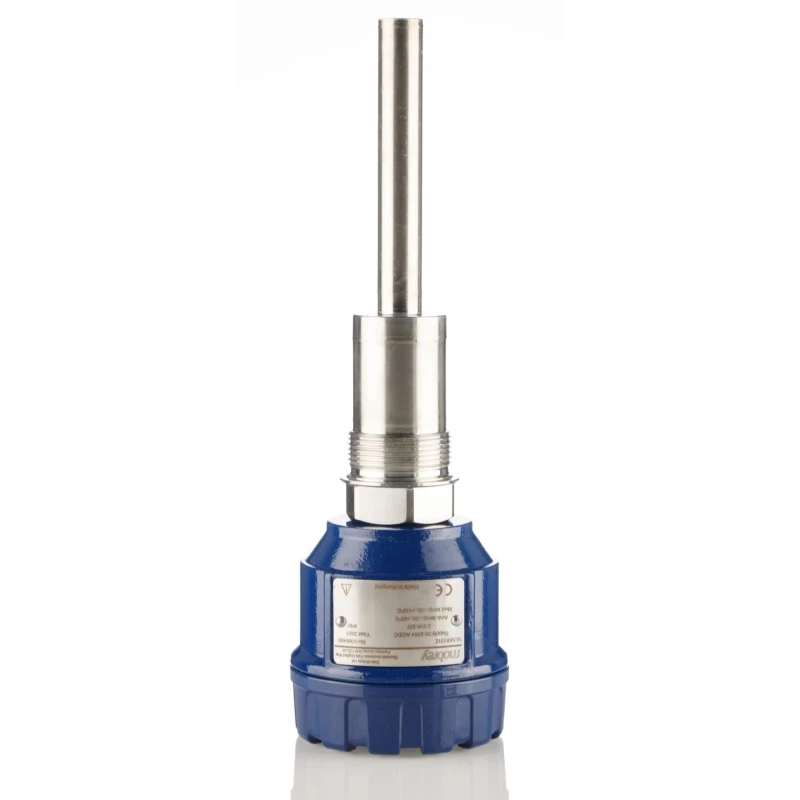

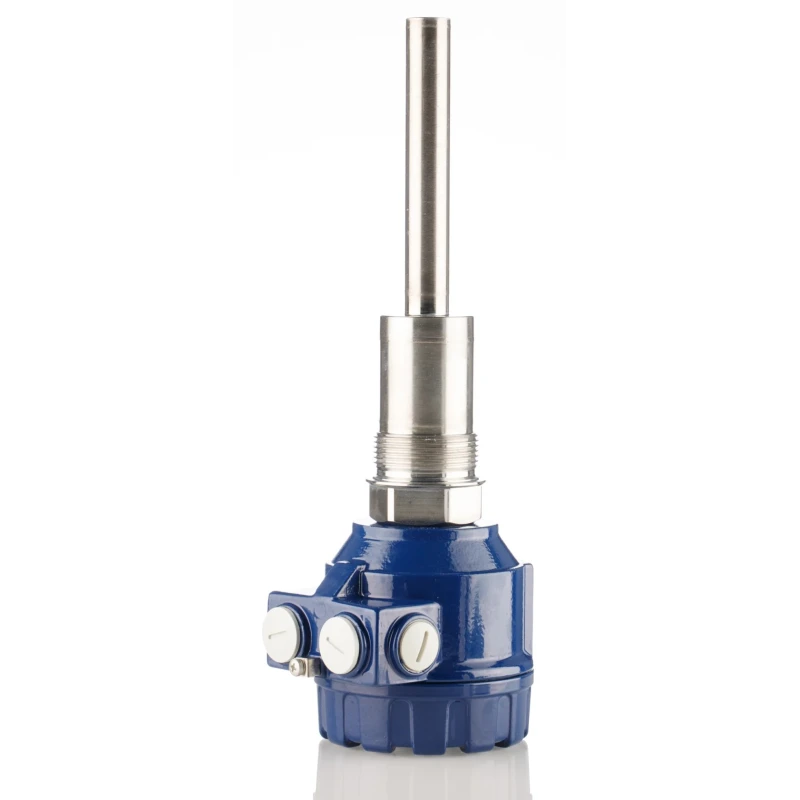

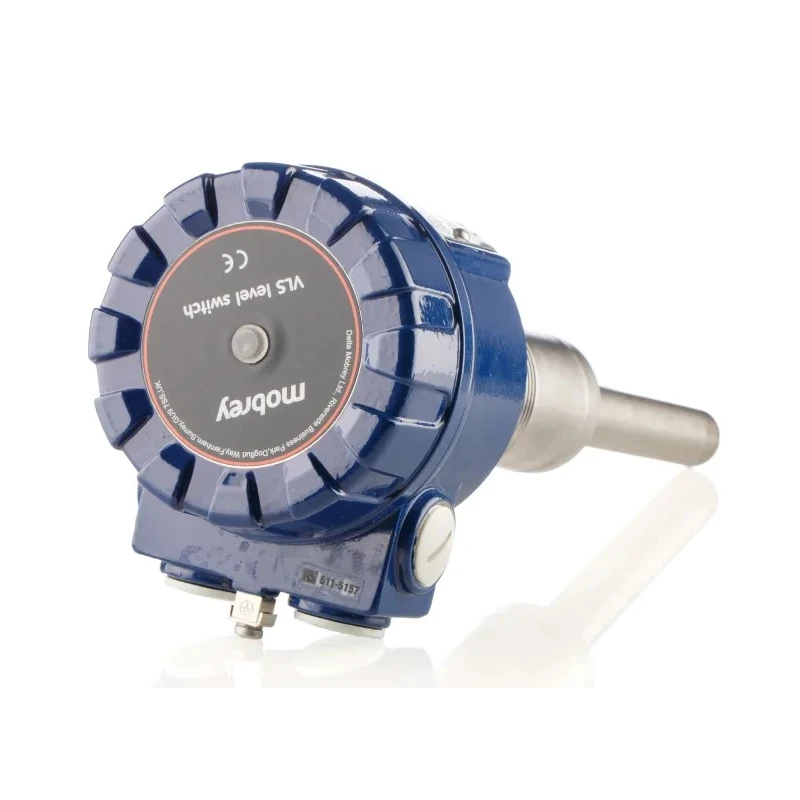

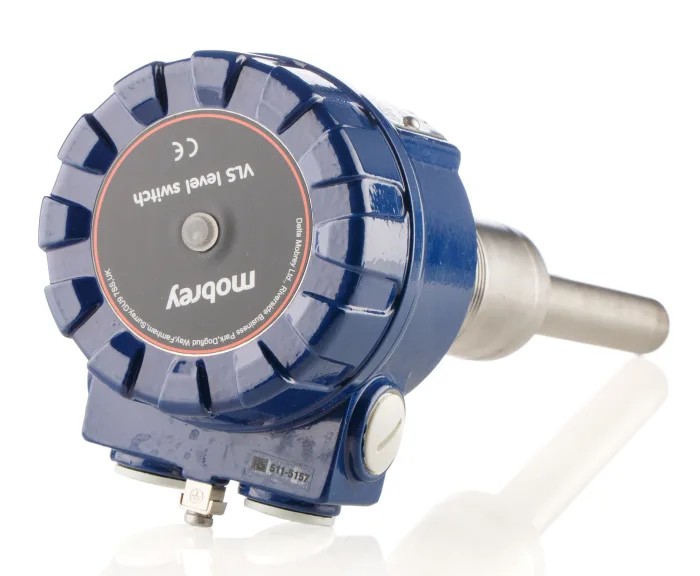

Delta-Mobrey VLSKB131Z Solids Level Switch is engineered for single-point level detection in free-flowing solids such as powders and grains. The device supports both vertical and horizontal mounting modes for flexible installation in silos or bins. Its aluminium alloy housing with powder coating provides robust protection against environmental factors.

The vibrating rod detects material level by resonant frequency changes when covered by solids, eliminating common problems like clogs or product bridging seen with tuning forks. The switch operates reliably from -20°C to 110°C with a maximum allowable pressure of 10 bar. Its electrical ratings include a maximum of 265V AC, 55V DC, and an 8A current rating, supporting various industrial power standards.

This model comes with a single SPDT alarm relay, an external LED status indicator for switch condition, and a 235mm cable length with Pg 16 cable glands for flexible wiring. The gasket uses a non-asbestos sheet to ensure safety and durability in sealing applications. The device is ATEX certified (II 1/2 DIP67) for use in hazardous areas, making it suitable for demanding industrial environments such as chemical plants, manufacturing, and material handling.

Installation requires only a 1 inch BSP or NPT socket, located on the top or sidewall, facilitating ease of setup and commissioning. The rod design prevents product bridging and is maintenance free, ensuring long-term reliable sensing.

The Level Switch is intended for powders and granular materials with bulk densities above 50 kg/m³ including cement, sand, sugar, and carbon black. Compact design with durable construction is fit for use in diverse industrial, laboratory, HVAC, agricultural, and commercial settings.

It includes a user manual, terminal blocks, sealing, and cable glands for complete installation readiness. Explore EnvMart's extensive collection of level sensors and switches for industrial automation and control.
