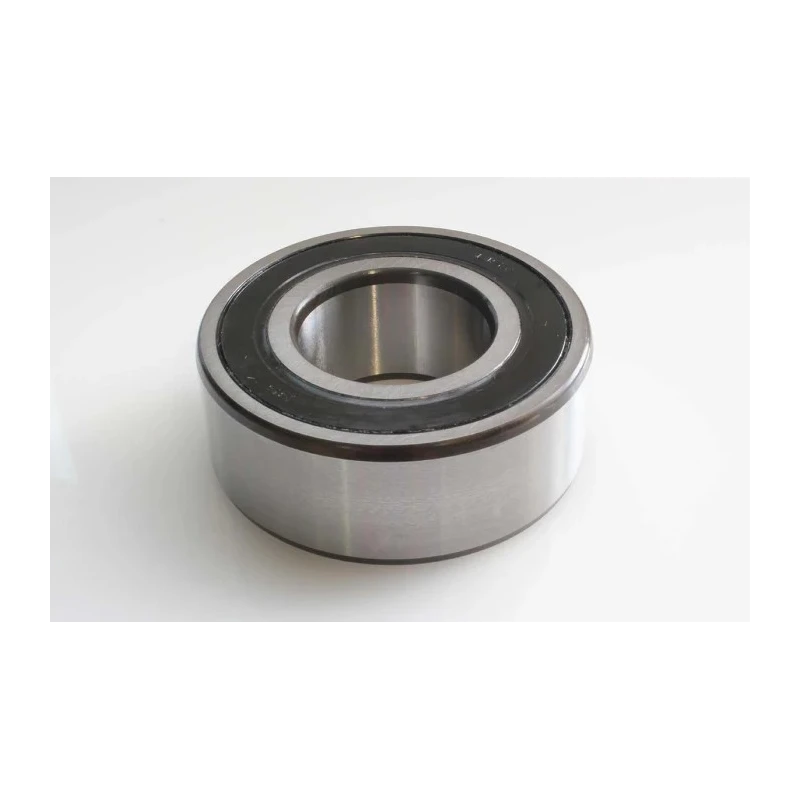

RS PRO Double Row Angular Contact Ball Bearing 40 mm ID 90 mm OD 36.5 mm Race Width 3308A-2RS

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Double Row Angular Contact Ball Bearing 40 mm ID 90 mm OD 36.5 mm Race Width 3308A-2RS

Name: RS PRO Double Row Angular Contact Ball Bearing 40 mm ID 90 mm OD 36.5 mm Race Width 3308A-2RS
Brand: RS PRO
SKU: 337215
Price: 20.22 USD
Availability: InStock



Category Ball Bearings Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	3308A-2RS
Series	3 Medium
Outside diameter	90mm
Inside Diameter	40mm
Number of Rows	2
Ball Material	Steel
Limiting Speed	5000rpm
Internal Clearance	C3
End Type	Sealed
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Steel
Race Width	36.5mm
Race Material	Steel
Static Load Rating	43.12kN
Race Type	Plain
Dynamic Load Rating	62.72N
Contact Angle	30°

Key Features

Features two rows of angular contact for supporting axial and radial loads in both directions.
Incorporates a built-in 30° contact angle on each row, enhancing rigidity and stability.
Constructed with steel cage, races, and balls for durability and strength.
Sealed design prevents contamination and preserves lubrication.
Rated for a limiting speed of 5000 rpm suitable for high-speed machinery.
Offers a static load rating of 43.12 kN and dynamic load rating of 62.72 N for robust performance.
C3 internal clearance supports medium clearance requirements.
Bore type is parallel, designed for precise mounting.

Product Description

RS PRO 3308A-2RS is a high-quality double row angular contact ball bearing designed to provide exceptional running accuracy while supporting both radial and axial loads in industrial and mechanical applications. It features a 40 mm inside diameter, 90 mm outside diameter, and 36.5 mm race width, making it suitable for medium-sized rotary equipment.

This bearing includes two rows of balls arranged at a 30° contact angle, which significantly improves rigidity and axial load capacity in both directions. Its steel cages, races, and ball materials deliver durability, while the sealed end type minimizes contamination and retains essential lubrication for extended service life.

Operating at a limiting speed of 5000 rpm, the 3308A-2RS bearing supports applications requiring high rotational speeds and precision. The C3 internal clearance allows for thermal expansion accommodation and reduced friction, enhancing overall performance.

Commonly applied in agriculture, industrial manufacturing, automotive, and materials handling sectors, this bearing is engineered to withstand demanding environments with a static load rating of 43.12 kN and dynamic load rating of 62.72 N.

Two-row angular contact design supports radial and axial loads simultaneously. 30° contact angle on each row enhances bearing rigidity and load capacity. Steel construction ensures high strength and durability. Sealed design protects against dust and contaminants.

5000 rpm limiting speed enables use in high-speed machinery. C3 internal clearance for thermal stability and smooth operation. Parallel bore for accurate installation. Meets 3 Medium series standard for consistent quality.

RS PRO bearings are trusted globally for their reliability in industrial, construction, agricultural, HVAC, and manufacturing equipment. The 3308A-2RS is an ideal choice for applications demanding precise performance, long service life, and low maintenance.

Explore the RS PRO category on EnvMart for a wide range of bearings tailored to meet diverse industrial needs.
