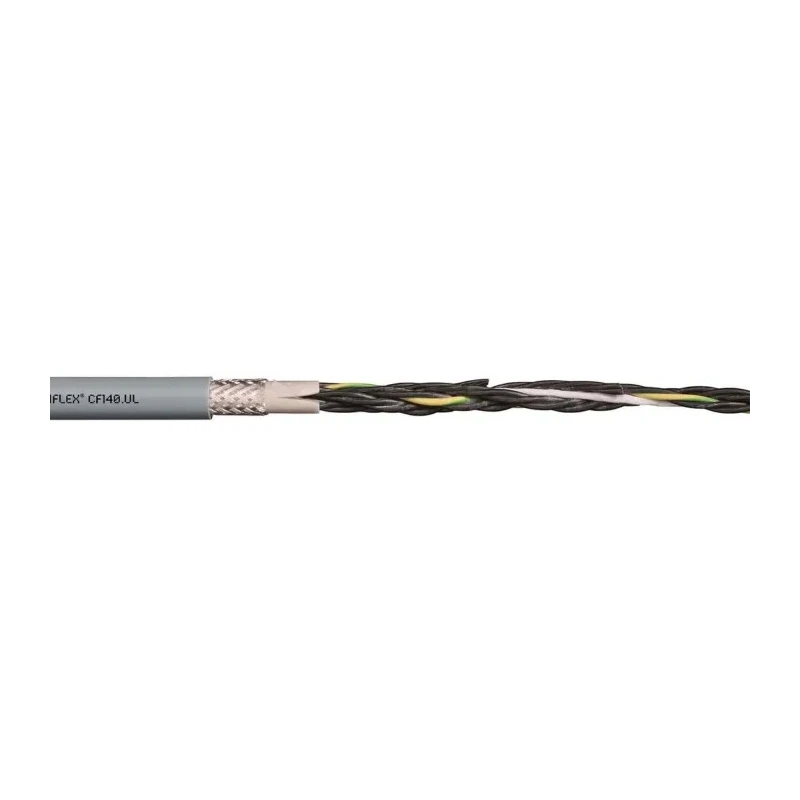

Igus Chainflex CF140.UL Screened Control Cable, 3 Cores 1mm² 17 AWG, Thermoplastic Elastomer Sheath, 10 m CF140.10.03.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF140.10.03.UL |
| Cable Length | 10m |
| Series | Chainflex CF140.UL |
| Outside diameter | 8.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- The cable features a grey thermoplastic elastomer sheath providing durability and flexibility.
- It is suitable for continuous flexing and gliding applications with a length of 10 meters.
- Rated for voltage up to 500 V with flame-retardant properties complying with IEC standards.
- Operating temperature ranges from -5°C to 70°C, suitable for industrial environments.
- Constructed with fine-wire stranded bare copper conductors for optimal conductivity.
- The cable is shielded and armoured to resist oil influence and mechanical stress.
- Complies with standards including CE, EN, IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 certifications.
Product Description
Igus CF140.10.03.UL is a high-quality screened control cable featuring 3 cores of 1mm² conductor size (17 AWG) with a robust thermoplastic elastomer grey sheath. Engineered primarily for medium load requirements, this armoured cable is ideal for indoor operations, especially suitable for applications requiring continuous flexing and gliding up to 50 meters.
The construction includes fine-wire stranded bare copper conductors engineered to ensure excellent electrical conductivity and durability. The cable features shielding and armouring to offer protection against mechanical impacts and oil contamination, making it reliable for demanding industrial environments.
Operating voltage capacity is rated at 500 V, with the cable designed to withstand temperatures from -5°C up to a maximum of 70°C, allowing for versatile use in various industrial automation, manufacturing, and control gear installations.
The cable is flame retardant compliant with IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 standards. It meets CE and EN approvals, making it suitable for a broad range of industrial uses such as factory automation, machine tooling, and electrical power distribution where safety and performance are critical.
This cable is manufactured in Japan with precise adherence to international quality standards, ensuring excellent longevity and consistent performance in industrial automation systems and control processes.
The cable sheath is thermoplastic elastomer, providing flexibility and wear resistance. Its screened and armoured structure offers enhanced protection against external interference and mechanical damage. Designed specifically for control cable applications in automation and electrical power networks.
Complies fully with international safety and flame-retardant standards. Fine-wire stranded copper conductors ensure superior conductivity and flexibility. Effective for indoor and industrial automation settings requiring shielding and robust protection.
Rated for use up to 500 V and temperature range from -5°C to 70°C. For comprehensive industrial, automation, and electrical wiring solutions, explore more high-quality Control Cables and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus Chainflex CF140.UL control cable is rated for a voltage of up to 500 V.
This model operates within a temperature range of -5°C to 70°C.
The length of the cable is 10 meters.
It is constructed with fine-wire stranded bare copper conductors for optimal conductivity.
The sheath is made of thermoplastic elastomer, providing flexibility and durability.
Yes, it is designed for continuous flexing and gliding applications, making it suitable for various industrial environments.
The cable complies with CE, EN, IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 standards.
The outside diameter of this control cable is 8.5 mm.
The cable is flame retardant and complies with relevant fire behavior standards.
This model features 3 cores, each with a conductor size of 1mm² (17 AWG).
The Igus Chainflex CF140.UL cable is manufactured in Japan.
It is suitable for a range of applications including factory automation, machine tooling, and electrical power distribution.
