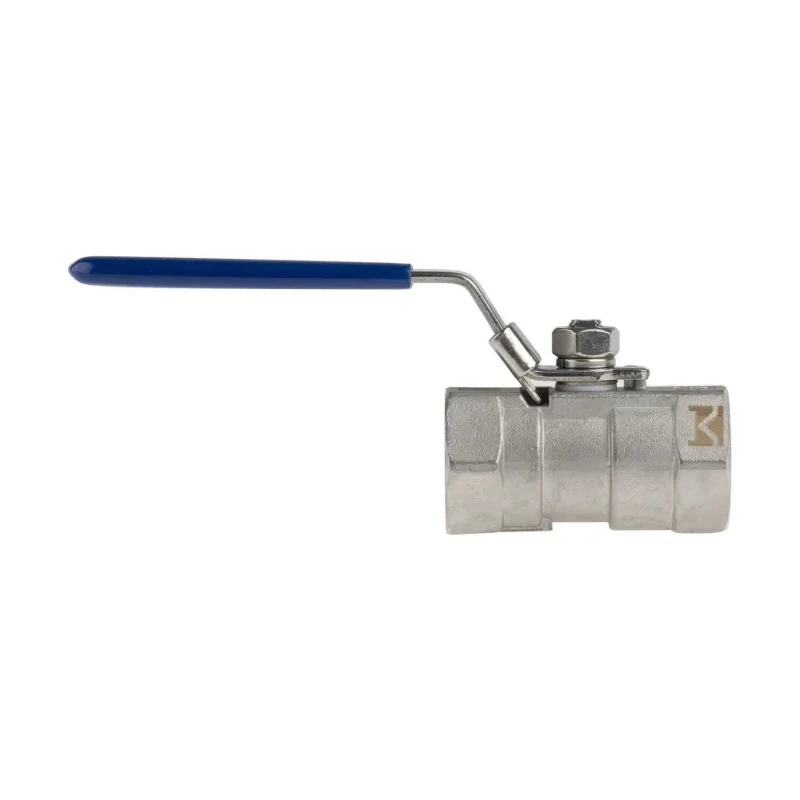

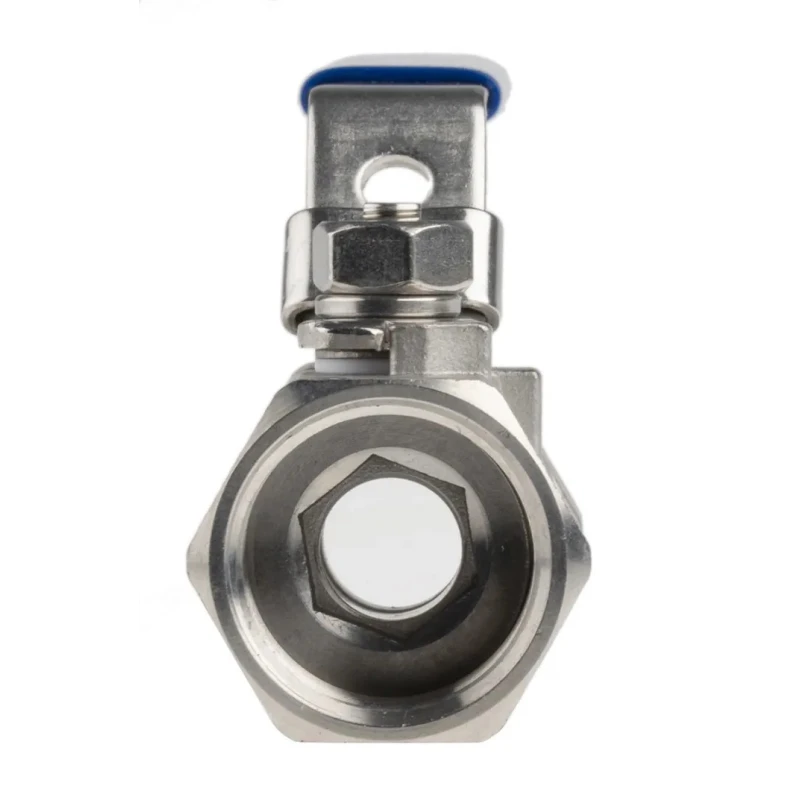

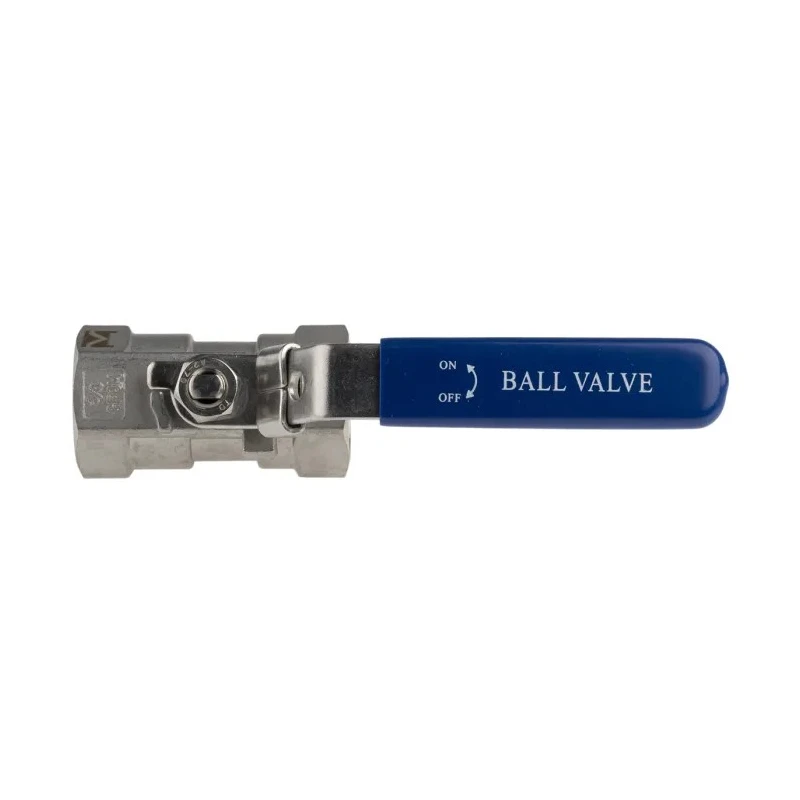

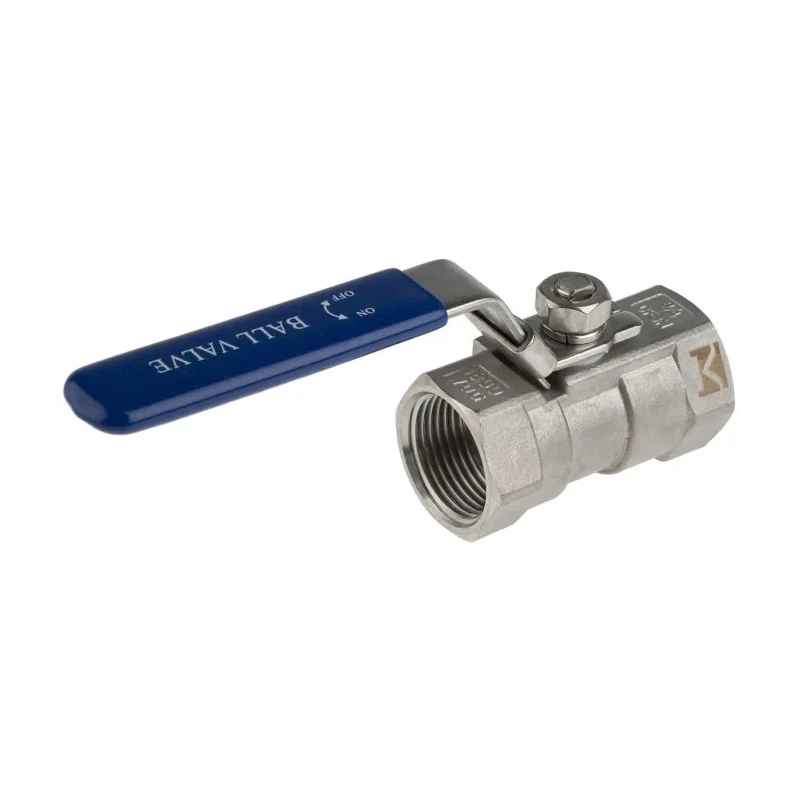

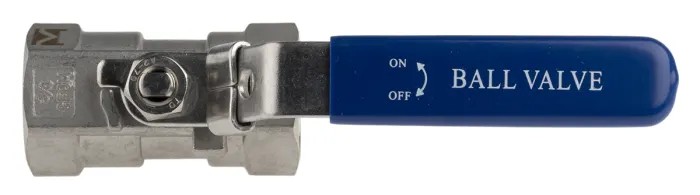

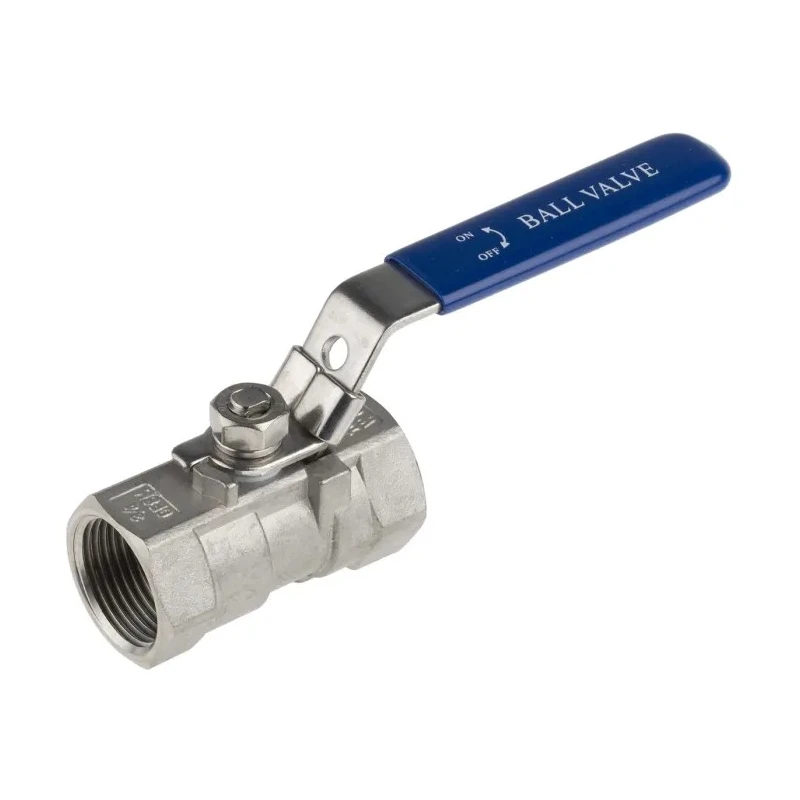

RS PRO Stainless Steel Threaded 2-Way Ball Valve ASTM A351-CF8M, 3/4 in BSPP Female Port, 68 bar, 200°C A351-CF8M
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Body Material | ASTM A351-CF8M Stainless Steel |
| Maximum Operating Pressure | 68 bar |
| Outlet Connection Type | Threaded |
| Model | A351-CF8M |
| Handle Material | Stainless Steel |
| Valve Type | 2-Way |
| Maximum Operating Temperature | 200°C |
| Thread Type | ASTM B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 5211 |
| Inlet Port Size | 3/4 in |
| Inlet Thread Standard | BSPP |
| Inlet Port Gender | Female |
| RS PRO Nitrile Rubber (NBR) Pipe Insulation x 3 mm x 15 mBrand | RS PRO |
| W.P | 1000 WOG (Water, Oil, Gas rating for the value) (PN63) |
| W.T | -20°C to 200°C (-4°F to 392°F) |
| S/steel 1 pc ball valve,3/4in BSPP F-FBrand | NEUTRAL |
| Cimberio Nickel Plated Brass, Manual Ball Valve, BSP 3/4inBrand | Cimberio |
Key Features
- Manufactured from ASTM A351-CF8M stainless steel for superior corrosion resistance.
- Threaded BSPP female inlet and outlet ports sized at 3/4 inch.
- Rated for maximum operating pressure of 68 bar and temperature range of -20°C to 200°C.
- Equipped with a durable stainless steel manual handle for quarter-turn operation.
- Complies with ISO 5211 standard ensuring actuator compatibility.
- One-piece ball valve design with screwed ends for reliable sealing.
- Includes blow-out proof stem and optional anti-static and locking safety devices.
- Suitable for applications in water treatment, heating systems, gas, steam, and chemicals.
Product Description
RS PRO A351-CF8M stainless steel threaded 2-way ball valve is designed for manual control of flow in industrial fluid handling systems. Constructed from high-grade ASTM A351-CF8M stainless steel, this valve offers excellent corrosion resistance and durability, suitable for aggressive environments and a wide range of media including water, gases, steam, chemicals, and petrochemical products. With threaded BSPP inlet and outlet ports sized at 3/4 inch, it fits securely in piping systems that require reliable shutoff and flow control.
Rated for a maximum operating pressure of 68 bar and temperature range from -20°C to 200°C (-4°F to 392°F), this valve meets the demanding requirements of heating systems, water treatment facilities, and other industrial processes. It features a one-piece quarter-turn ball design with a manual stainless steel handle for easy operation. The valve includes a blow-out proof stem to protect the operator, and option for anti-static and locking devices enhances its safety features.
The valve complies with ISO 5211 standards, ensuring compatibility with actuators where automation is needed. Manufactured using investment casting techniques, the valve components include body, retainer, and ball made from ASTM A351-CF8M stainless steel, complemented by PTFE seats and packing to provide secure sealing and extended service life.
One-piece threaded ball valve constructed of ASTM A351-CF8M stainless steel. Threaded BSPP female inlet and outlet connections at 3/4 inch size. Manual quarter-turn operation via stainless steel handle. Maximum operating pressure of 68 bar and temperature tolerance up to 200°C.
Conforms to ISO 5211 standard for valve mounting. Suitable for diverse applications including gas flow control, water treatment, and heating systems. Blow-out proof stem design and optional safety devices provide operator protection.
This valve suits industrial, manufacturing, HVAC, water treatment, and petrochemical sectors where reliable flow control and corrosion resistance are paramount. The RS PRO brand ensures quality and compatibility with a broad range of piping components. Explore more RS PRO Ball Valves and accessories on EnvMart for comprehensive industrial valve solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 68 bar.
This valve can operate within a temperature range of -20°C to 200°C.
It is constructed from ASTM A351-CF8M stainless steel, which provides excellent corrosion resistance.
This model features threaded BSPP female inlet and outlet ports sized at 3/4 inch.
The valve is operated manually with a stainless steel handle using a quarter-turn mechanism.
Yes, it complies with ISO 5211 standards, ensuring compatibility with actuators for automation.
This model includes a blow-out proof stem and options for anti-static and locking safety devices.
It is suitable for applications in water treatment, heating systems, gas, steam, and chemicals.
This valve is a 2-way ball valve, designed for controlling the flow of fluids.
The valve has a 3/4 inch inlet port size and is designed for standard piping systems.
The inlet thread standard is BSPP, conforming to ASTM B1.20.1, DIN2999, BS21 ISO7/1, and EN10226.
This model is manufactured in China.
