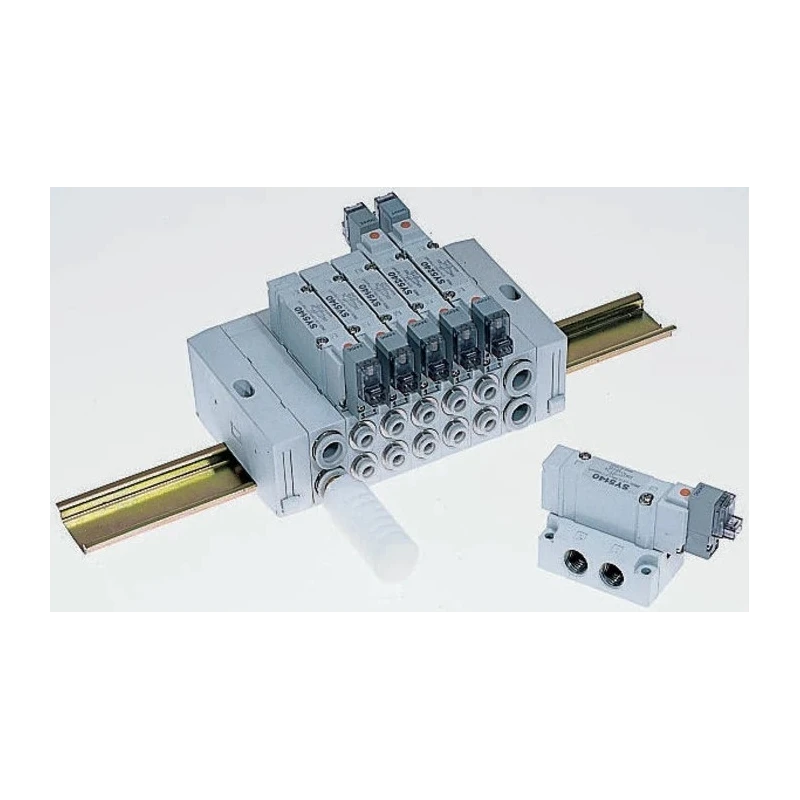

SMC Pneumatic Control Valve 5/2 Solenoid Rc Manifold 24V DC Double Solenoid Die Cast Zinc SY3000

SMC SY3240-5LOU-Q Pneumatic Control Valve is a 5/2 Solenoid Rc valve designed for industrial pneumatic control circuits, operating at 24V DC. This valve series offers a compact, lightweight design ideal for installations in restricted spaces or enclosures. The valve body utilizes die cast zinc for enhanced mechanical strength and durability.

Mounted via manifold connections, the valve provides 5 ports and features double solenoid actuation type allowing for precise directional control with 2 positions. It is designed to operate with compressed filtered air systems, suitable for both lubricated and non-lubricated air, functioning efficiently within an operating temperature range from -10°C to 50°C.

This model supports pressures up to 0.7 MPa and pilot pressures from 2.5 to 7 bar. The maximum flow rate reaches 294.5 NL/min, making it compatible with various industrial automation processes. The valve seal is made of durable nitrile rubber (NBR) to ensure tight sealing and long service life, exceeding 50 million cycles.

The solenoid power consumption is low, at 0.4 W, allowing for direct PLC control without additional power requirements. It complies with RoHS environmental standards and does not have hazardous area certification. The valve includes a non-locking manual override feature and an L type pinch plug connection, where plug connectors must be ordered separately.

Applications span industrial automation, manufacturing, fluid power systems, and pneumatic process control. The SY3000 Series’s enhanced flow capacity and compact footprint make it suitable for use in commercial and industrial environments requiring reliable pneumatic directional control valves.

The valve body is constructed from durable die cast zinc. The valve features a manifold mount type for easy installation. It provides 5 ports and functions as a 5/2 valve with two positions. The solenoid type is double solenoid, ensuring efficient actuation.

Maximum operating pressure is rated at 0.7 MPa with a maximum flow rate of 294.5 NL/min. Seal material is nitrile rubber (NBR) providing reliable sealing performance. The valve operates safely between -10°C and 50°C ambient temperatures.

It consumes low power at 0.4 W, compatible with PLC direct control. This model complies with RoHS standards for environmental safety. Ideal for compressed filtered air pneumatic systems both lubricated and non-lubricated.
