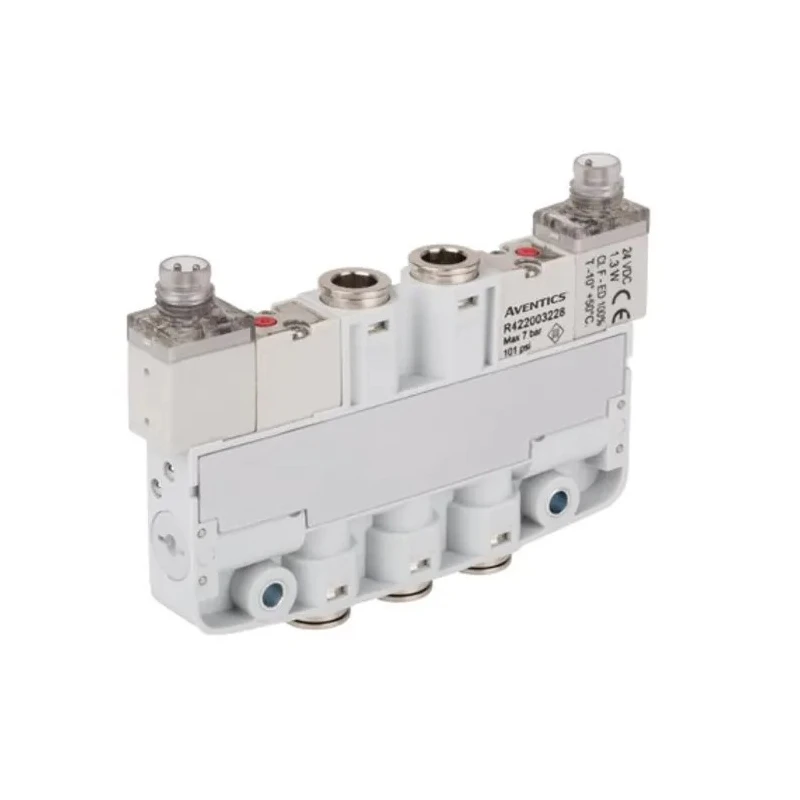

EMERSON ? AVENTICS Pneumatic Solenoid Pilot-Operated Control Valve Electro Pneumatic Control LS04-AF 24V dc 1.3W R422103585
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? AVENTICS |
| Body Material | Polyoxymethylene |
| Maximum Operating Pressure | 7 bar |
| Height | 53.7mm |
| Length | 82.1mm |
| Model | R422103585 |
| Width | 10.8mm |
| Mount Type | Screw |
| Electrical Connection | Plug,M8,3-pin |
| Series | LS04-AF |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | M3 |
| Seal Material | Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid/Air |
| Manual override | with detent |
| Maximum Flow Rate | 180L/min |
| Standards/Approvals | EN/IEC |
| Connection Thread Standard | Metric |
| Minimum Pilot Pressure | 3bar |
| Valve Function | Electro Pneumatic Control |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1.3W |
| Compressed air connection output | Ø4,Ø6 |
| Pilot | internal |
Key Features
- Constructed with polyoxymethylene body material ensuring durability.
- Features a single solenoid with rubber seals and screw mounting type for secure installation.
- Designed for compressed air connections output of Ø4 and Ø6 mm.
- Operates effectively within a temperature range of -10°C to 50°C.
- Provides a maximum operating pressure of 7 bar and maximum flow rate of 180 L/min.
- Includes internal pilot and manual override with detent for controlled operation.
- Equipped with a 3-pin M8 plug electrical connection for reliable power supply.
- Complies with EN/IEC standards for safety and quality assurance.
Product Description
EMERSON ? AVENTICS R422103585 Pneumatic Solenoid Pilot-Operated Control Valve is an advanced electro Pneumatic Control Valve designed for precise fluid power management. Featuring a durable polyoxymethylene body and rubber seals, this valve offers reliable performance in industrial automation and pneumatic systems. The solenoid actuation with 24V dc voltage and 1.3W power consumption ensures efficient electrical control.
The valve includes a screw mount type for secure installation in pneumatic assemblies and operates with a maximum pressure of 7 bar, handling air flows up to 180 L/min. It is engineered to work reliably in a temperature range from -10°C to 50°C, ensuring versatility across various operating environments.
Compressed air connections output sizes of Ø4 and Ø6 mm accommodate standard pneumatic fittings. The valve has an internal pilot operation with manual override featuring a detent for additional control flexibility. Its electrical interface includes a plug with M8 3-pin configuration, ensuring stable and easy connectivity.
This product adheres to EN/IEC standards, underscoring its safety and conformity for industrial applications. With dimensions 10.8 mm in width, 53.7 mm in height, and 82.1 mm in length, it is compact and space-efficient, suitable for integration in complex pneumatic control systems.
Durable polyoxymethylene body and rubber seals ensure long-lasting use. Single solenoid actuation with 24V dc voltage and low power consumption of 1.3W. Maximum operating pressure of 7 bar with flow rate capacity of 180 L/min.
Manual override with detent and internal pilot for precise control. Compatible with Ø4 and Ø6 mm compressed air connection outputs. Compact dimensions enable flexible installation in pneumatic assemblies. Electrical connection through M8 3-pin plug for reliable power supply.
Designed to operate efficiently in temperatures between -10°C and 50°C. Compliant with EN/IEC safety and quality standards. Manufactured in France, representing high-quality industrial standards.
This valve is ideal for use in industrial pneumatic systems, fluid power control, automation equipment, and manufacturing applications requiring precise electro pneumatic actuation. Its robust construction and certified standards make it a dependable choice for enhancing operational efficiency and control accuracy.
Explore more high-quality pneumatic valves and control components available at EnvMart to suit your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 7 bar.
It operates at 24V dc with a power consumption of 1.3W.
The valve has dimensions of 10.8 mm in width, 53.7 mm in height, and 82.1 mm in length.
It is equipped with a 3-pin M8 plug electrical connection for reliable power supply.
This unit operates effectively within a temperature range of -10°C to 50°C.
It accommodates compressed air connections of Ø4 and Ø6 mm.
Yes, it includes a manual override with a detent for controlled operation.
The body is constructed from polyoxymethylene, ensuring durability.
This model features three ports.
It complies with EN/IEC standards for safety and quality assurance.
The maximum flow rate is 180 L/min.
It uses solenoid actuation with internal pilot operation.
