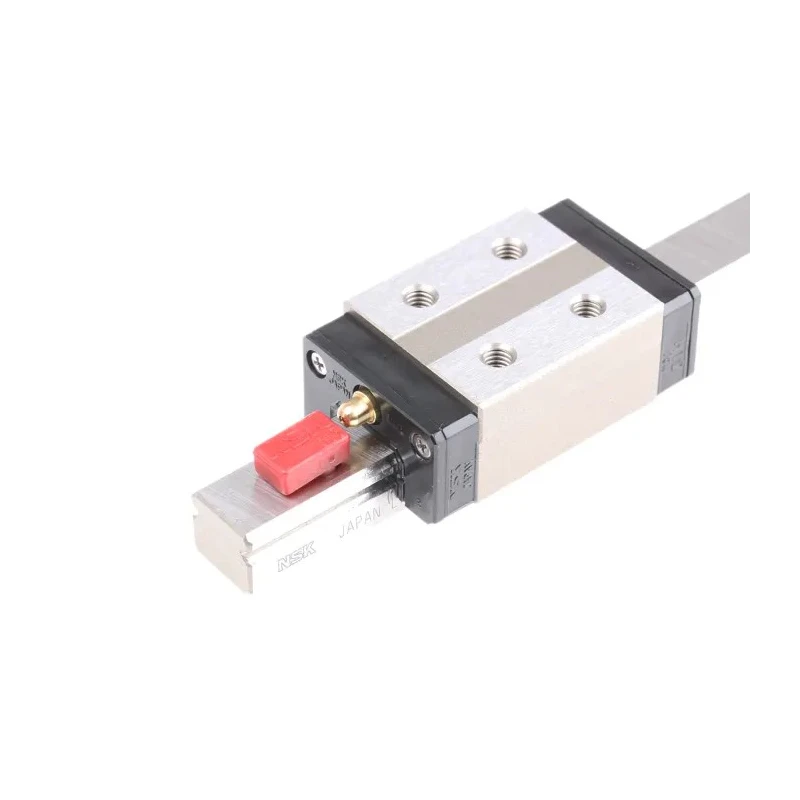

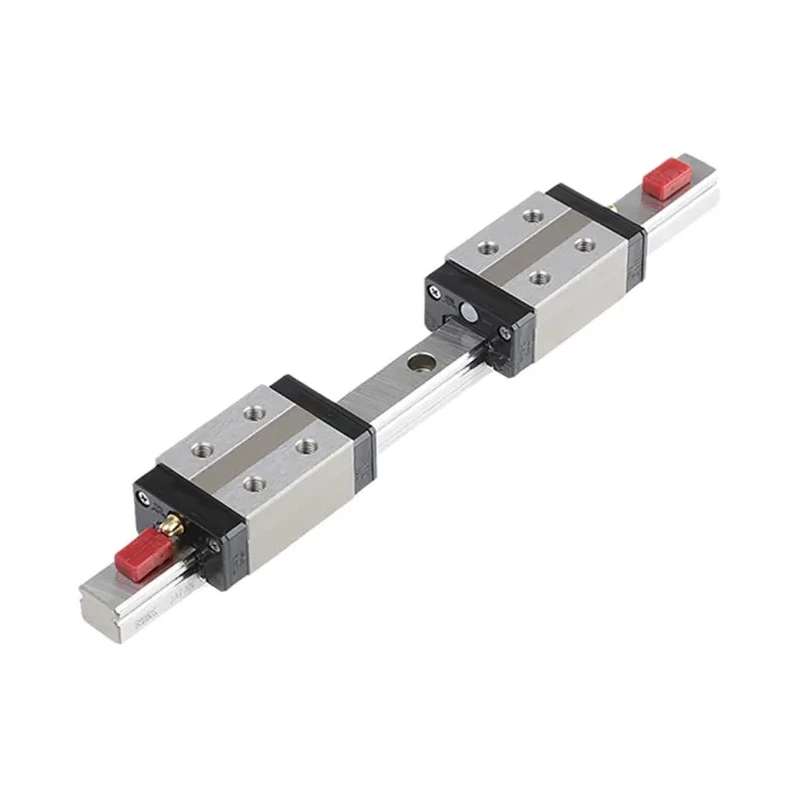

NSK Linear Guide , LH Series Carbon Steel Rail 190mm Length 12mm Width 27mm Carriage Width 45mm Carriage LH120190ANK2K99PN1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | NSK |
| Model | LH120190ANK2K99PN1 |
| Series | LH |
| Static Load Rating | 9020N |
| Dynamic Load Rating | 4310N |
| Rail Width | 12mm |
| Rail Length | 190mm |
| Carriage Length | 45mm |
| Carriage Width | 27mm |
| Rail Material | Carbon Steel |
| NSK Linear Guide LH120310ANK2K99PN1, LHBrand | NSK |
Key Features
- Compact LH series linear guide with self-aligning properties.
- Rail length measures 190mm with a width of 12mm for precision fit.
- Carriage features 27mm width and 45mm length ensuring stability in motion.
- Dynamic load rating of 4310N and static load capacity of 9020N.
- Constructed with corrosion-resistant carbon steel rail suitable for industrial environments.
- Manufactured in Japan ensuring high quality standards.
- Design supports high impact loads and maintains rail alignment under stress.
Product Description
NSK LH120190ANK2K99PN1 Linear Guide of the LH Series offers a compact design with a pre-fitted carriage optimized for applications requiring high vertical load capacity and durability. It features a 190mm long carbon steel rail with a width of 12mm, paired with a carriage measuring 27mm by 45mm. This linear guide is engineered for precision linear motion in demanding industrial and mechanical environments.
The guide includes a self-aligning property that allows it to accommodate misalignments in the bearing system while maintaining smooth performance. Its rail is made from carbon steel, which is highly resistant to corrosion and able to withstand harsh conditions. The carriage securely retains the balls due to its design, ensuring consistent operation even during carriage removal.
With a dynamic load rating of 4310N and static load rating of 9020N, this linear guide supports significant loads, making it well-suited for manufacturing, automation equipment, construction machinery, and laboratory instruments requiring linear motion components.
Produced in Japan, this product meets high-quality manufacturing standards and reliability expected in industrial tool components. The guide is part of NSK's LH series, designed for compactness and robustness with minimal maintenance needs.
Compact LH Series design with pre-fitted carriage for convenience. Carbon steel rail with high corrosion resistance and durability. Self-aligning mechanism reducing misalignment impacts. High dynamic load rating of 4310N for demanding industrial use.
Strong static load capacity of 9020N ensuring stability. Dimensions optimized for precise linear motion: 190mm rail length, 12mm rail width, 27mm carriage width, and 45mm carriage length. Ideal for industrial, laboratory, mechanical machinery, and automation system use cases.
Explore the NSK category on EnvMart for a wide range of high-quality linear guides and motion components designed for various industrial and engineering applications.
Explore more products in our Linear Guide Rail category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this linear guide is 4310N.
This model has a static load capacity of 9020N.
The rail measures 190mm in length and 12mm in width, while the carriage has a length of 45mm and a width of 27mm.
The rail is constructed from carbon steel, which offers high corrosion resistance.
This linear guide is manufactured in Japan, ensuring high-quality standards.
It is suitable for applications in manufacturing, automation equipment, construction machinery, and laboratory instruments requiring linear motion components.
Yes, this model includes a self-aligning mechanism that accommodates misalignments in the bearing system while maintaining smooth performance.
Key features include a compact design, pre-fitted carriage, high dynamic and static load ratings, and corrosion-resistant material.
The rail width is 12mm.
The carriage design securely retains the balls, ensuring consistent operation even during carriage removal.
The compact design optimizes it for applications requiring high vertical load capacity and durability in limited spaces.
The load ratings indicate its ability to support significant loads, making it suitable for demanding industrial use.
