Lapp UNITRONIC LiYCY Series Data Cable 20 Pairs 20 Cores 0.5 mm² Cross Section 100 m Length 250V Grey PVC Sheath 0034620
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.5 mm² |
| Model | 0034620 |
| Cable Length | 100m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 12.1mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 20 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 16 |
| Core Strands | 16 x 0.20mm |
| Size of Strands | 0.20mm |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 20 |
| • Operating temperature with fixed installation | -40°C to +80°C |
Key Features
- The cable contains 20 pairs (20 cores) with a cross-sectional area of 0.5 mm² per conductor.
- Features a grey polyvinyl chloride (PVC) sheath that is flame retardant, suitable for fixed installation.
- Operating voltage is rated at 250V with screened protection for minimized electrical interference.
- The cable length is 100 meters with a compact 12.1mm outside diameter, suitable for space-saving installations.
- Conductor strands consist of 16 strands of 0.20 mm bare copper wires for enhanced flexibility.
- Operating temperature ranges from -40°C to +80°C with occasional flexing rated from -5°C to +70°C.
- Core insulation with PVC base and braid shield made from tinned wires ensure signal integrity.
- Ideal for applications in communications, process control, RS232 interfaces, and signal broadcast.
Product Description

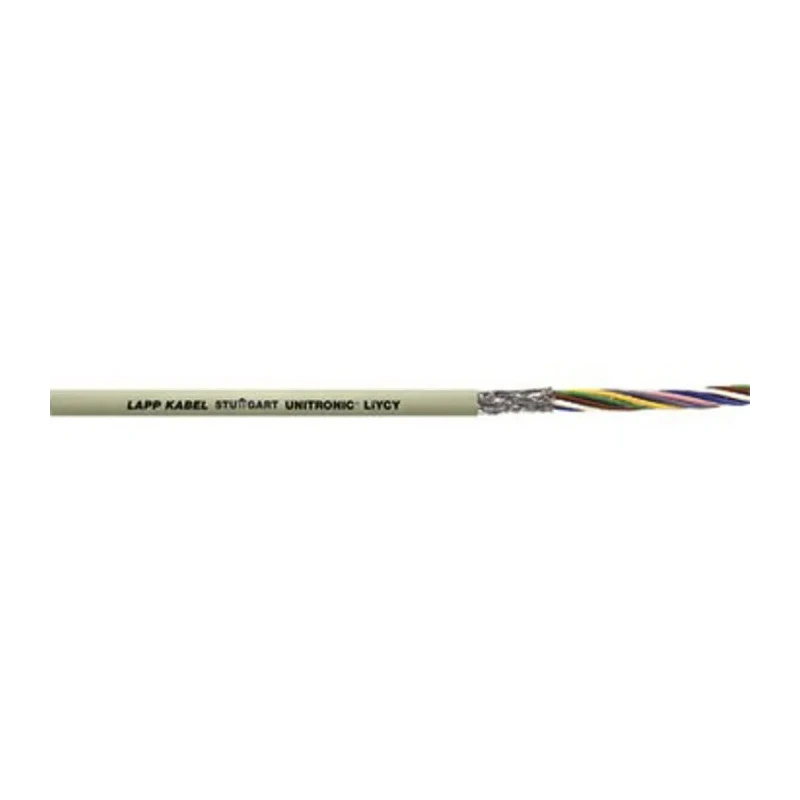

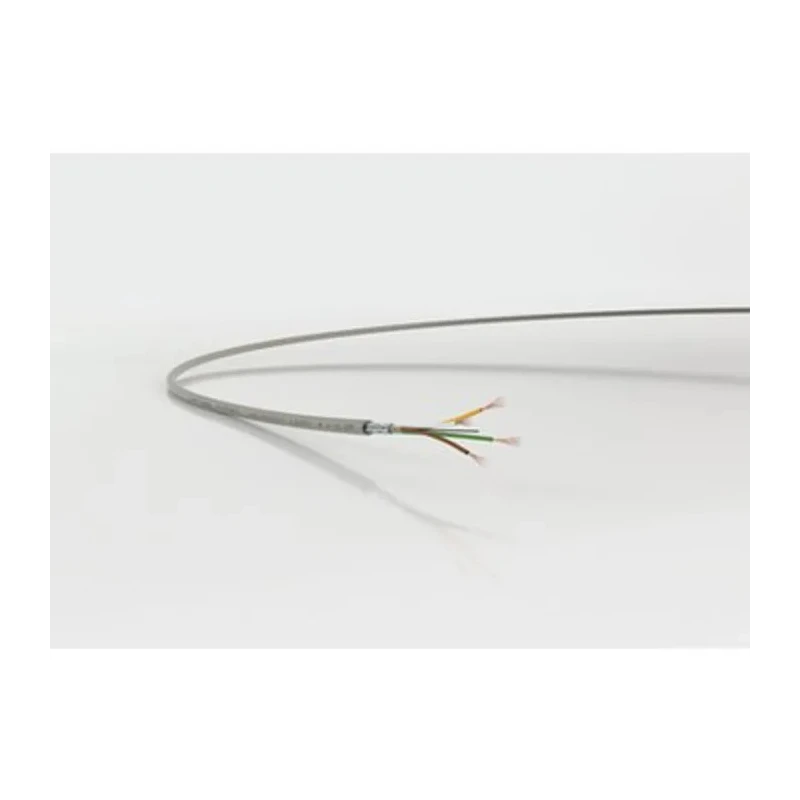

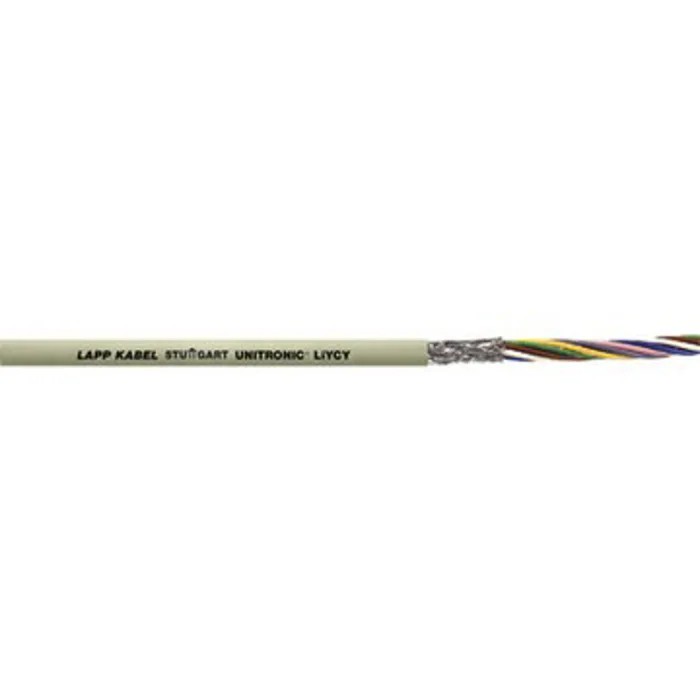

Lapp 0034620 UNITRONIC LiYCY Series Data Cable is engineered for precision low-frequency signal and data transmission in industrial, automation, and electronic control equipment.
This screened cable comprises 20 pairs (20 cores) of stranded bare copper conductors with a cross-sectional area of 0.5 mm² each, arranged in layers with PVC base insulation to ensure electrical safety and durability.
The grey PVC sheath is flame retardant according to IEC 60332-1-2, providing secure installation capability in dry or damp environments. The cable measures 12.1 mm in outside diameter and spans 100 meters in length, facilitating fixed installation in constrained spaces.
The 16 strand conductors of 0.20 mm diameter combine flexibility and mechanical strength, optimized for industrial communication protocols including RS 232, process control, signal, broadcast, and control systems.
Operating voltage rating is 250 V, with temperature ratings from -40°C to +80°C for fixed installations and from -5°C to +70°C when flexing occasionally. The tinned wire braid shielding minimizes electrical noise and external interference.
The cable uses DIN colour coding for simplified core identification. It is compliant with CE and RoHS directives, meeting strict industrial safety standards. Flame retardant characteristics in accordance with VDE 0472, part 804, test B ensure fire safety.
The construction and material choices make this cable suitable for industrial, manufacturing, automation, signal transmission, and broadcasting use cases. Lapp recommends compatible low-resistance screen cable glands for optimal shielding performance.
This product is manufactured in Germany and is supplied as a 100-meter reel suitable for fixed installation in electrical and automation systems. Explore a wide range of cables and wires at EnvMart to find complementary products for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 80°C when used in fixed installations.
This cable has a voltage rating of 250V, making it suitable for various electrical applications.
The cable contains 20 cores, arranged in 20 pairs, each with a cross-sectional area of 0.5 mm².
The total length of this data cable is 100 meters, suitable for fixed installations.
The cable features a grey polyvinyl chloride (PVC) sheath and stranded bare copper conductors, ensuring flexibility and electrical safety.
The outside diameter of this model is 12.1 mm, allowing for space-saving installations.
The cable uses PVC base insulation along with a braid shield made from tinned wires to ensure signal integrity and minimize interference.
When flexing occasionally, the cable is rated for temperatures from -5°C to +70°C.
Yes, this cable is compliant with CE and RoHS directives, meeting strict industrial safety standards.
This model is ideal for applications in communications, process control, RS232 interfaces, and signal broadcasting.
Each conductor consists of 16 strands of 0.20 mm diameter bare copper wires, enhancing flexibility.
The cable is screened, which helps to minimize electrical noise and external interference during operation.
