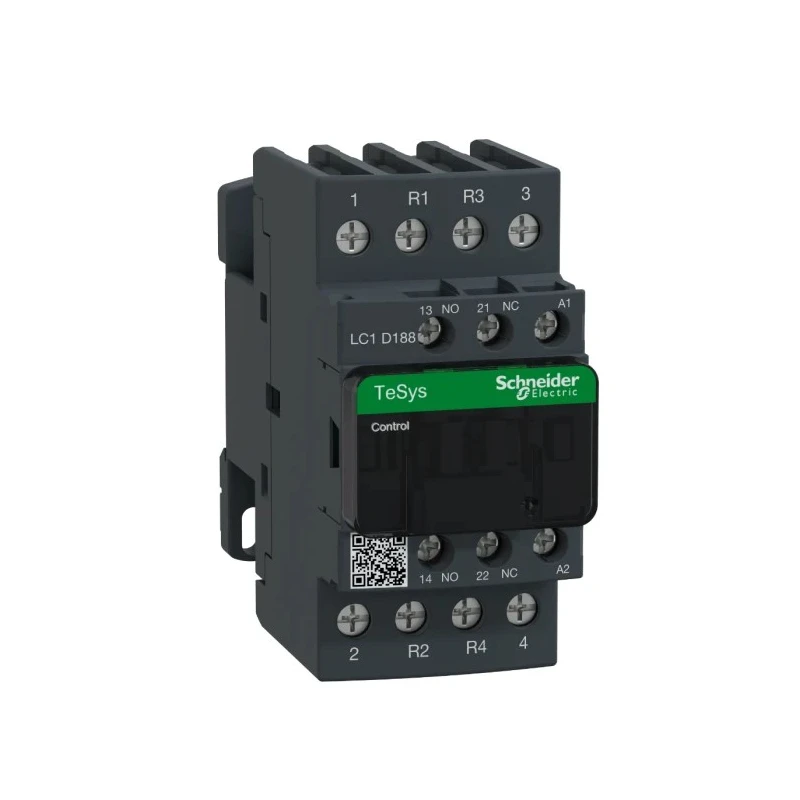

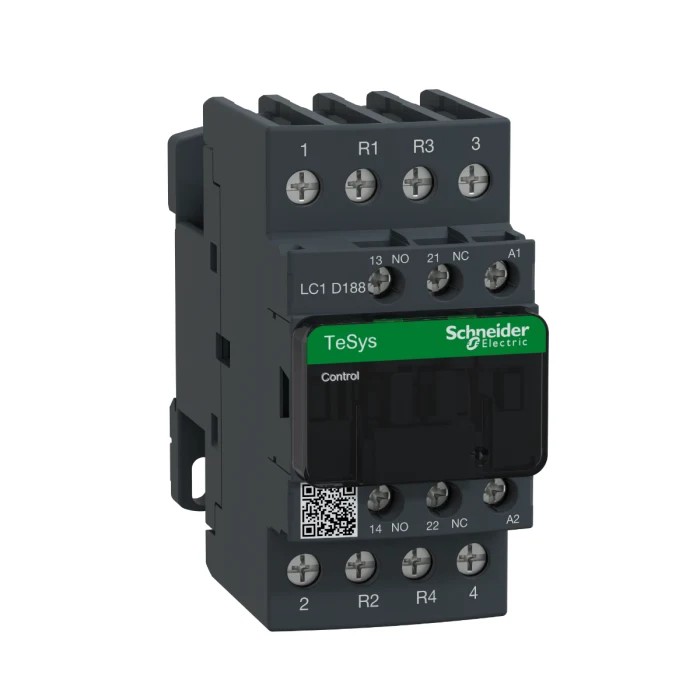

Schneider Electric LC1D Contactor, 24V AC Coil, 4-Pole, 18A, 2.5W Power Rating, 2 NO/2 NC, 690V AC LC1D188B7

Schneider Electric LC1D188B7 is a high-quality TeSys D Contactor designed for industrial and commercial applications requiring reliable switching of motors and resistive loads. This model features a 24V AC coil with a power rating of 2.5 W, designed for effective motor control and resistive load management.

The contactor has a 4-pole design with 2 normally open (NO) and 2 normally closed (NC) contacts, providing flexible control configurations. It supports contact voltages up to 690V AC and contact currents of 18A, with an operational current rating of 32A, ensuring robust performance for various motor and load control applications.

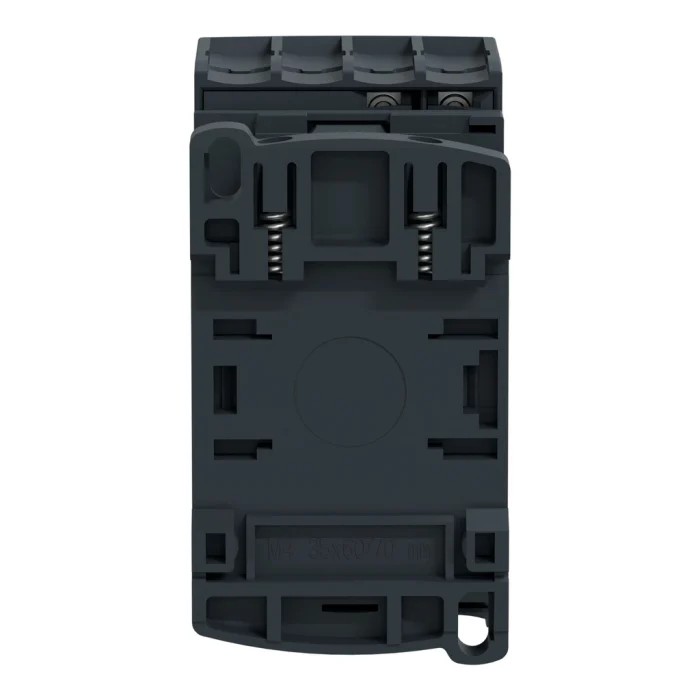

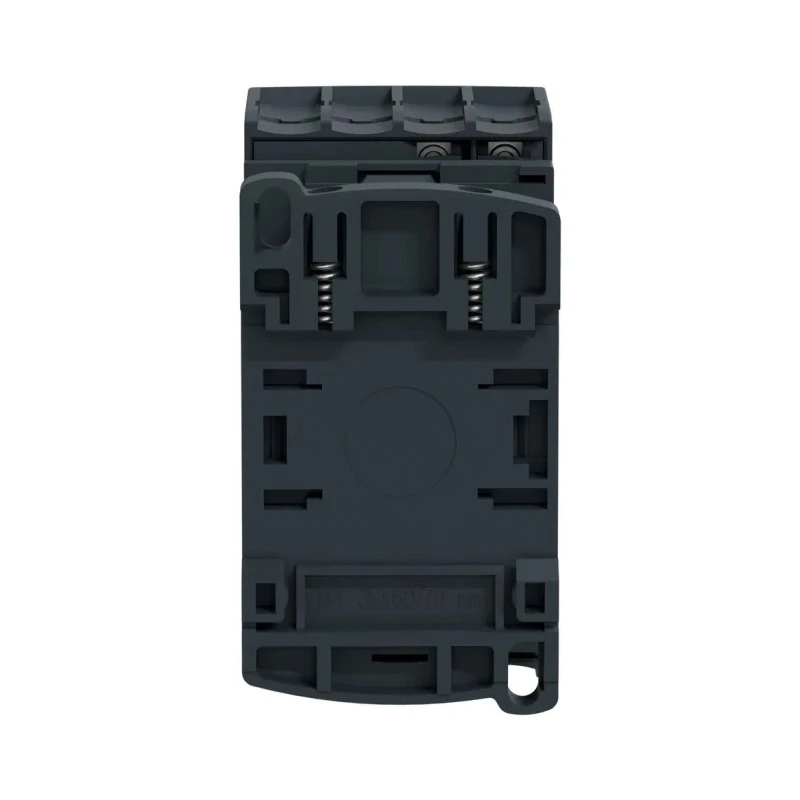

Constructed for durability, the LC1D188B7 can function reliably within temperature ranges from -5°C up to 60°C. The device is equipped with screw clamp terminals that offer secure and easy electrical connections. Its compact size of 45mm width and mounting capability on standard DIN rails make it ideal for space-conscious panel assemblies.

This contactor complies with multiple safety and quality standards, including IEC, UL, CSA, CCC, EAC, and meets RoHS and REACh green premium criteria for environmentally responsible products. The auxiliary contacts include one normally open and one normally closed, with the NC contact mirror certified to enhance safety and operational visibility.

Applications for this contactor include motor starters, resistive load switching, and control of elevator, compressor, pump, mixer, air conditioning units, and other electrical equipment. The device is engineered to handle operating rates up to 3600 cycles/hour and withstand mechanical shocks and vibrations typically found in industrial environments.

Operates with a 24V AC coil voltage and power rating of 2.5 W at 24V AC. Features 4 poles with a normal state configuration of 2 normally open and 2 normally closed contacts. Designed with screw clamp terminals for reliable electrical connections.

Suitable for resistive load applications and motor control with an operational current of 32A. Compact design with DIN rail mounting to fit standard control panels. Operates within a temperature range of -5°C to 60°C ensuring durability in industrial environments.

Meets multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS compliance. Includes one normally open and one normally closed auxiliary contact built-in for enhanced control. Explore the wide range of Schneider Electric automation and control gear products on EnvMart for reliable and efficient industrial solutions.
